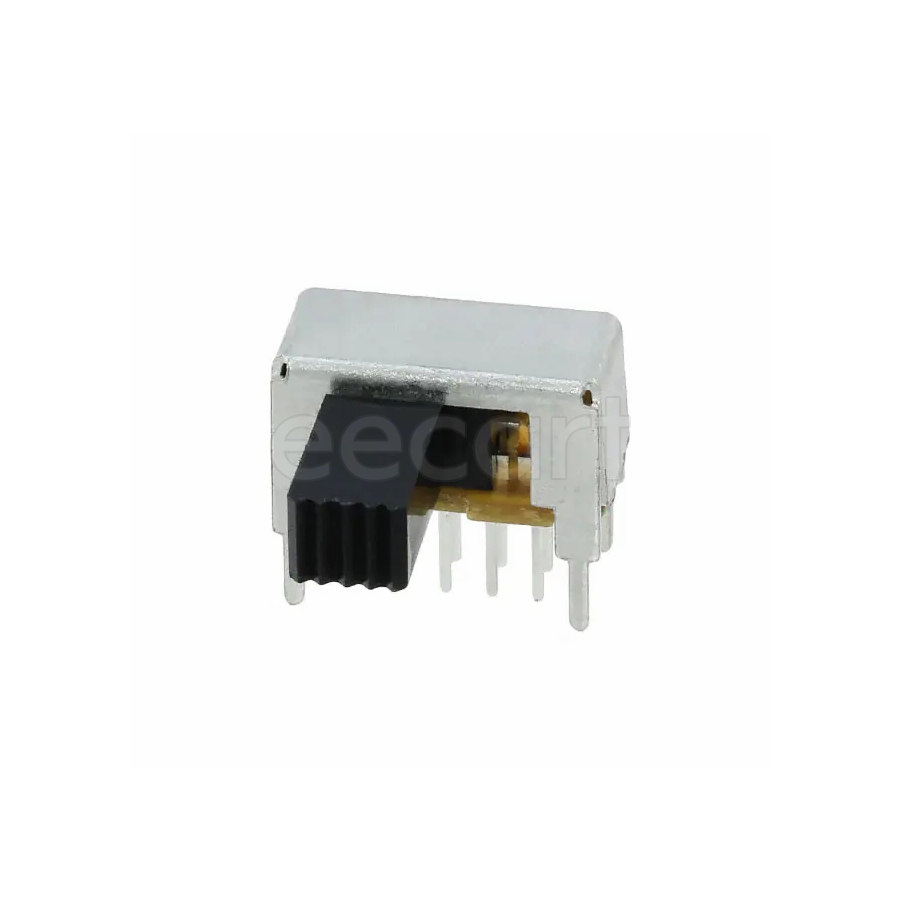

EG2319
Manufacturer:
E-Switch
Mfr.Part #:
EG2319
Datasheet:
Description:
Slide Switches Through Hole ON - ON - ON DP3T Current Rating:500 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Length | 13.8 mm |
| Width | 8.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 6.5 mm |
| Circuit Type | DP3T |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper Alloy |
| Current Rating | 500 mA |
| Orientation | Right Angle |
| Actuator Length | 8.8 mm |
| Throw Configuration | DP3T |
| Switch Function | ON - ON - ON |
| Switch Travel | 2 mm |
| Contact Current Rating | 500 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 341
Distributors
pcbx
pcbxUnit Price$0.70740
Ext.Price$0.70740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70740 | $0.70740 |
| 10 | $0.60193 | $6.01930 |
| 25 | $0.55911 | $13.97775 |
| 50 | $0.52793 | $26.39650 |
| 100 | $0.49849 | $49.84900 |
| 300 | $0.46645 | $139.93500 |
| 500 | $0.43647 | $218.23500 |
| 1000 | $0.41327 | $413.27000 |
| 3000 | $0.38997 | $1169.91000 |
| 5000 | $0.36798 | $1839.90000 |
