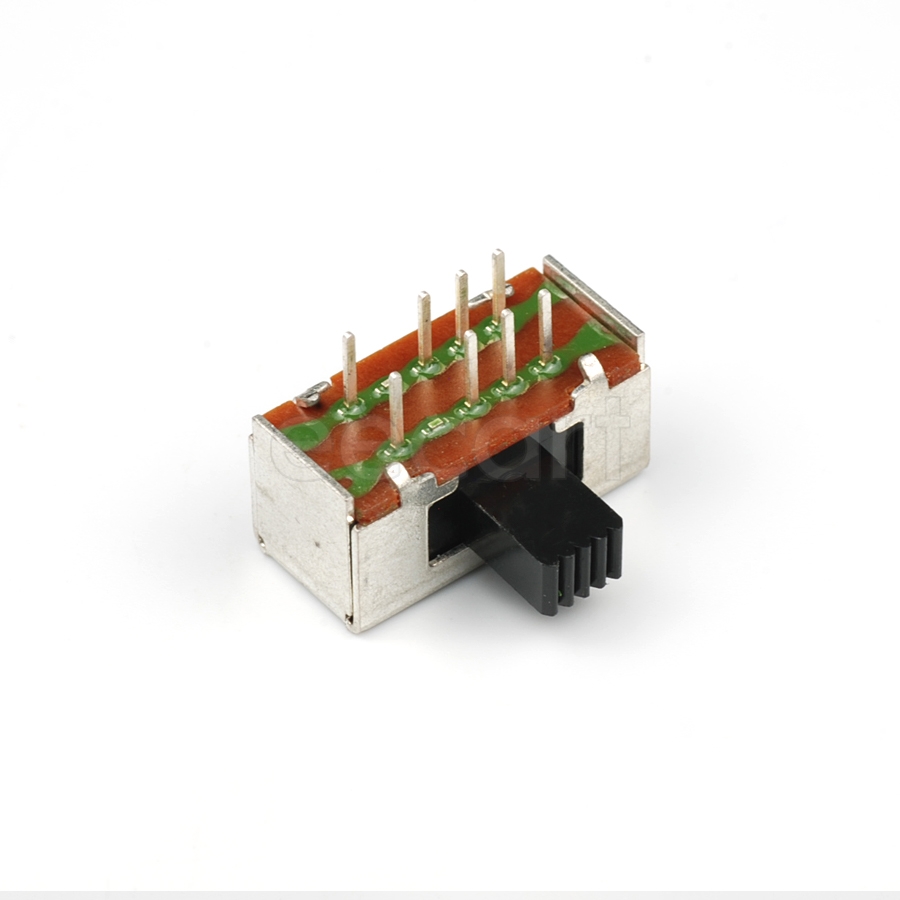

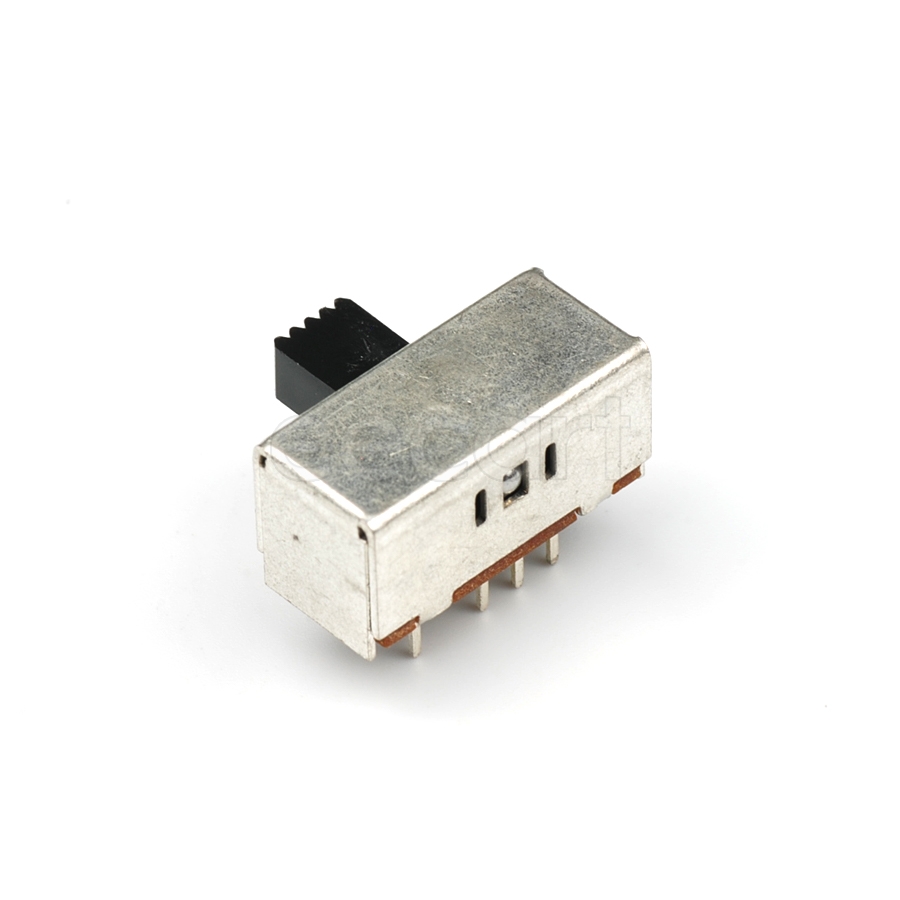

EG2322
Manufacturer:
E-Switch
Mfr.Part #:
EG2322
Datasheet:
Description:
Slide Switches Through Hole ON - ON - ON DP3T Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 7.11 mm |
| Width | 10 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Height | 9.3 mm |
| Circuit Type | DP3T |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Orientation | Right Angle |
| Actuator Length | 7 mm |
| Throw Configuration | DP3T |
| Switch Function | ON - ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2.5 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 785
Distributors
pcbx
pcbxUnit Price$0.70740
Ext.Price$0.70740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70740 | $0.70740 |
| 10 | $0.60193 | $6.01930 |
| 25 | $0.55911 | $13.97775 |
| 50 | $0.52664 | $26.33200 |
| 100 | $0.49605 | $49.60500 |
| 300 | $0.46724 | $140.17200 |
| 500 | $0.44010 | $220.05000 |
| 1000 | $0.41454 | $414.54000 |
| 3000 | $0.39046 | $1171.38000 |
| 5000 | $0.36779 | $1838.95000 |
