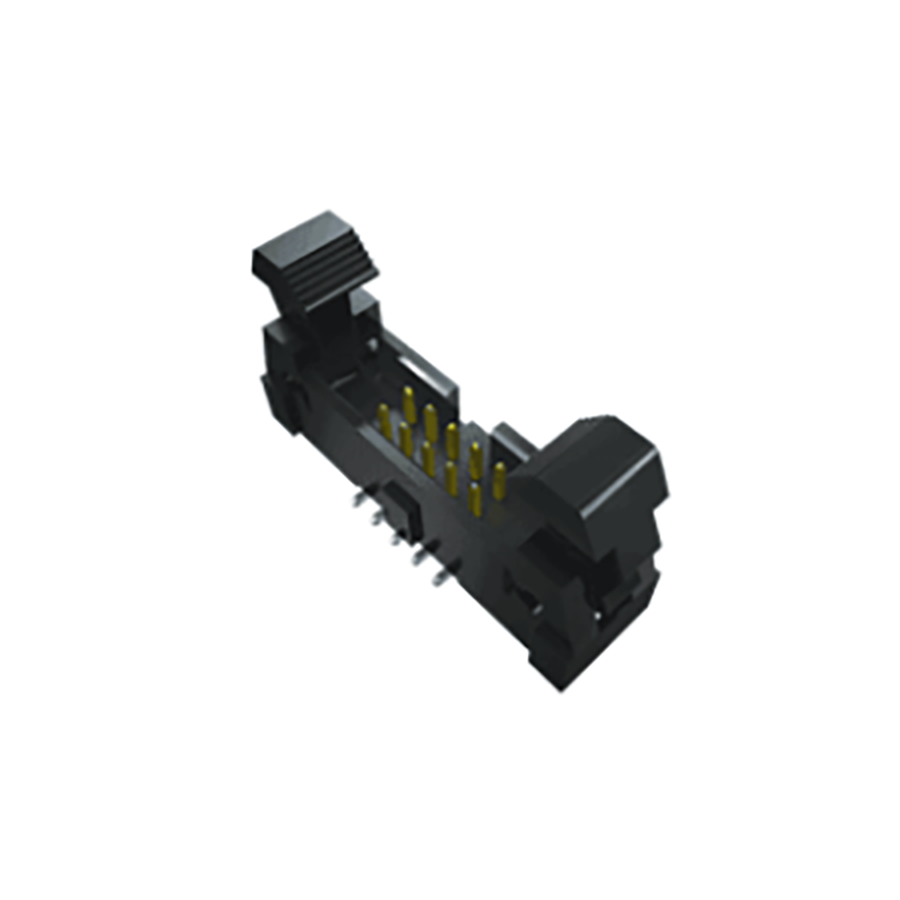

EHT-105-01-S-D-SM-LC
Manufacturer:
Samtec
Mfr.Part #:
EHT-105-01-S-D-SM-LC
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 23.79 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 8.89 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polymer |
| Fastening Type | Latch |
| Housing Color | Black |
| Contact Mating Length | 3.048 mm |
| Mating Post Length | 3.05 mm |
Stock: 97
Distributors
pcbx
pcbxUnit Price$5.98878
Ext.Price$5.98878
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.98878 | $5.98878 |
| 10 | $5.53823 | $55.38230 |
| 25 | $4.58805 | $114.70125 |
| 50 | $3.80089 | $190.04450 |
| 100 | $3.14878 | $314.87800 |
| 300 | $2.60855 | $782.56500 |
| 500 | $2.16101 | $1080.50500 |
| 1000 | $1.79023 | $1790.23000 |
