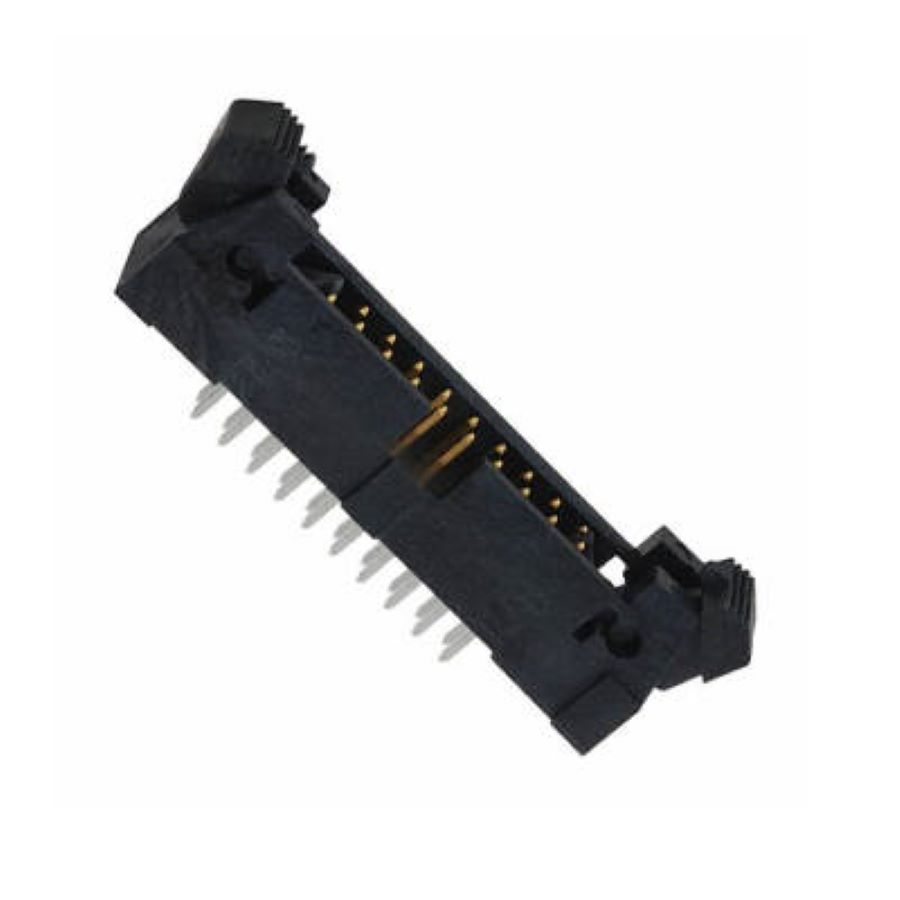

EHT-110-01-S-D
Manufacturer:
Samtec
Mfr.Part #:
EHT-110-01-S-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 33.79 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 7.62 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 20 |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Fastening Type | Latch |
| Housing Color | Black |
| Contact Mating Length | 3.048 mm |
| Mating Post Length | 3.05 mm |
| Termination Post Length | 2.9 mm |
Stock: 1641
Distributors
pcbx
pcbxUnit Price$5.13813
Ext.Price$5.13813
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.13813 | $5.13813 |
| 10 | $4.74999 | $47.49990 |
| 25 | $4.48667 | $112.16675 |
| 50 | $3.59281 | $179.64050 |
| 100 | $2.87703 | $287.70300 |
| 300 | $2.30385 | $691.15500 |
| 500 | $1.84487 | $922.43500 |
| 1000 | $1.47732 | $1477.32000 |
