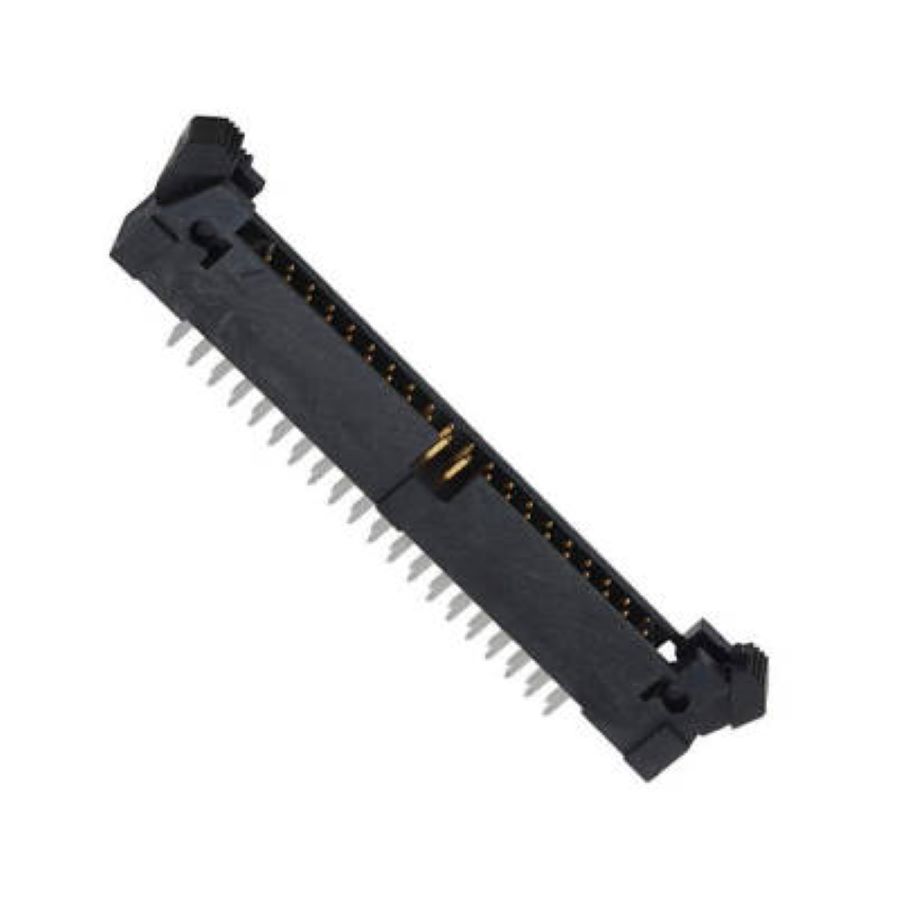

EHT-120-01-S-D
Manufacturer:
Samtec
Mfr.Part #:
EHT-120-01-S-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:40 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 53.79 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 40 |
| Packaging | Tube |
| Depth | 7.62 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 40 |
| Connector Type | Header |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Fastening Type | Latch |
| Housing Color | Black |
| Contact Mating Length | 3.048 mm |
| Mating Post Length | 3.05 mm |
| Termination Post Length | 2.9 mm |
Stock: 384
Distributors
pcbx
pcbxUnit Price$8.84852
Ext.Price$8.84852
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.84852 | $8.84852 |
| 10 | $8.37917 | $83.79170 |
| 25 | $7.88954 | $197.23850 |
| 50 | $7.42848 | $371.42400 |
| 100 | $6.25809 | $625.80900 |
| 300 | $4.91980 | $1475.94000 |
| 500 | $3.86770 | $1933.85000 |
| 1000 | $2.68448 | $2684.48000 |
