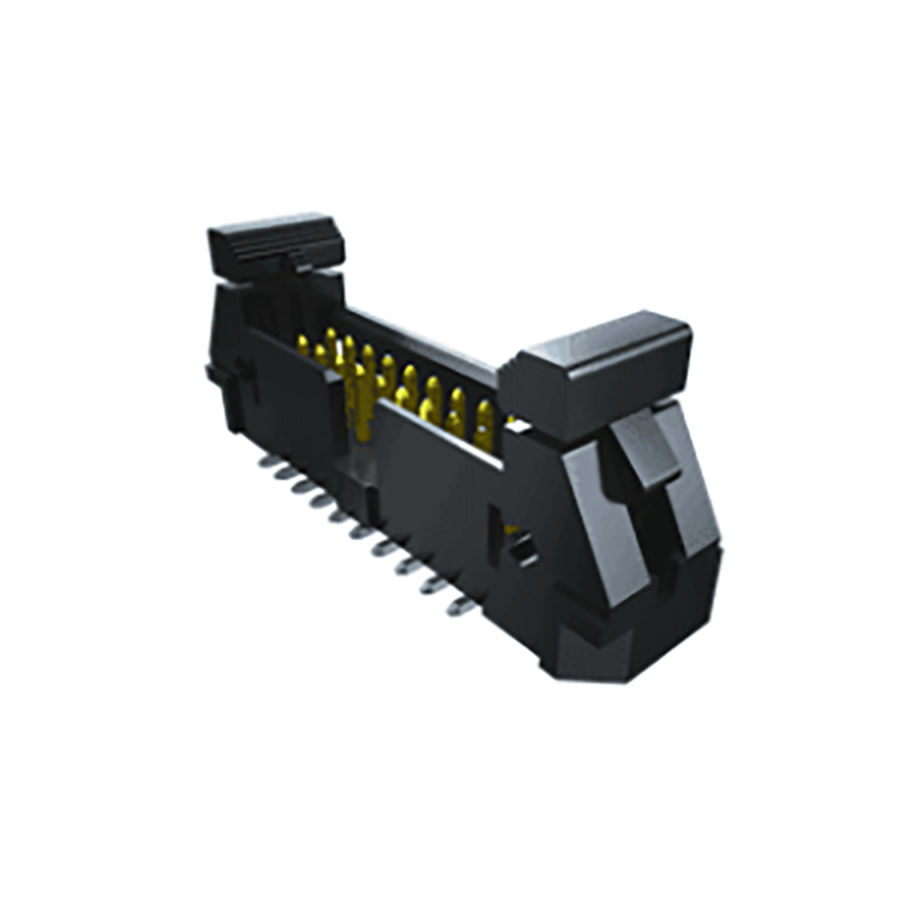

EJH-105-01-F-D-TH
Manufacturer:
Samtec
Mfr.Part #:
EJH-105-01-F-D-TH
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 30.33 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 9.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Fastening Type | Latch |
| Contact Mating Length | 5.715 mm |
| Mating Post Length | 5.7 mm |
| Termination Post Length | 3.05 mm |
Stock: 78
Distributors
pcbx
pcbxUnit Price$2.63490
Ext.Price$2.63490
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.63490 | $2.63490 |
| 10 | $2.32950 | $23.29500 |
| 25 | $2.05950 | $51.48750 |
| 50 | $1.82079 | $91.03950 |
| 100 | $1.60975 | $160.97500 |
| 300 | $1.42317 | $426.95100 |
| 500 | $1.25822 | $629.11000 |
| 1000 | $1.11239 | $1112.39000 |
| 3000 | $0.98346 | $2950.38000 |
| 5000 | $0.86946 | $4347.30000 |
