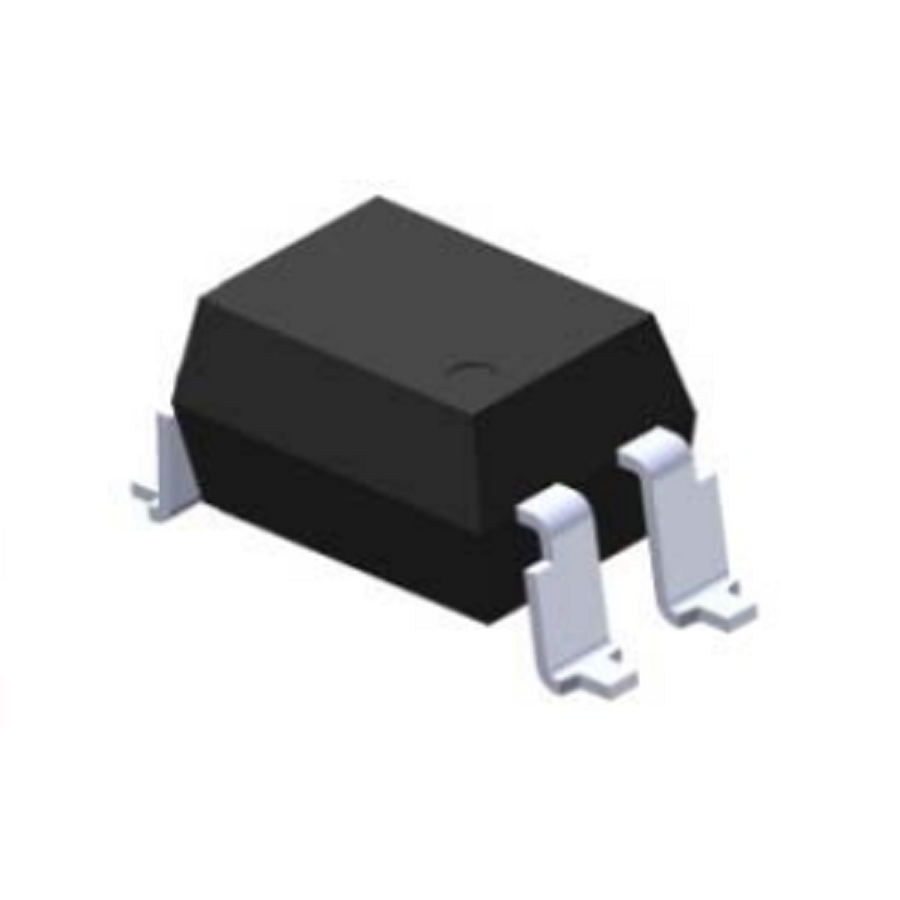

EL817S1(A)(TU)
Manufacturer:
Everlight
Mfr.Part #:
EL817S1(A)(TU)
Datasheet:
Description:
Optocouplers SMD-4, Gull Wing SMD/SMT number of channels:1 Transistor 60 mA 1.4 V Rise Time:18 µs Fall Time :18 µs
| Parameter | Value |
|---|---|
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Bulk |
| RoHS | Compliant |
| Output Voltage | 35 V |
| Forward Current | 60 mA |
| Forward Voltage | 1.4 V |
| Output Type | Transistor |
| Max Power Dissipation | 200 mW |
| Number of Channels | 1 |
| Max Collector Current | 50 mA |
| Fall Time | 18 µs |
| Rise Time | 18 µs |
| Collector Emitter Voltage (VCEO) | 200 mV |
| Current Transfer Ratio | 600 % |
| Output Current per Channel | 50 mA |
| Max Input Current | 60 mA |
| Collector Emitter Saturation Voltage | 200 mV |
Stock: 4616
Distributors
pcbx
pcbxUnit Price$0.08256
Ext.Price$0.08256
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08256 | $0.08256 |
| 10 | $0.07287 | $0.72870 |
| 50 | $0.06432 | $3.21600 |
| 100 | $0.05608 | $5.60800 |
| 500 | $0.04889 | $24.44500 |
| 1000 | $0.04480 | $44.80000 |
| 3000 | $0.04106 | $123.18000 |
