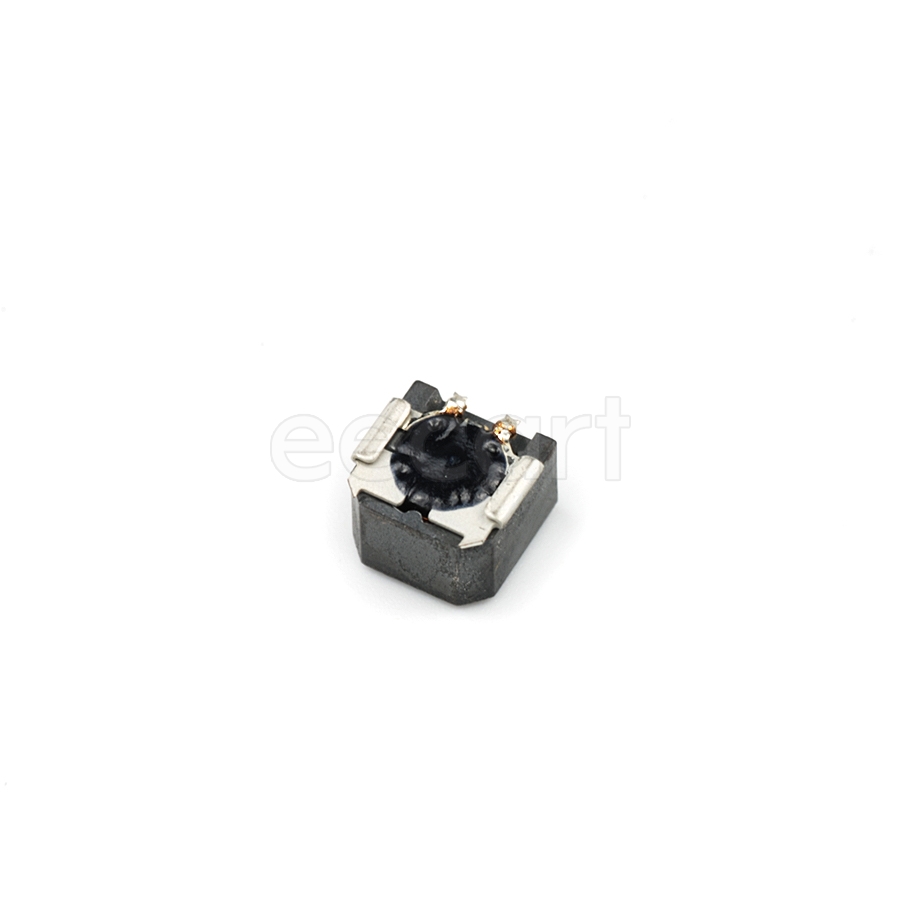

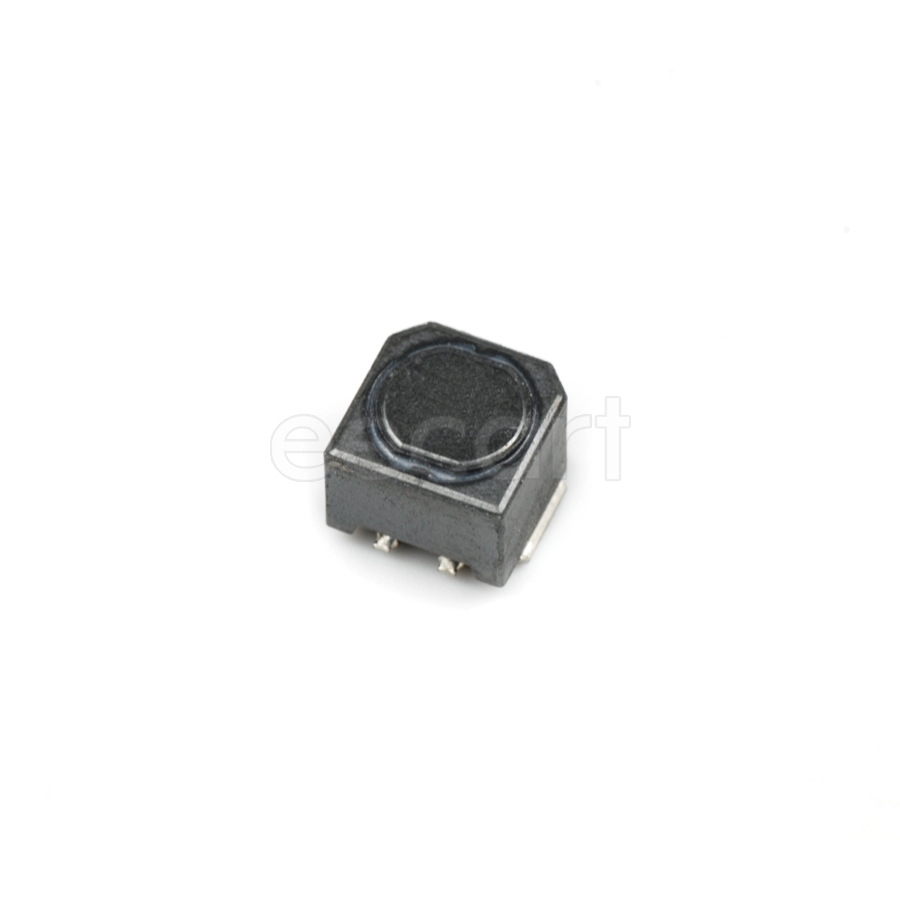

ELL-6UH181M
Manufacturer:
Panasonic
Mfr.Part #:
ELL-6UH181M
Datasheet:
Description:
Fixed Inductors 6.40mmL×6.40mmW×5.00mmH SMD/SMT 180 µH 20 % 470 mA 750 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 6.3754 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Number of Pins | 2 |
| Resistance | 750 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 6.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Type | Wirewound |
| Current Rating | 470 mA |
| DC Resistance (DCR) | 750 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 180 µH |
| RMS Current (Irms) | 470 mA |
| inductance tolerance | 20 % |
| Max DC Current | 470 mA |
| Series Resistance | 750 mΩ |
| DC Current | 470 mA |
| Schedule B | 8504500000 |
