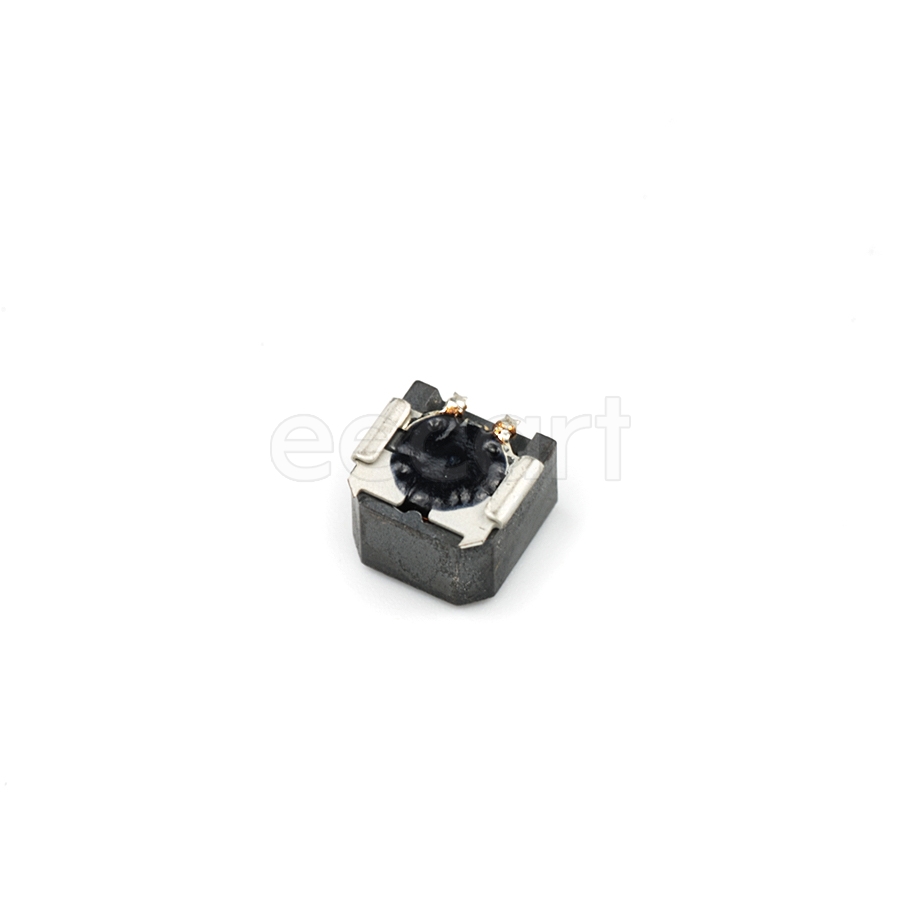

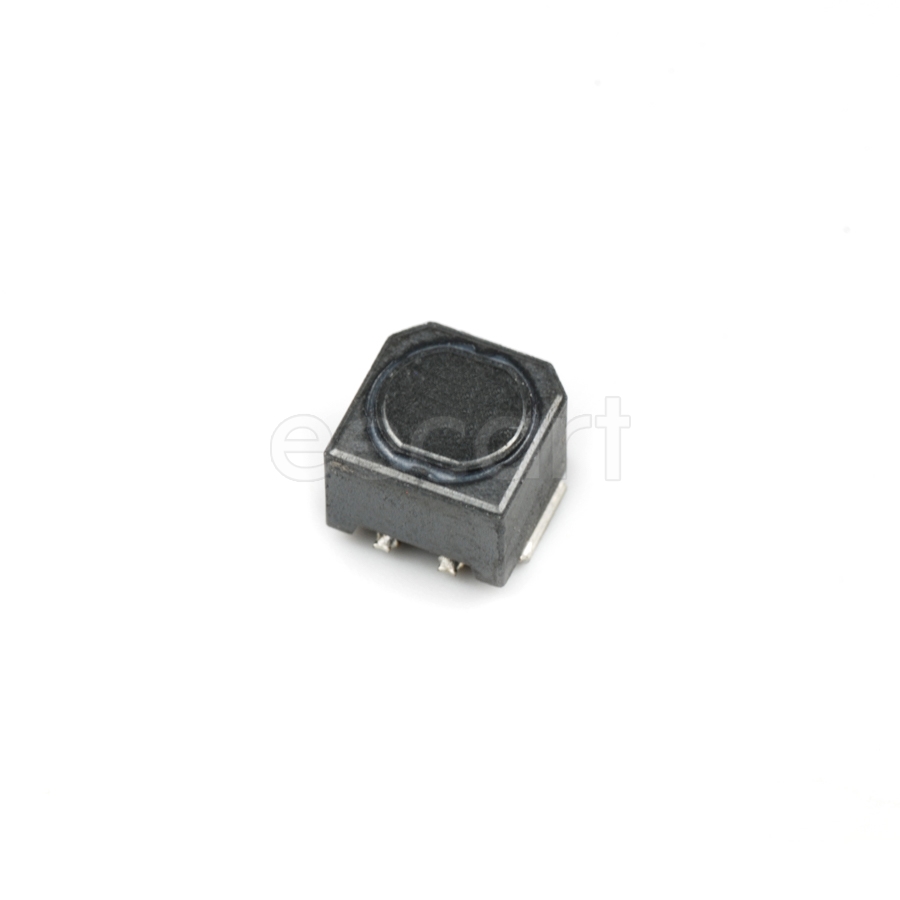

ELL-6UH470M
Manufacturer:
Panasonic
Mfr.Part #:
ELL-6UH470M
Datasheet:
Description:
Fixed Inductors 6.40mmL×6.00mmW×5.00mmH SMD/SMT 47 µH 20 % 900 mA 150 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 6.9 mm |
| Width | 5.9944 mm |
| Termination | SMD/SMT |
| Number of Pins | 2 |
| Resistance | 160 mΩ |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 6.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Self Resonant Frequency | 100 kHz |
| Type | Wirewound |
| Current | 1.3 A |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 150 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 47 µH |
| RMS Current (Irms) | 900 mA |
| inductance tolerance | 20 % |
| Max DC Current | 900 mA |
| Series Resistance | 160 mΩ |
| DC Current | 900 mA |
