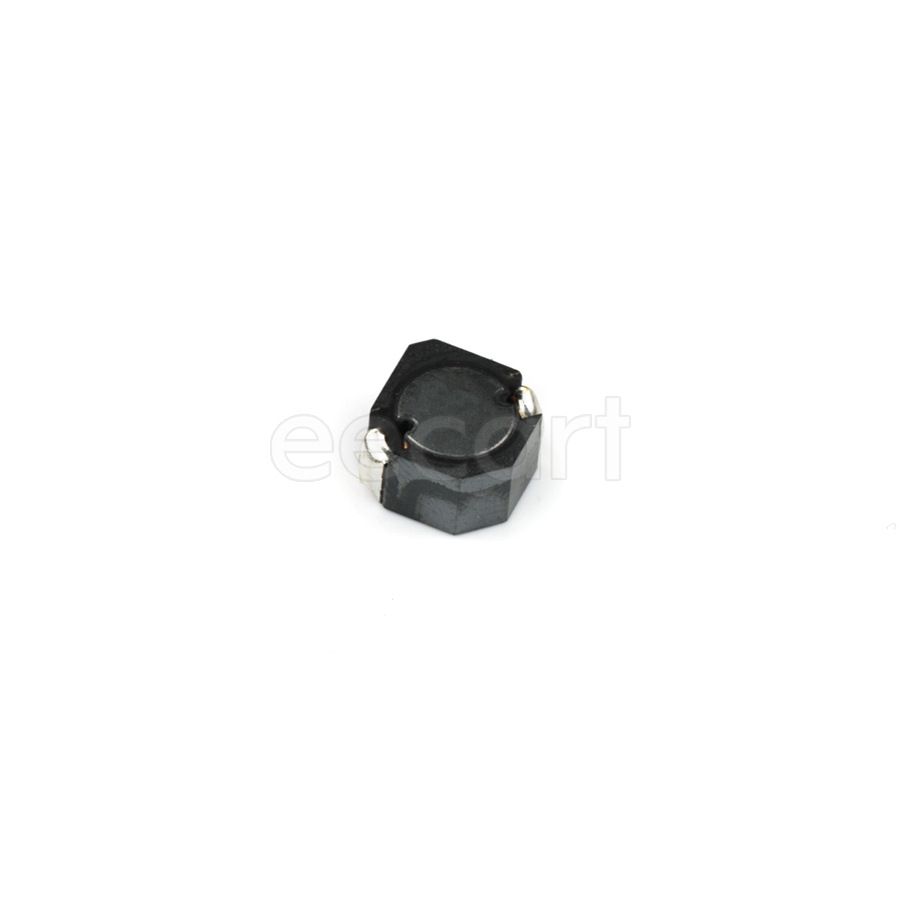

ELL-8TP6R8NB
Manufacturer:
Panasonic
Mfr.Part #:
ELL-8TP6R8NB
Datasheet:
Description:
Fixed Inductors 8.00mmL×8.00mmW×5.00mmH SMD/SMT 6.8 µH 30 % 3.5 A 18 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 5 mm |
| Length | 8 mm |
| Width | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 18 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 4.7 mm |
| Packaging | Reel |
| Depth | 8 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 18 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| RMS Current (Irms) | 3.5 A |
| inductance tolerance | 30 % |
| Max DC Current | 3.5 A |
| Series Resistance | 18 mΩ |
| Saturation Current | 3.5 A |
| Schedule B | 8504500000 |
| Type | Choke |
