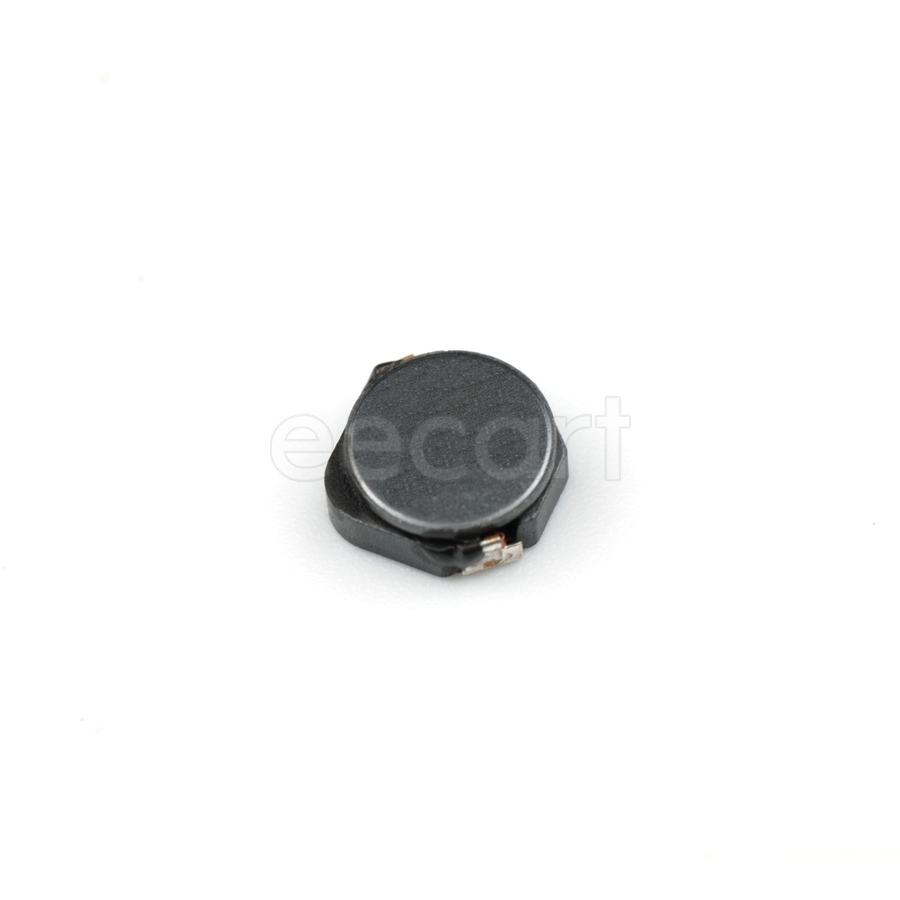

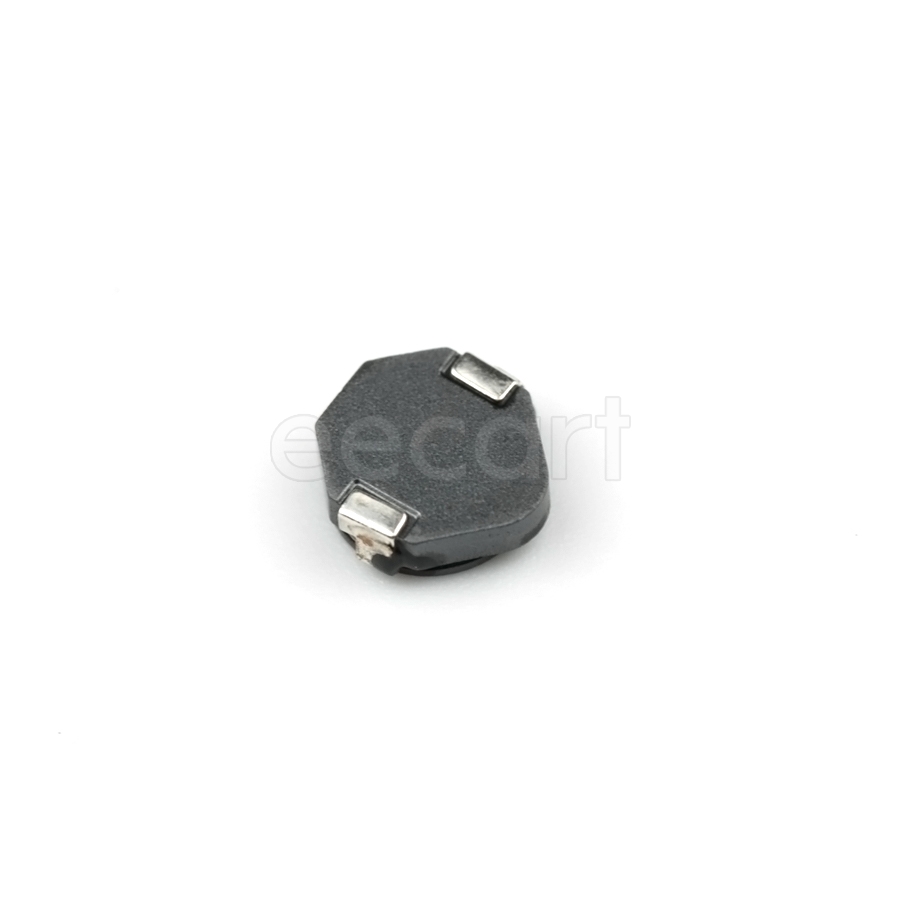

ELL-CTV470M
Manufacturer:
Panasonic
Mfr.Part #:
ELL-CTV470M
Datasheet:
Description:
Fixed Inductors 12.00mmL×12.00mmW×4.20mmH SMD/SMT 47 µH 20 % 1.9 A 69 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 12 mm |
| Width | 11.9888 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Number of Pins | 2 |
| Resistance | 69 mΩ |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Type | Wirewound |
| Current | 3.7 A |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 69 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Composite, Metal |
| RMS Current (Irms) | 1.9 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.9 A |
| DC Current | 1.9 A |
| Saturation Current | 1.9 A |
| Schedule B | 8504500000 |
