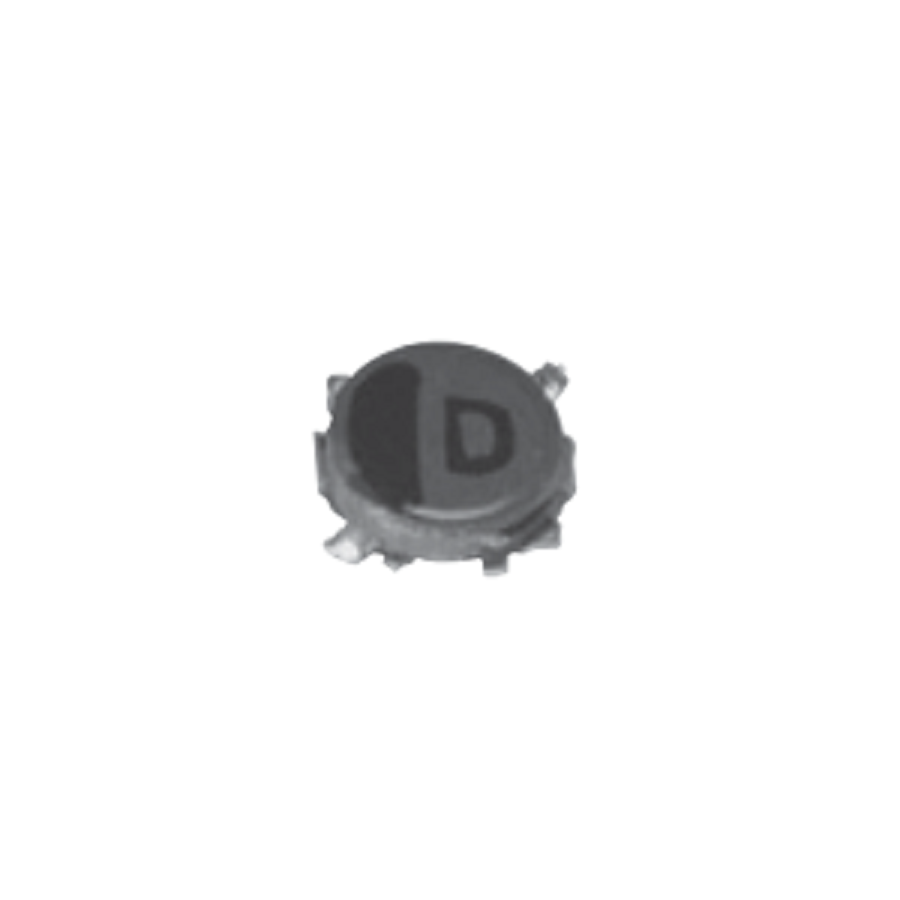

ELLVEG220M
Manufacturer:
Panasonic
Mfr.Part #:
ELLVEG220M
Datasheet:
Description:
Fixed Inductors 1212(3030 Metric) SMD/SMT 22 µH 20 % 330 mA 1.2 Ω
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1 mm |
| Length | 3 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Number of Pins | 2 |
| Resistance | 1.2 Ω |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 3.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Type | Wirewound |
| Current | 1 A |
| Current Rating | 330 mA |
| DC Resistance (DCR) | 1.2 Ω |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Shielding | Shielded |
| Inductance | 22 µH |
| RMS Current (Irms) | 400 mA |
| inductance tolerance | 20 % |
| Max DC Current | 400 mA |
| Series Resistance | 1.2 Ω |
| DC Current | 400 mA |
| Saturation Current | 1 A |
