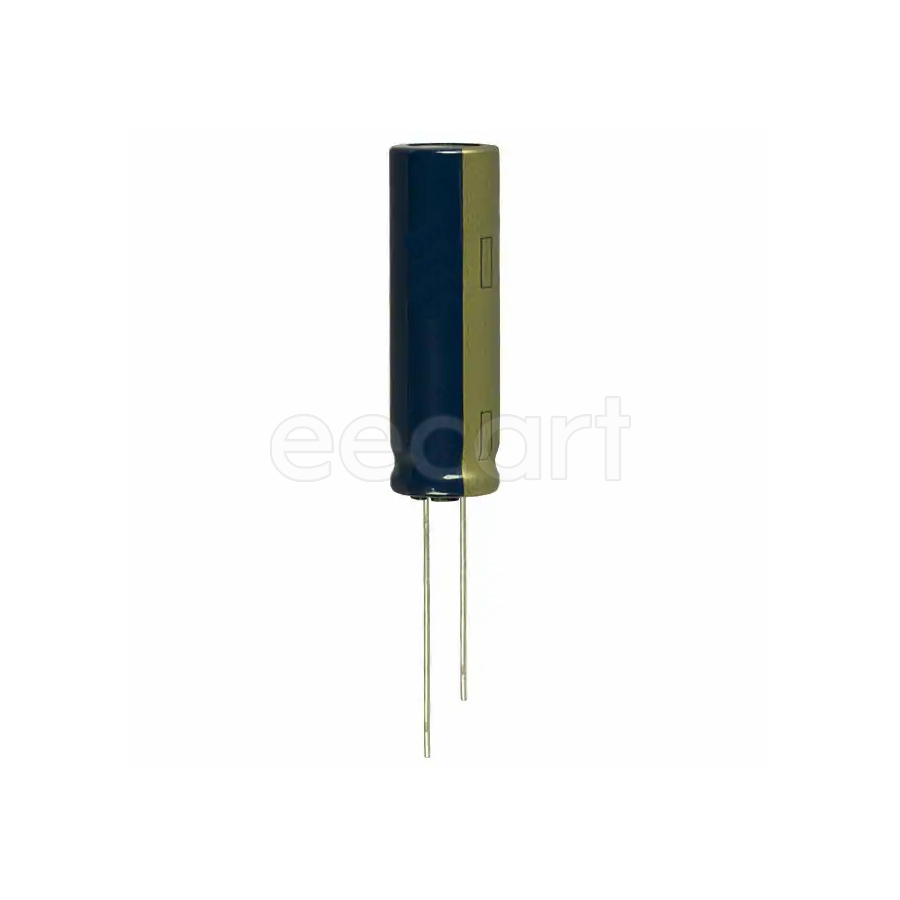

ELXZ500ELL102MK40S
Manufacturer:
NCC
Mfr.Part #:
ELXZ500ELL102MK40S
Datasheet:
Description:
Aluminum Electrolytic Capacitors 12.50mmD×40.00mmH Through Hole 1 mF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Tolerance | 20 % |
| Life (Hours) | 7000 Hours |
| Height - Seated (Max) | 41.5 mm |
| Diameter | 12.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Impedance | 29 mΩ |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 105 °C |
| rohs status | Compliant |
| size length | 40.0 mm |
| size height | 40.0 mm |
| voltage rating dc | 50 V |
| capacitance tolerance | 20 % |
| size diameter | 12.5 mm |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
Stock: 137
Distributors
pcbx
pcbxUnit Price$0.73142
Ext.Price$0.73142
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73142 | $0.73142 |
| 10 | $0.58666 | $5.86660 |
| 25 | $0.53559 | $13.38975 |
| 50 | $0.48896 | $24.44800 |
| 100 | $0.44639 | $44.63900 |
| 300 | $0.42462 | $127.38600 |
| 500 | $0.40391 | $201.95500 |
| 1000 | $0.38053 | $380.53000 |
