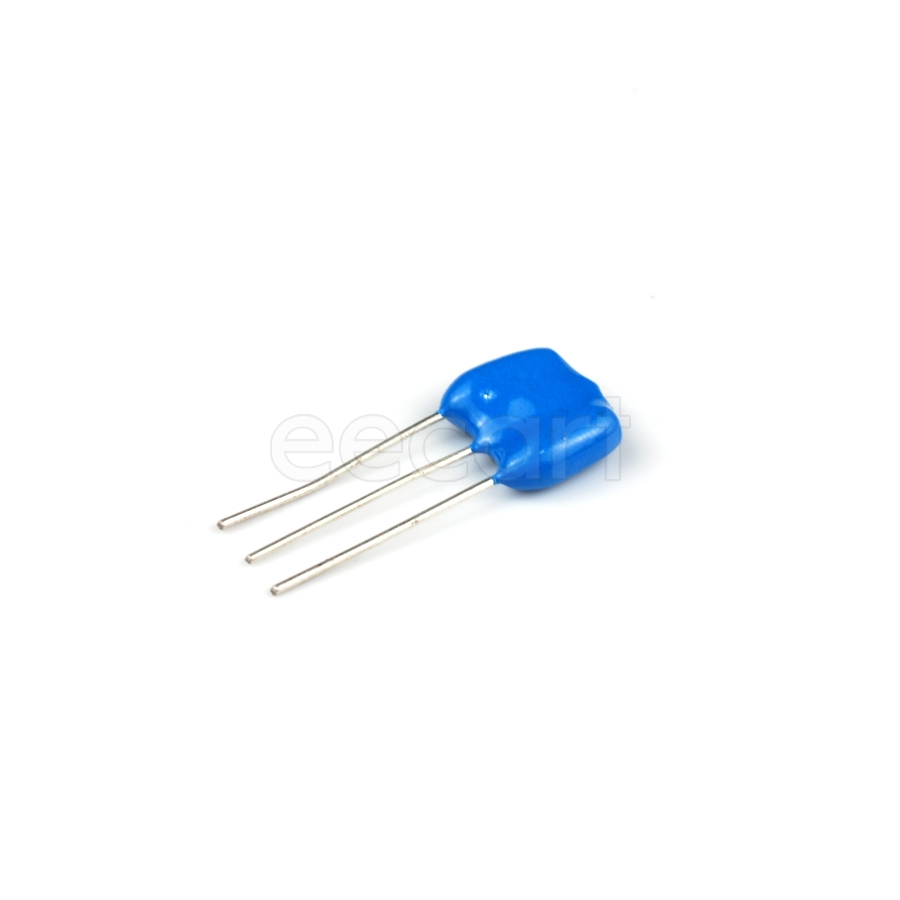

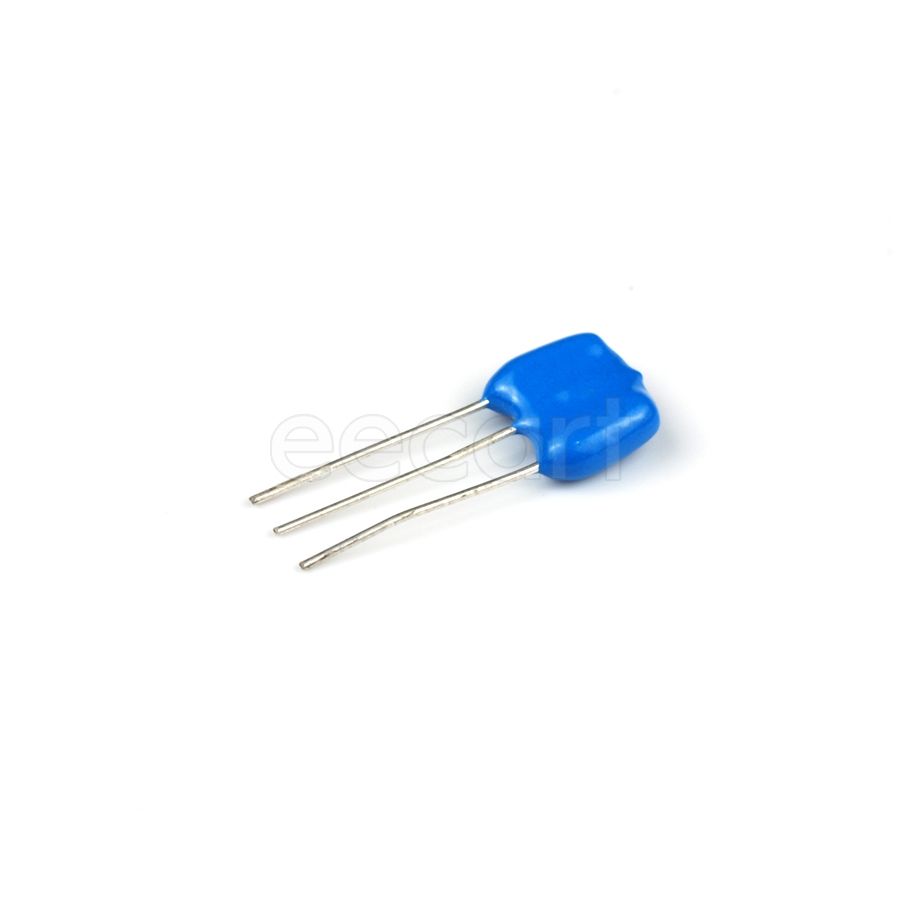

EMI102T-RC
Manufacturer:
Bourns
Mfr.Part #:
EMI102T-RC
Datasheet:
Description:
EMI / RFI Filters 9.00mmL×3.20mmW×8.00mmH Through Hole LC (T-Type) 3rd 1 nF 25 dB 50 mΩ
| Parameter | Value |
|---|---|
| Capacitance | 1 nF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| Length | 9 mm |
| Width | 3.2004 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 8.001 mm |
| Circuit Type | Filter |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current | 5 A |
| Current Rating | 5 A |
| DC Resistance (DCR) | 50 mΩ |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 50 V |
| Test Frequency | 1 kHz |
| Number of Channels | 1 |
| Max DC Current | 5 A |
| ESD Protection | No |
| Attenuation Value | 25 dB |
| Chemistry/Technology | LC (T-Type) |
| Schedule B | 8504500000 |
| Channel Resistance | 50 mΩ |
| Filter Order | 3rd |
