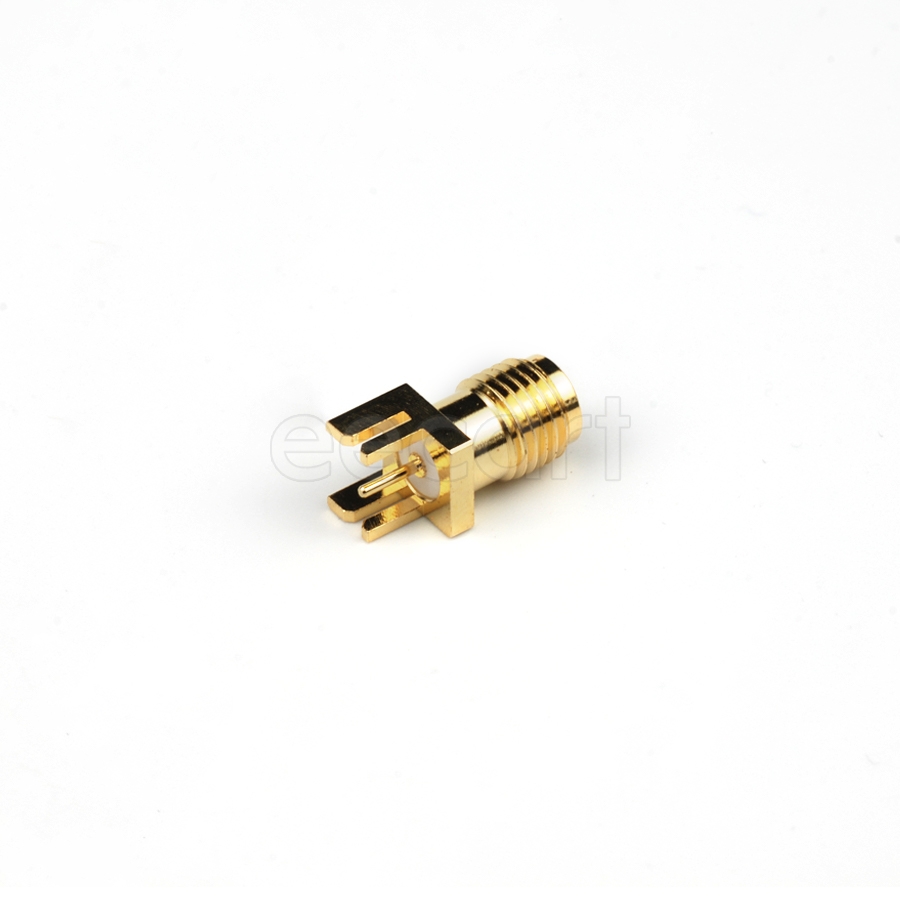

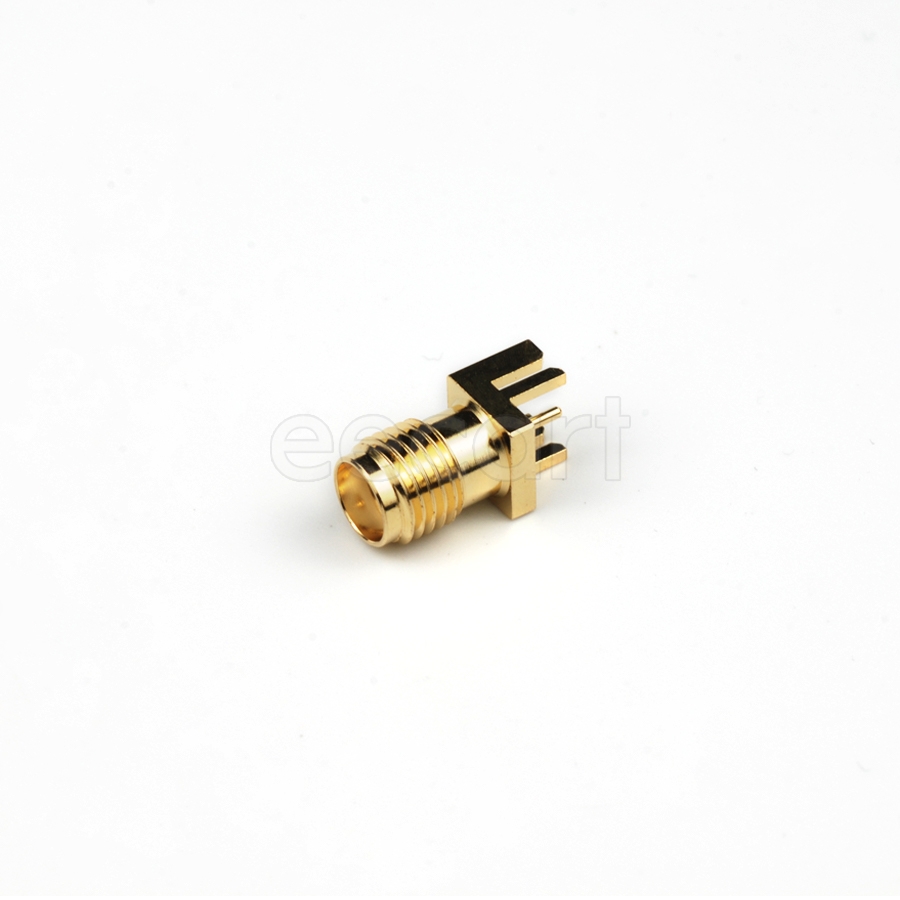

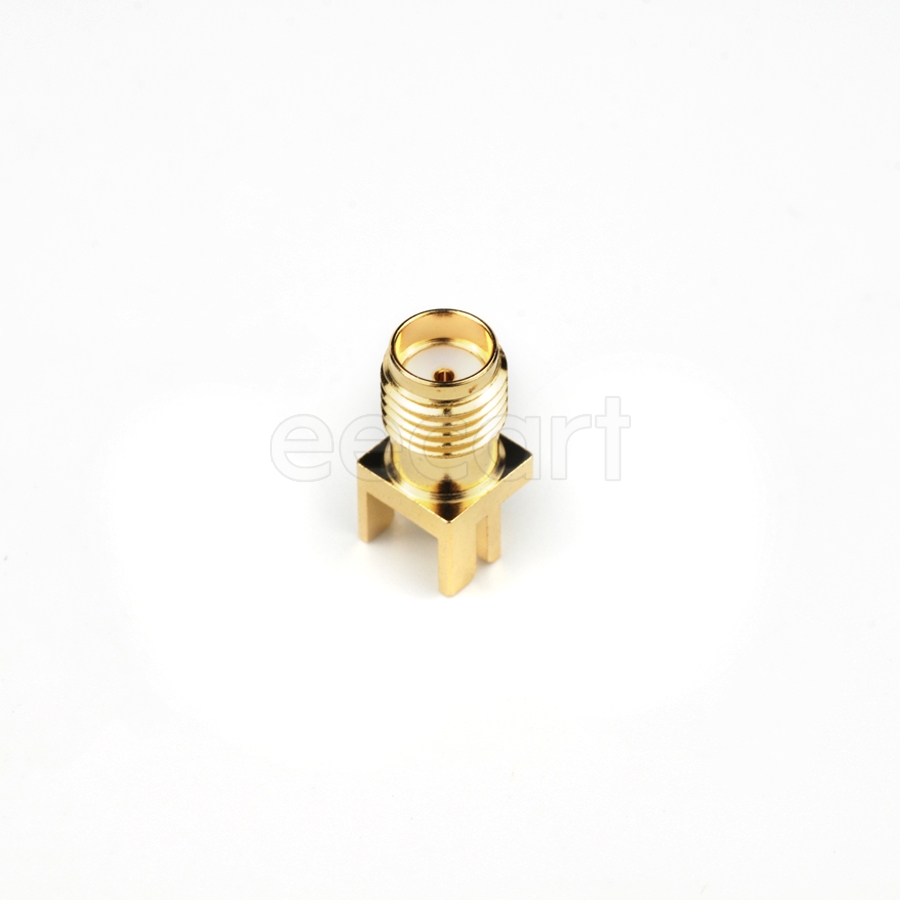

EMPCB.SMAFSTJ.B.HT
Manufacturer:
Taoglas
Mfr.Part #:
EMPCB.SMAFSTJ.B.HT
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Termination | Solder |
| Packaging | Tray |
| Voltage Rating | 335 V |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 12.4 GHz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 12.4 GHz |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Plating | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 1454
Distributors
pcbx
pcbxUnit Price$2.00909
Ext.Price$2.00909
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.00909 | $2.00909 |
| 10 | $1.90222 | $19.02220 |
| 25 | $1.83211 | $45.80275 |
| 50 | $1.76457 | $88.22850 |
| 100 | $1.53289 | $153.28900 |
| 300 | $1.48865 | $446.59500 |
| 500 | $1.44569 | $722.84500 |
| 1000 | $1.42687 | $1426.87000 |
