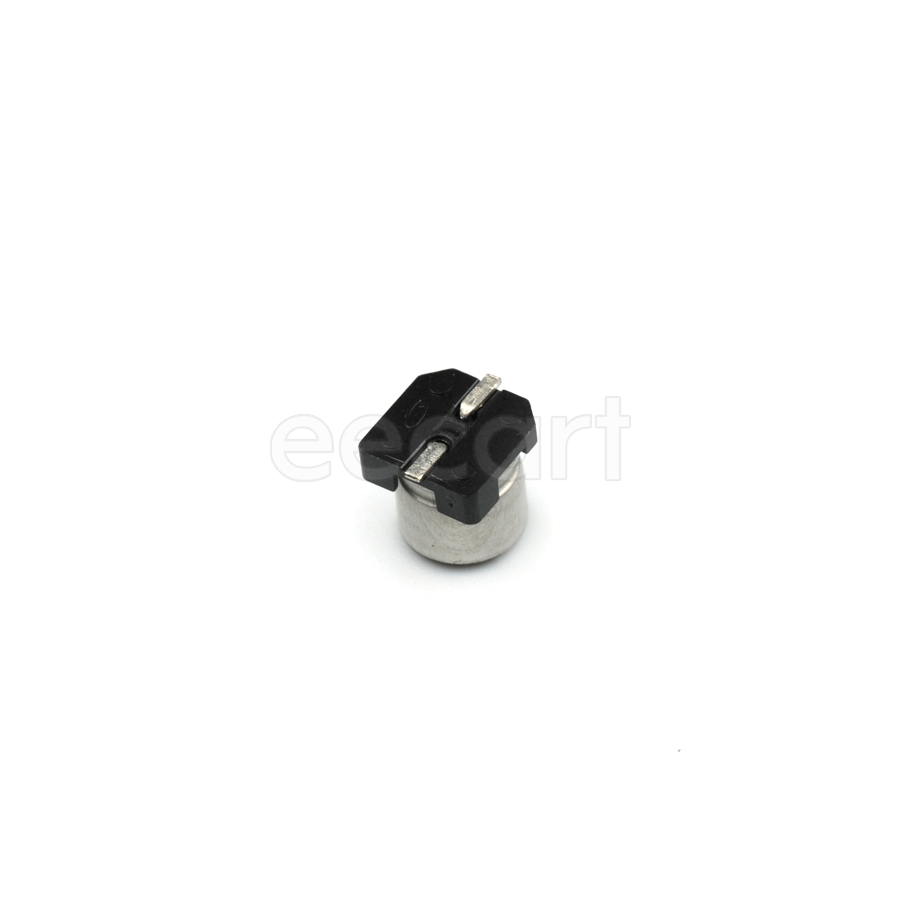

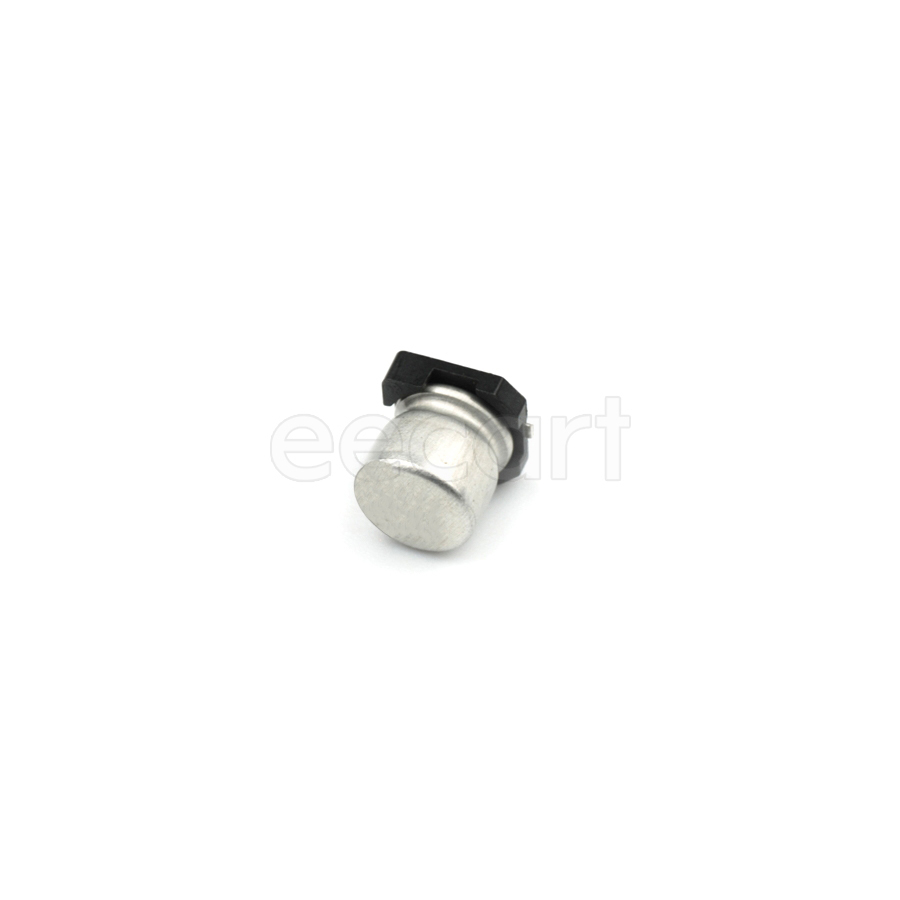

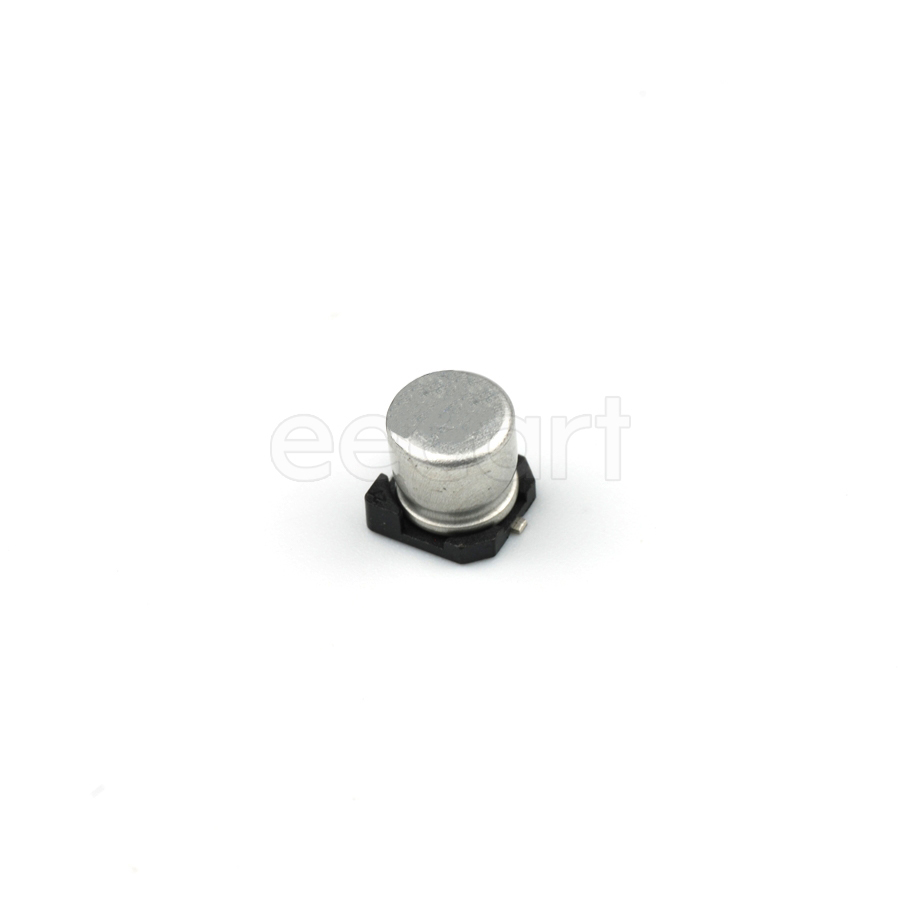

EMVA500ADA4R7MD55G
Manufacturer:
NCC
Mfr.Part #:
EMVA500ADA4R7MD55G
Datasheet:
Description:
Aluminum Electrolytic Capacitors 4.00mmD×5.20mmH SMD/SMT 4.7 µF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 18 mA |
| Height - Seated (Max) | 5.21 mm |
| Length | 5.2 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 55 |
| Leakage Current | 3 µA |
| Height | 5.2 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 1 mm |
| Voltage | 50 V |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Features | General Purpose |
| Ripple Current (AC) | 18 mA |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 10 kHz |
