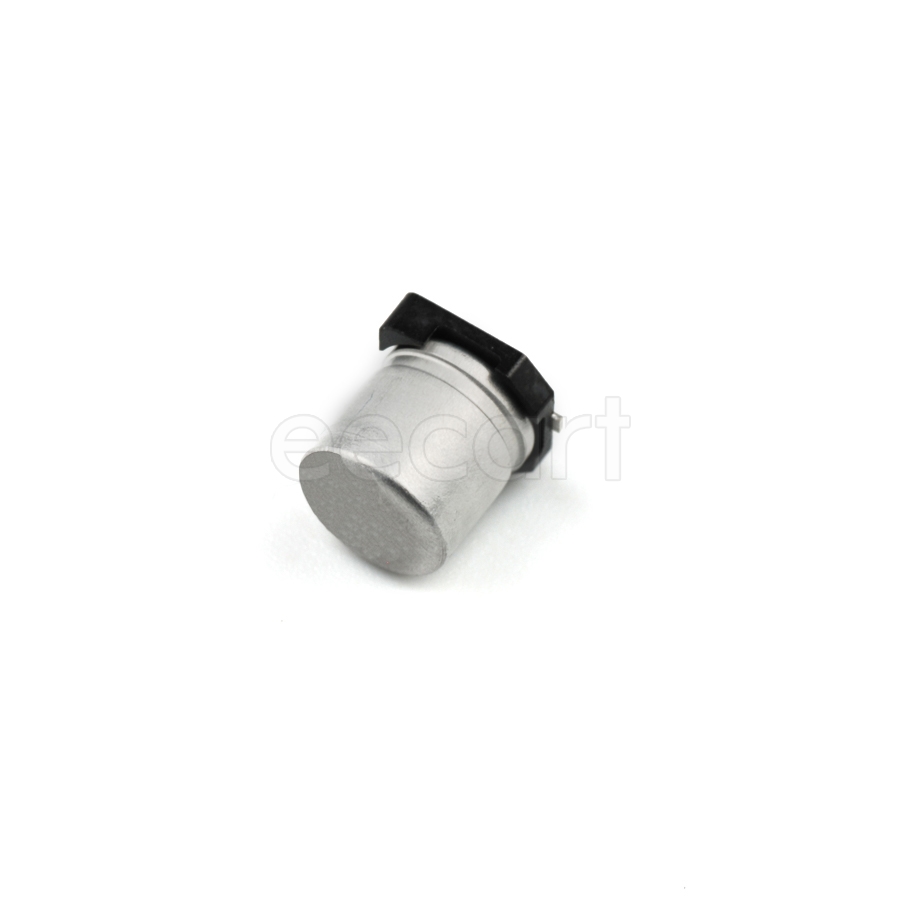

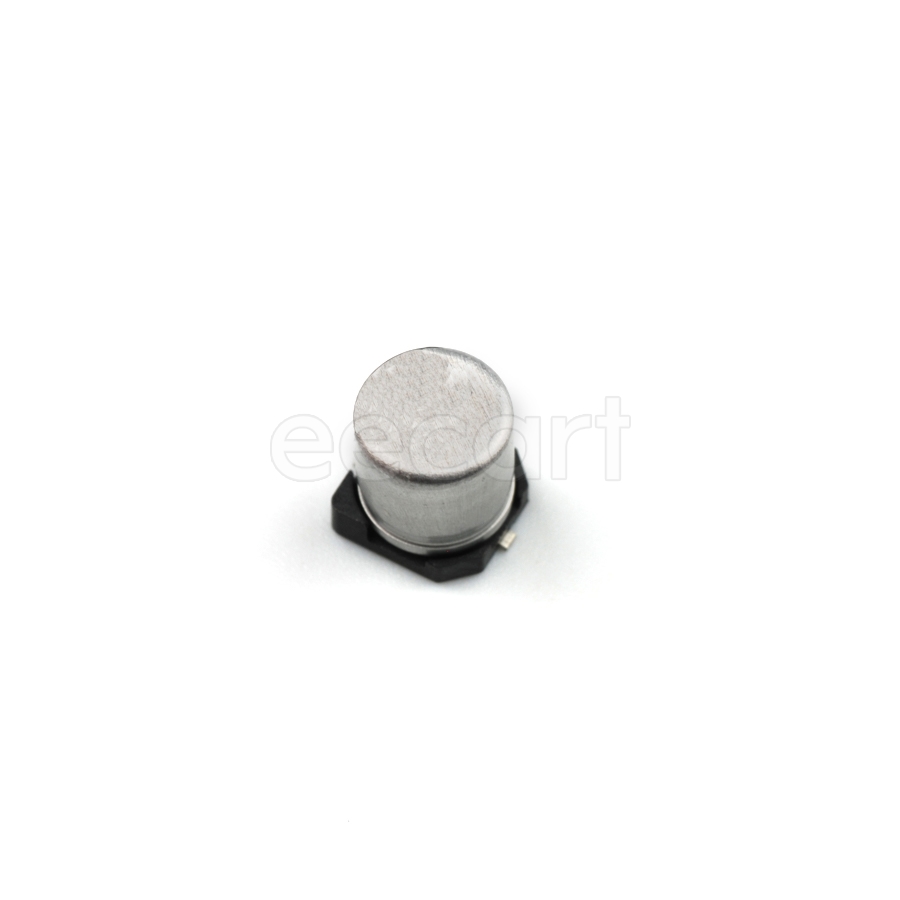

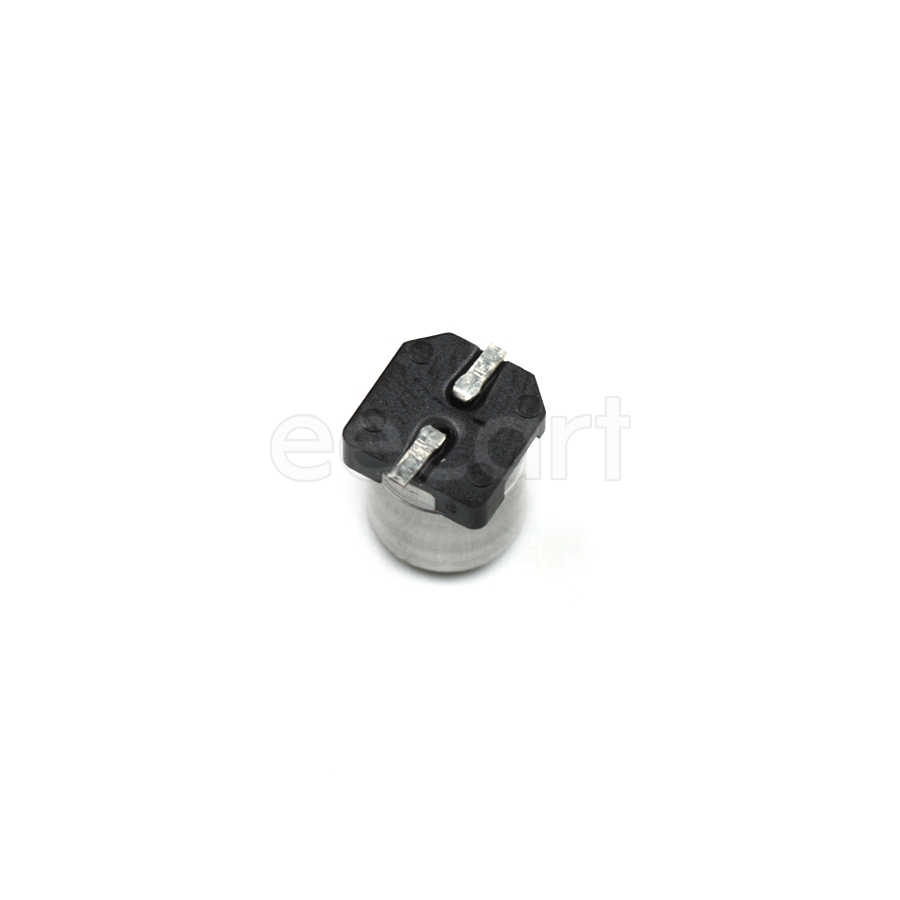

EMVH350ADA220MF60G
Manufacturer:
NCC
Mfr.Part #:
EMVH350ADA220MF60G
Datasheet:
Description:
Aluminum Electrolytic Capacitors 6.3mmD×5.7mmH SMD/SMT 22 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 1.6 Ω |
| Life (Hours) | 1000 Hours |
| Ripple Current | 69 mA |
| Height - Seated (Max) | 5.69 mm |
| Length | 5.7 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 60 |
| Leakage Current | 3 µA |
| Height | 5.7 mm |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Depth | 6.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 1.9 mm |
| Voltage | 35 V |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 69 mA |
| Ripple Current @ High Frequency | 69 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 64.17 mA @ 120 Hz |
