EMZA160ADA101MF61G
Manufacturer:
NCC
Mfr.Part #:
EMZA160ADA101MF61G
Datasheet:
Description:

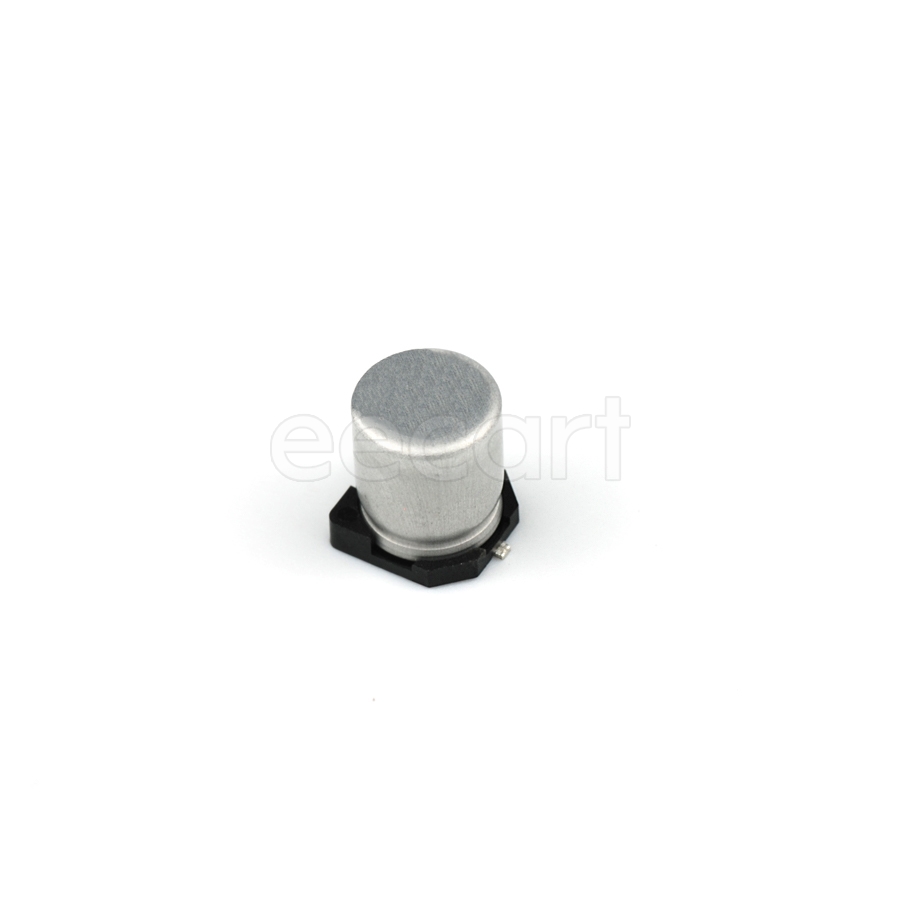

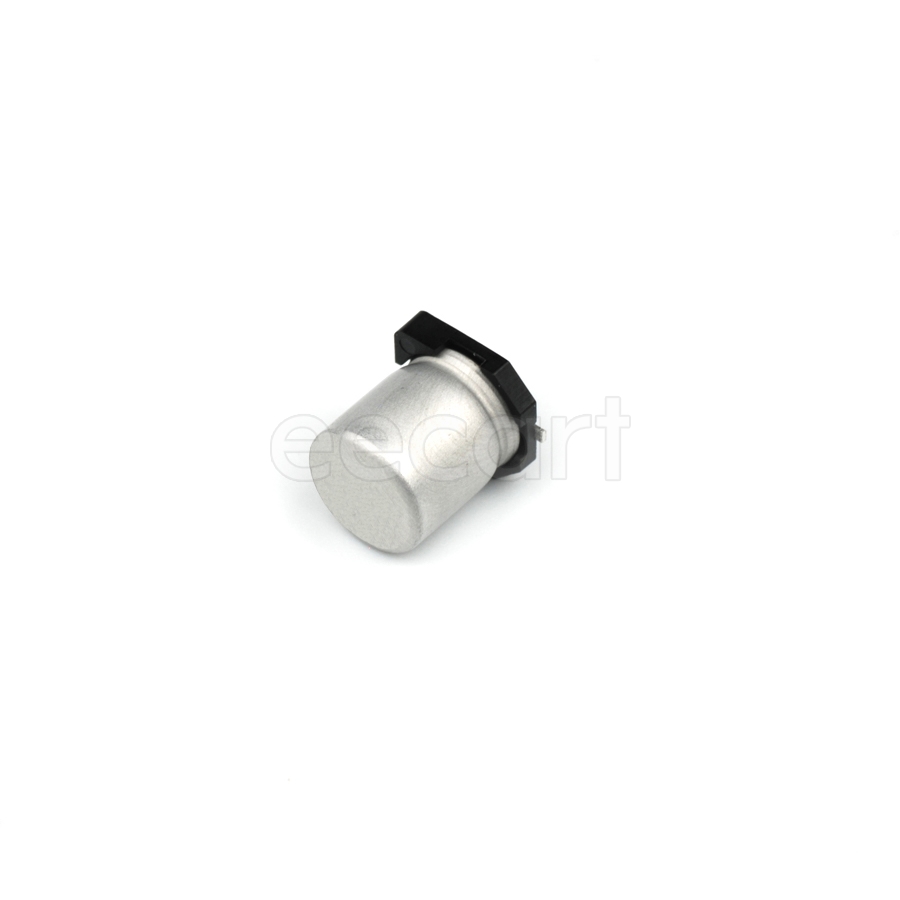

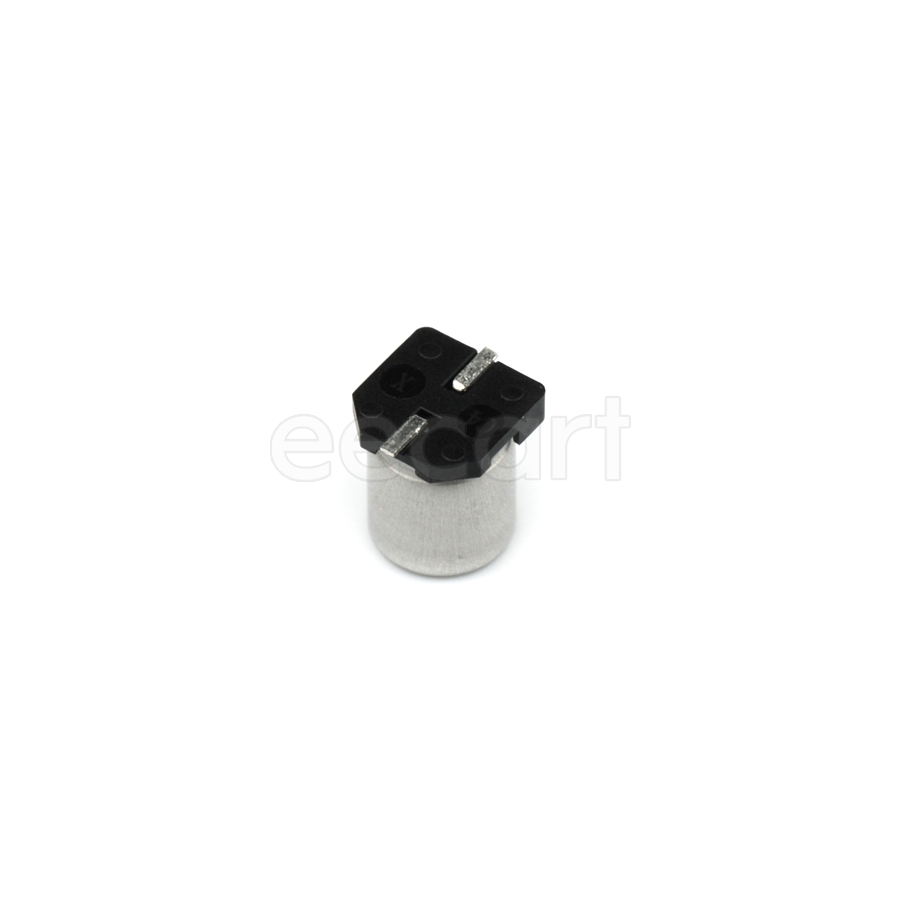

Aluminum Electrolytic Capacitors 6.3mmL×6.3mmW SMD/SMT 100 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 360 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 240 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 61 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.16 % |
| Height | 5.8 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 1.9 mm |
| Voltage | 16 V |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Impedance | 360 mΩ |
| Ripple Current (AC) | 240 mA |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
