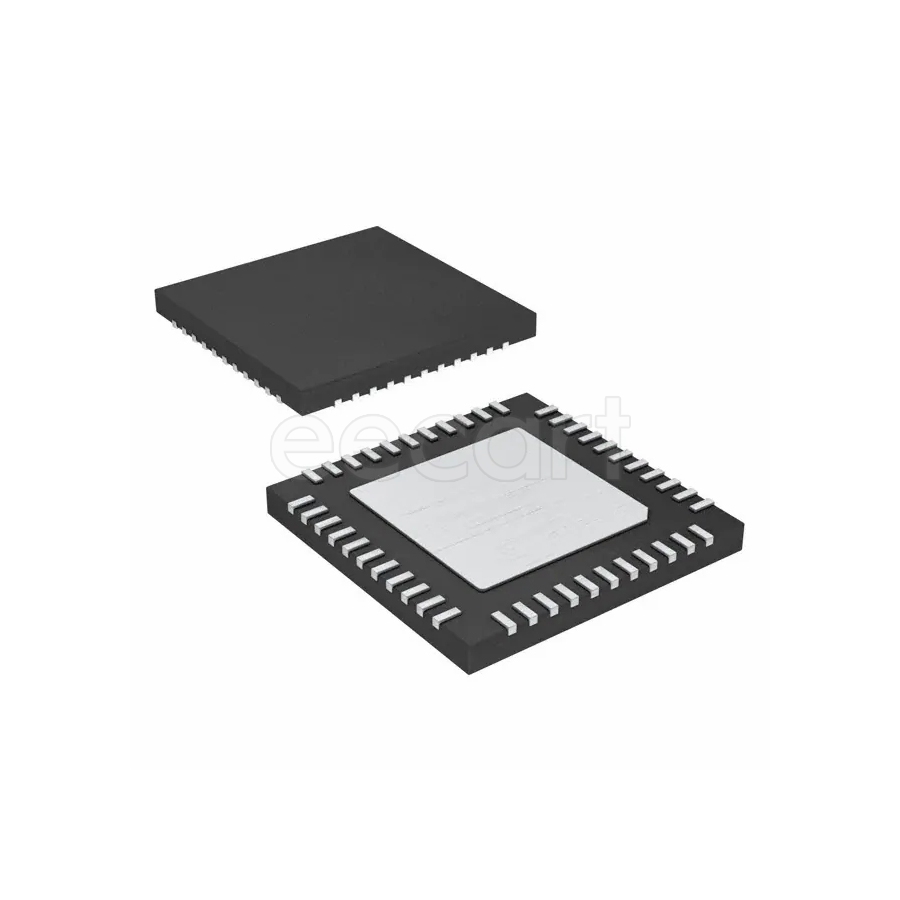

ENC424J600-I/ML
Manufacturer:
Microchip
Mfr.Part #:
ENC424J600-I/ML
Datasheet:
Description:
Ethernet Interface ICs QFN-44 SMD/SMT 100 Mbps 10/100BASE-T Number of Transceivers:1
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 880 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 25 MHz |
| Interface | Parallel, SPI |
| Operating Supply Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 3 V |
| Max Supply Current | 117 mA |
| Data Rate | 100 Mbps |
| Nominal Supply Current | 117 mA |
| Number of Ports | 1 |
| Standard | 10/100BASE-T |
| Number of Transceivers | 1 |
| Packaging | Tube |
Stock: 3516
Distributors
pcbx
pcbxUnit Price$3.29832
Ext.Price$3.29832
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.29832 | $3.29832 |
| 10 | $3.15411 | $31.54110 |
| 25 | $3.01619 | $75.40475 |
| 50 | $2.73492 | $136.74600 |
