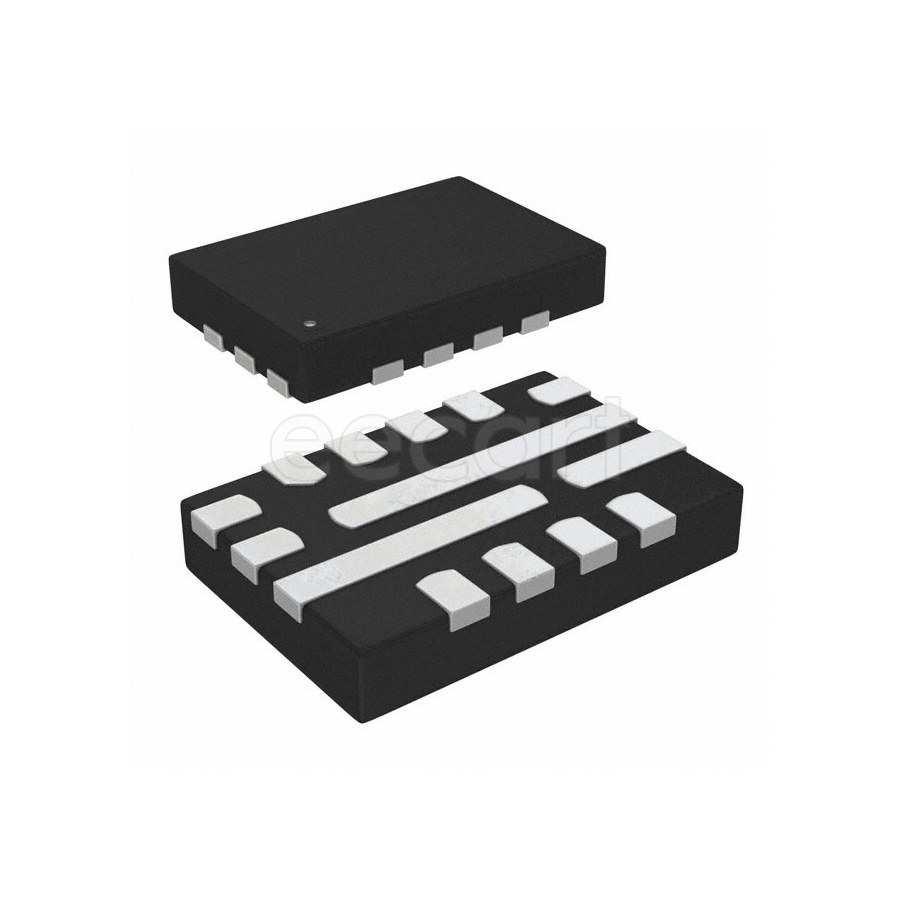

EP5348UI
Manufacturer:
Intel
Mfr.Part #:
EP5348UI
Datasheet:
Description:
Voltage Regulators - Switching UQFN-14 SMD/SMT Buck Adjustable 600 mV
| Parameter | Value |
|---|---|
| Length | 2.032 mm |
| Width | 1.778 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 1.016 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 10.007382 mg |
| Features | OCP, OTP, SCP, UVLO |
| Min Input Voltage | 2.5 V |
| Output Current | 400 mA |
| Output Voltage | 600 mV |
| Output Type | Adjustable |
| Max Power Dissipation | 2 W |
| Max Output Current | 400 mA |
| Switching Frequency | 9 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Efficiency | 90 % |
| Voltage - Output 1 | 5.188 V |
| Min Output Voltage | 600 mV |
| Max Output Voltage | 5.188 V |
| Schedule B | 8542310000 |
| Topology | Buck |
