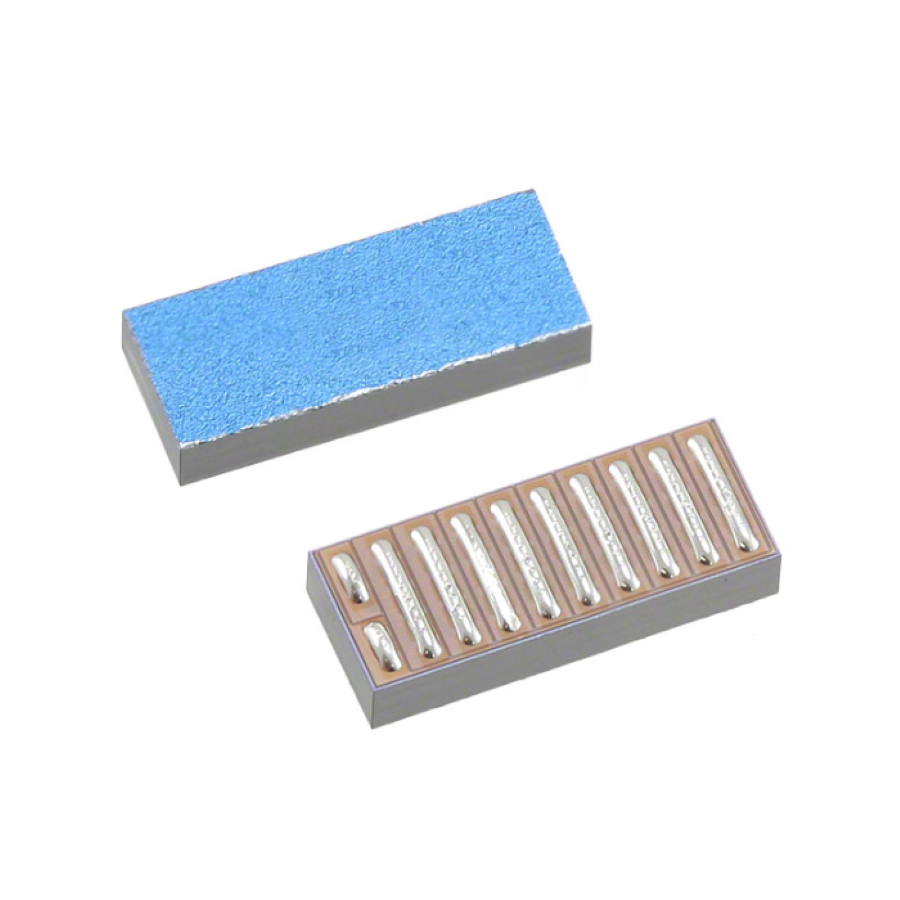

EPC2001
Manufacturer:
EPCOS
Mfr.Part #:
EPC2001
Datasheet:
Description:
MOSFETs Die SMD/SMT N-Channel number of channels:1 100 V Continuous Drain Current (ID):25 A 10 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Channels | 1 |
| Input capacitance | 850 pF |
| Continuous Drain Current (ID) | 25 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge | 10 nC |
| Drain to Source Resistance | 5.6 mΩ |
| Gate to Source Voltage (Vgs) | 6 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 1.4 V |
| FET Type(Transistor Polarity) | N-Channel |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
