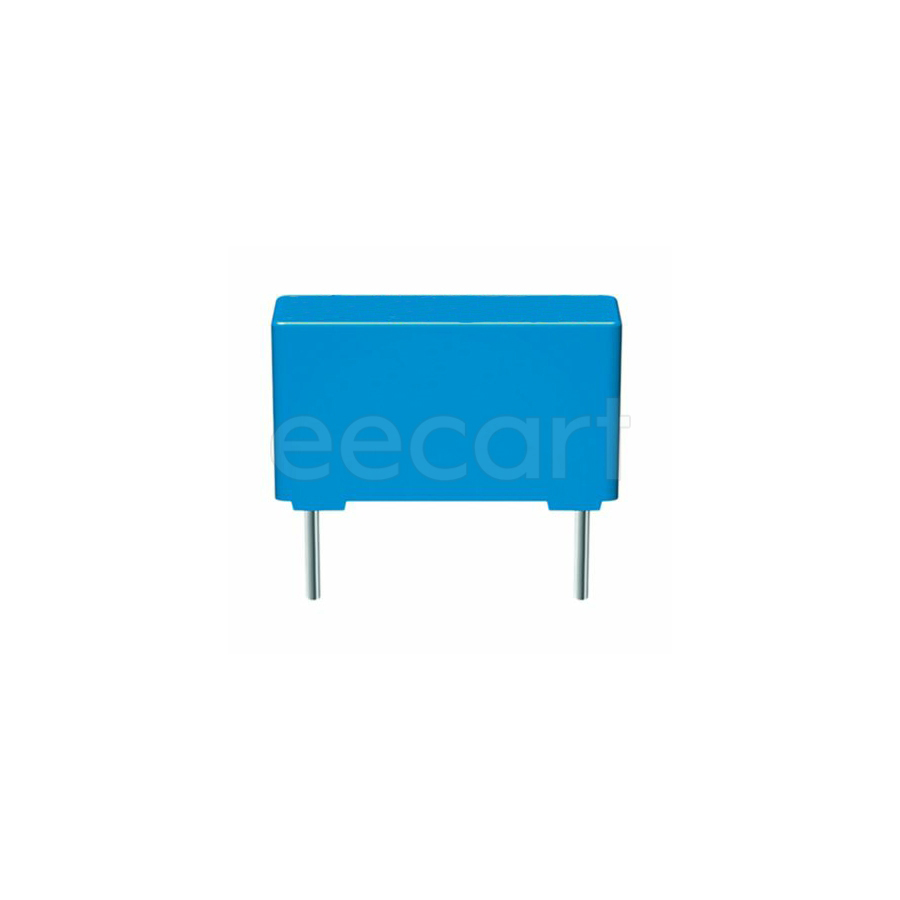

B32674D8225K000
Manufacturer:
EPCOS
Mfr.Part #:
B32674D8225K000
Datasheet:
Description:
Film Capacitors Through Hole 2.2 µF 10 % Polypropylene (PP) Voltage Rating (DC):875 V Voltage Rating (AC):400 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 µF |
| Voltage Rating (DC) | 875 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 10.3 mΩ |
| Height - Seated (Max) | 33 mm |
| Length | 31.5 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 2 |
| Height | 33 mm |
| Packaging | Bulk |
| Voltage Rating | 1050 V (1.05 kV) |
| Depth | 18 mm |
| Lead Free | |
| RoHS | Compliant |
| Polarity | |
| Lead Diameter | 800 µm |
| Lead Pitch | 27.5 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | Polypropylene |
| Contact Plating | Tin |
| Lead Length | 6 mm |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
Stock: 769
Distributors
pcbx
pcbxUnit Price$2.61548
Ext.Price$2.61548
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.61548 | $2.61548 |
| 10 | $1.87131 | $18.71310 |
| 25 | $1.71752 | $42.93800 |
| 50 | $1.57639 | $78.81950 |
| 100 | $1.49720 | $149.72000 |
| 300 | $1.42199 | $426.59700 |
| 500 | $1.35056 | $675.28000 |
| 1000 | $1.28270 | $1282.70000 |
| 3000 | $1.24151 | $3724.53000 |
| 5000 | $1.20164 | $6008.20000 |
