EPL2014-103MLB
Manufacturer:
Coilcraft
Mfr.Part #:
EPL2014-103MLB
Datasheet:
Description:

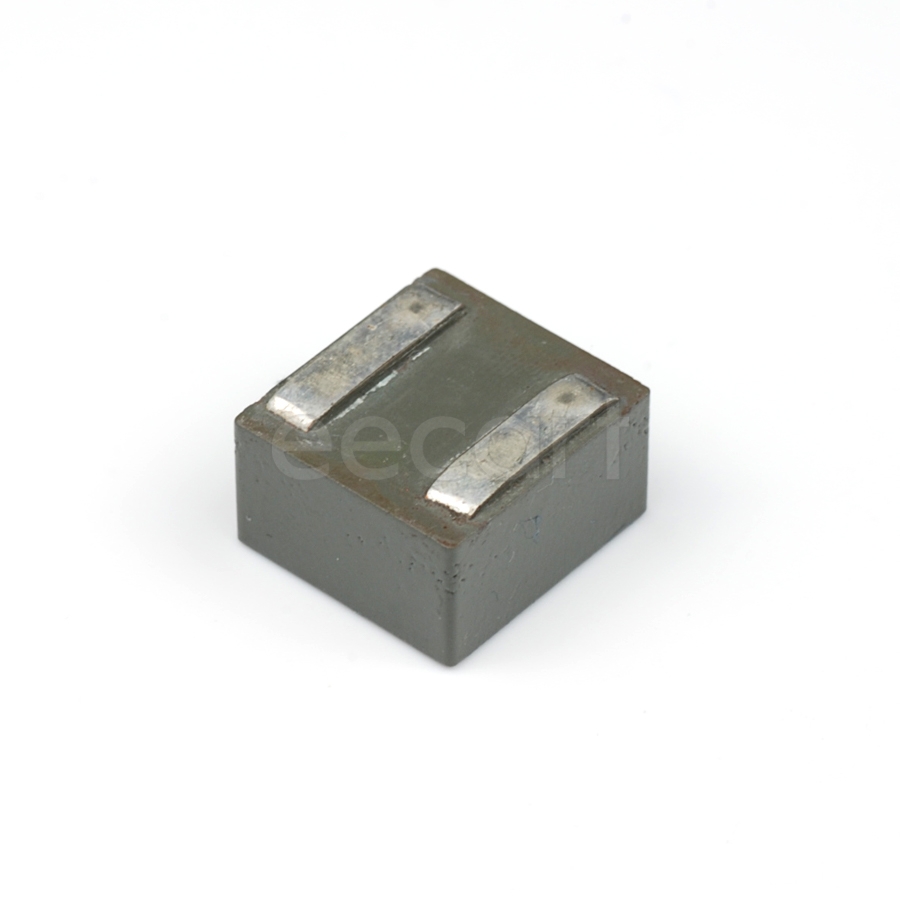

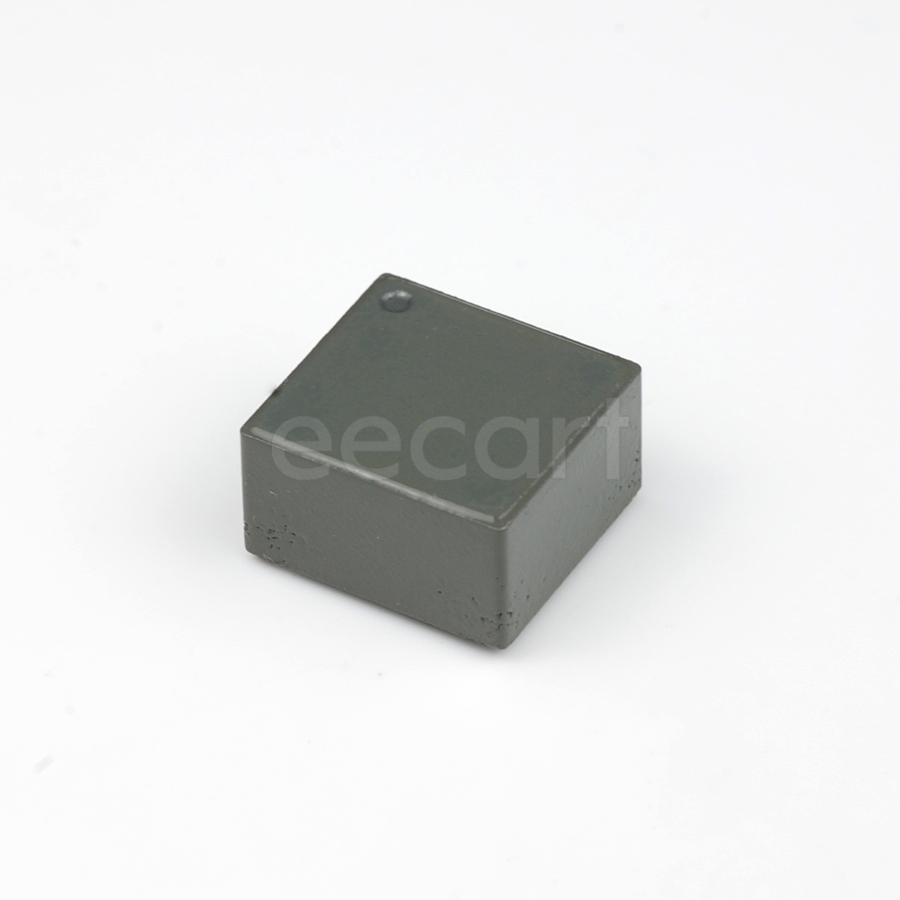

Fixed Inductors 2.20mmL×2.20mmW×1.45mmH SMD/SMT 10 µH 20 % 729 mA 459 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.45 mm |
| Length | 2.2 mm |
| Width | 2.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.45 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 33 MHz |
| Type | Molded |
| DC Resistance (DCR) | 459 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 729 mA |
| inductance tolerance | 20 % |
| Max DC Current | 729 mA |
| Saturation Current | 250 mA |
| Current Rating | 729 mA |
