EPL3015-472MLB
Manufacturer:
Coilcraft
Mfr.Part #:
EPL3015-472MLB
Datasheet:
Description:

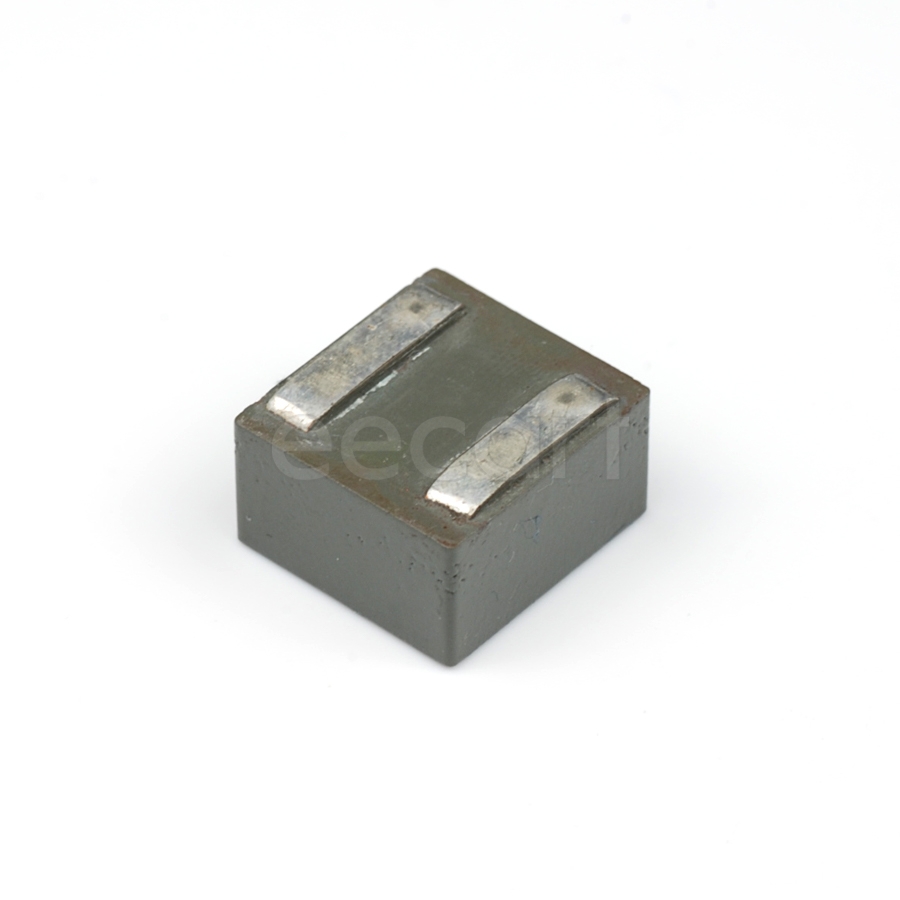

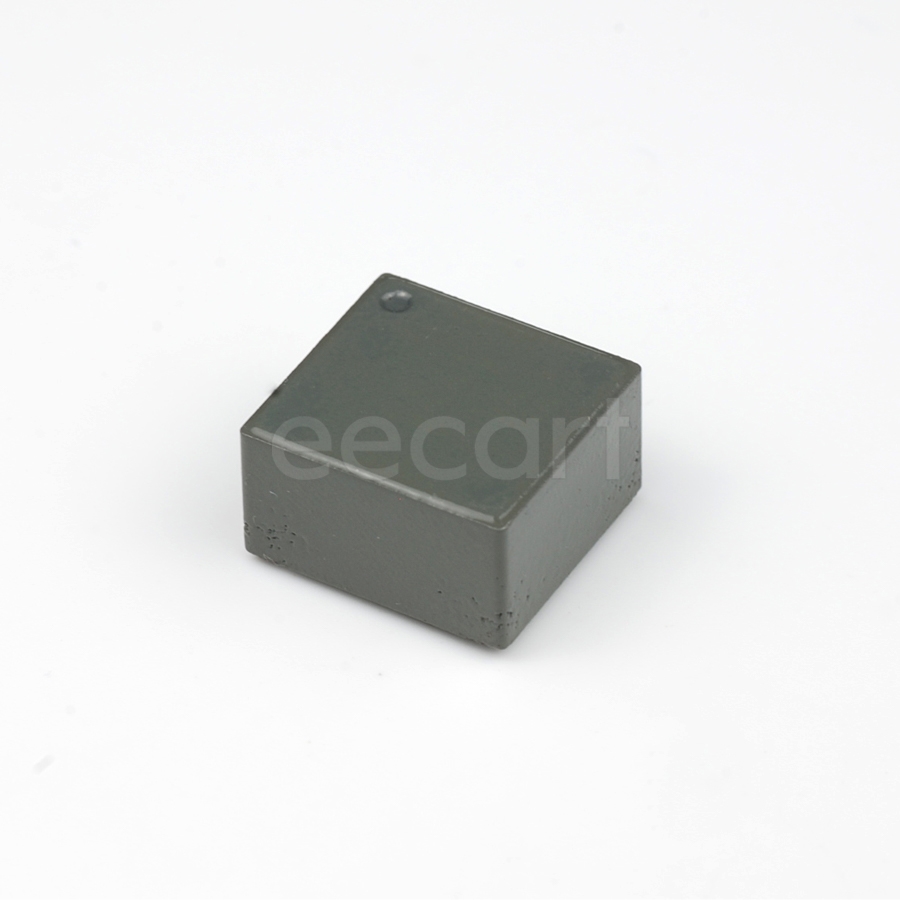

Fixed Inductors 3.20mmL×3.20mmW×1.55mmH SMD/SMT 4.7 µH 20 % 1.4 A 167 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.5 mm |
| Length | 3.2 mm |
| Width | 3.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.55 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 50 MHz |
| Type | Molded |
| DC Resistance (DCR) | 167 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 85 °C |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.4 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.4 A |
| Series Resistance | 167 mΩ |
| Saturation Current | 550 mA |
| Current Rating | 1.4 A |
