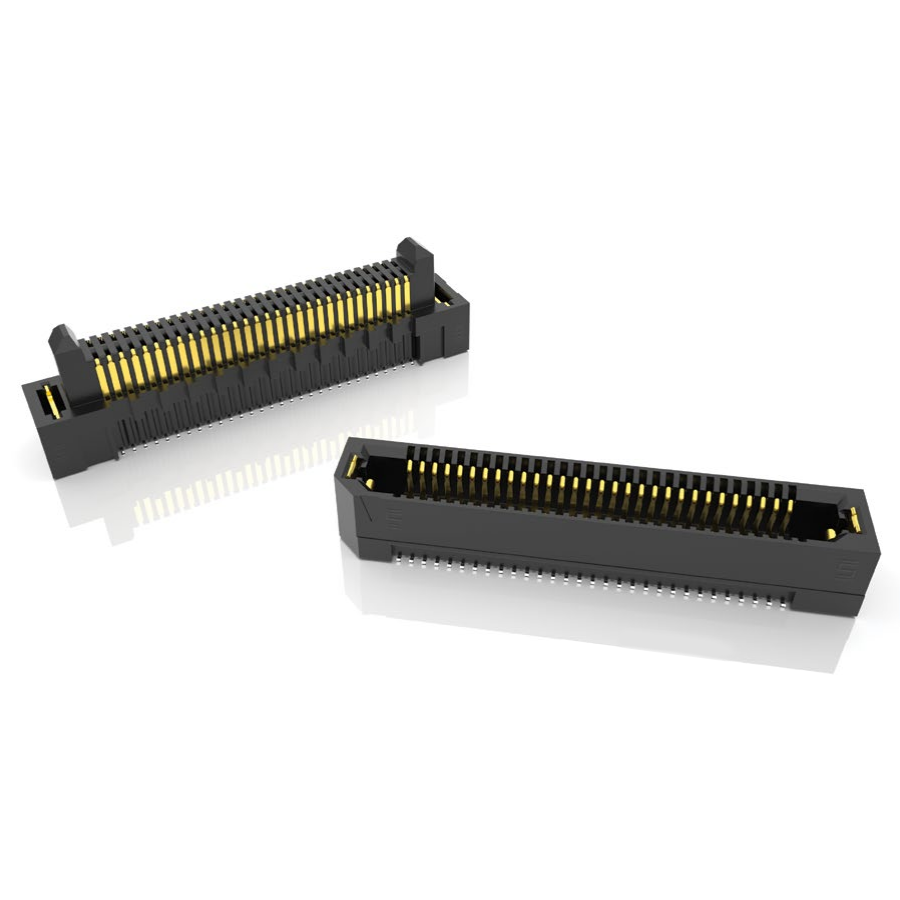

ERF8-010-05.0-L-DV-L-TR
Manufacturer:
Samtec
Mfr.Part #:
ERF8-010-05.0-L-DV-L-TR
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:20 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.23 mm |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Pitch | 800 µm |
| Current Rating | 1.4 A |
| Gender | Female |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Stack Height | 7 mm, 10 mm, 13 mm, 14 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 329
Distributors
pcbx
pcbxUnit Price$2.78450
Ext.Price$2.78450
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.78450 | $2.78450 |
| 10 | $2.63335 | $26.33350 |
| 25 | $2.49041 | $62.26025 |
| 50 | $2.28437 | $114.21850 |
| 100 | $2.22794 | $222.79400 |
| 300 | $2.09896 | $629.68800 |
| 500 | $1.97745 | $988.72500 |
| 1000 | $1.73380 | $1733.80000 |
| 3000 | $1.53809 | $4614.27000 |
| 5000 | $1.36447 | $6822.35000 |
