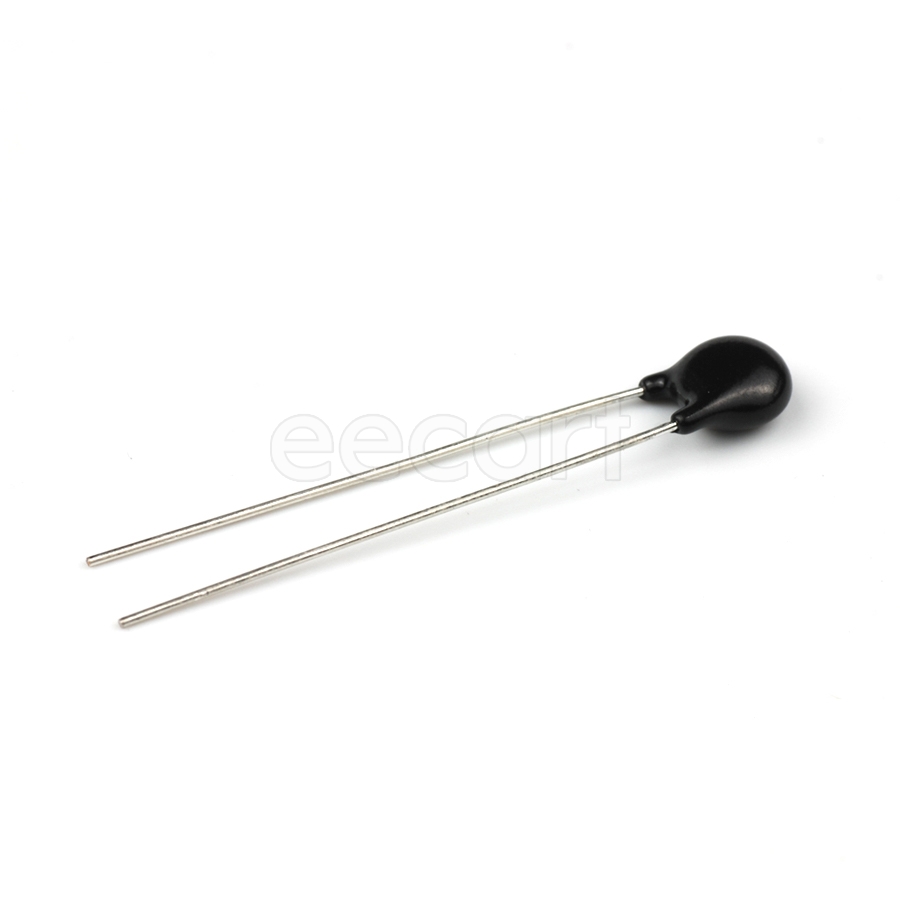

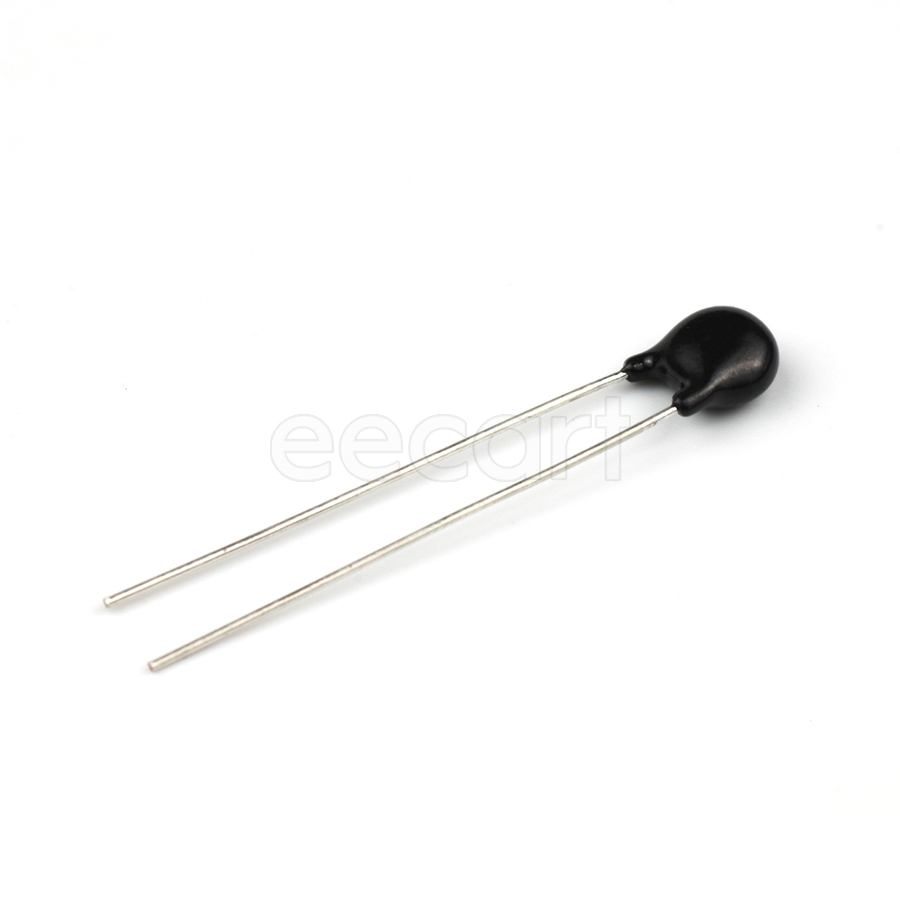

ERZ-V05D330
Manufacturer:
Panasonic
Mfr.Part #:
ERZ-V05D330
Datasheet:
Description:
Varistors 7.00mmL×4.50mmW×5.00mmH Through Hole 1.4 nF 1.1 J Voltage Rating (AC):20 V Voltage Rating (DC):26 V
| Parameter | Value |
|---|---|
| Capacitance | 1.4 nF |
| Voltage Rating (DC) | 26 V |
| Termination | Radial |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 20 V |
| Power Rating | 10 mW |
| Material | Zinc |
| Packaging | Bulk |
| Depth | 4.5 mm |
| Thickness | 4.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 26 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 20 V |
| Clamping Voltage | 73 V |
| Varistor Voltage | 33 V |
| Max Voltage Rating (AC) | 20 V |
| Max Surge Current | 250 A |
| Energy | 1.1 J |
| Clamping Current | 1 A |
| Voltage Tolerance | 10 % |
| Max Varistor Voltage | 36 V |
| Min Varistor Voltage | 30 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 1.1 J |
| Peak Surge Current | 250 A |
Stock: 2047
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.08387 | $0.83870 |
| 50 | $0.07733 | $3.86650 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.06198 | $30.99000 |
| 1000 | $0.05942 | $59.42000 |
| 3000 | $0.05719 | $171.57000 |
| 5000 | $0.05505 | $275.25000 |
| 10000 | $0.05386 | $538.60000 |
