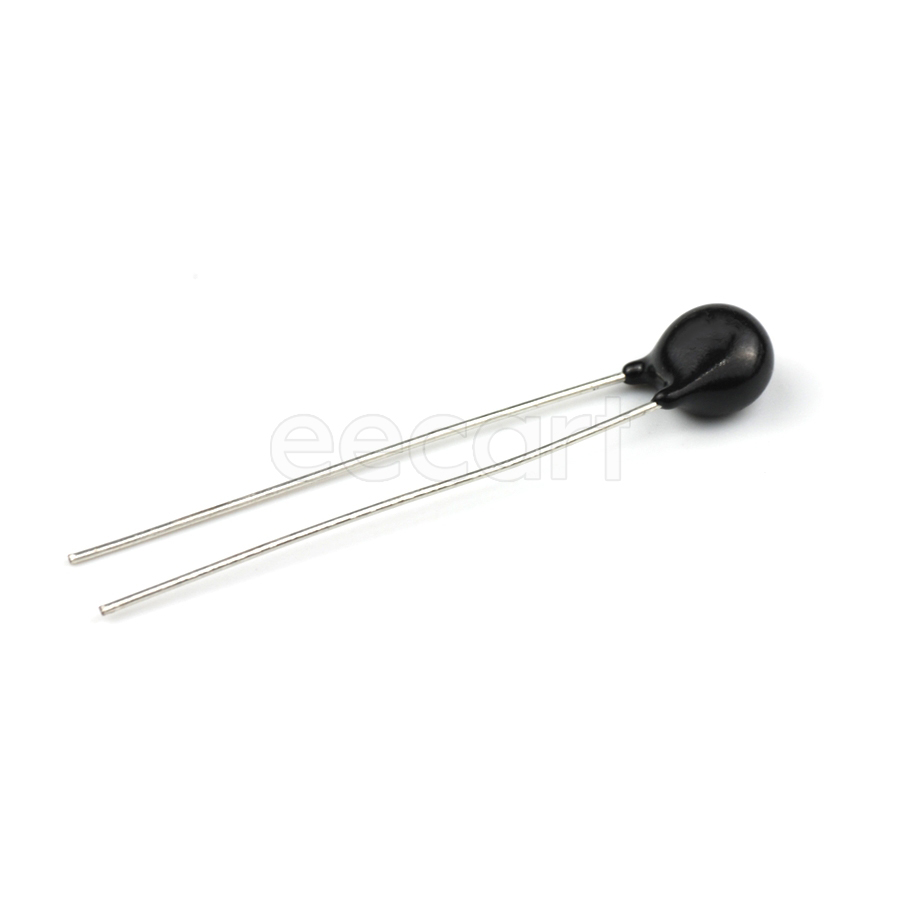

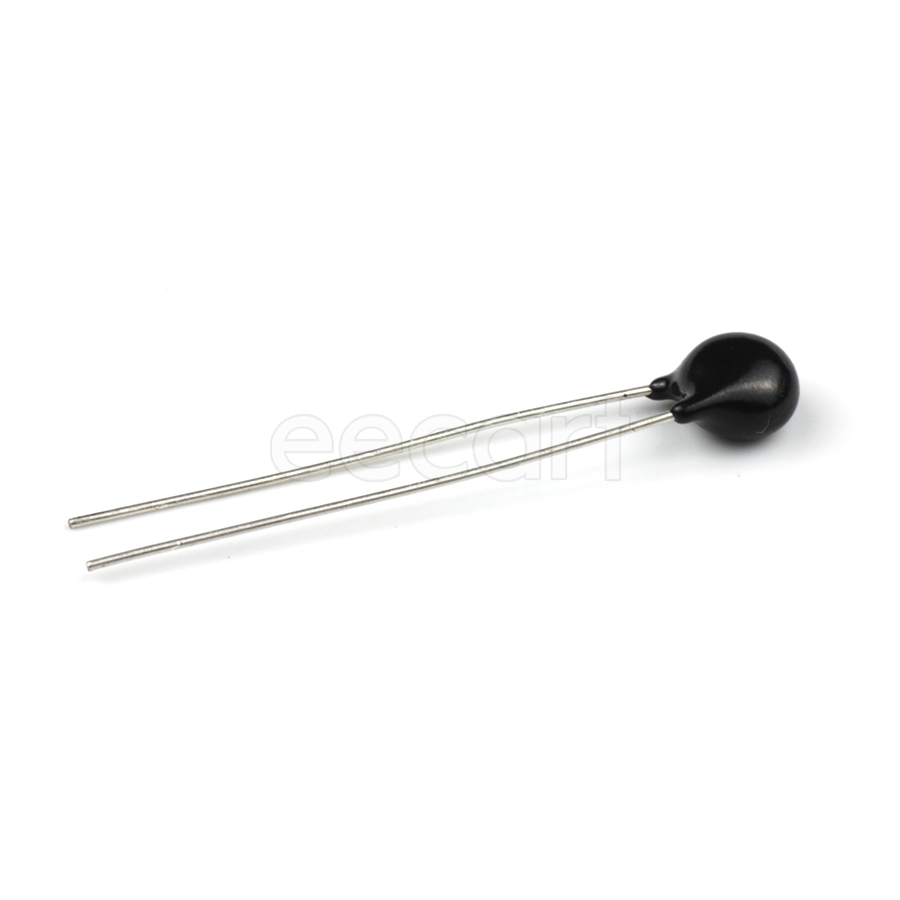

ERZ-V05D431
Manufacturer:
Panasonic
Mfr.Part #:
ERZ-V05D431
Datasheet:
Description:
Varistors 7.00mmL×5.6mmW×10mmH Through Hole 70 pF 13.5 J Voltage Rating (AC):275 V Voltage Rating (DC):350 V
| Parameter | Value |
|---|---|
| Capacitance | 70 pF |
| Voltage Rating (DC) | 350 V |
| Termination | Radial |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 275 V |
| Power Rating | 100 mW |
| Material | Zinc |
| Packaging | Bulk |
| Voltage Rating | 350 V |
| Depth | 5.6 mm |
| Thickness | 5.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 350 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 275 V |
| Max Output Current | 5 A |
| Clamping Voltage | 745 V |
| Varistor Voltage | 430 V |
| Max Voltage Rating (AC) | 275 V |
| Max Surge Current | 800 A |
| Energy | 20 J |
| Clamping Current | 5 A |
| Voltage Tolerance | 10 % |
| Max Varistor Voltage | 473 V |
| Min Varistor Voltage | 387 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 13.5 J |
| Peak Surge Current | 800 A |
Stock: 2435
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.07951 | $0.79510 |
| 50 | $0.07529 | $3.76450 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.06198 | $30.99000 |
| 1000 | $0.05942 | $59.42000 |
| 3000 | $0.05657 | $169.71000 |
| 5000 | $0.05386 | $269.30000 |
