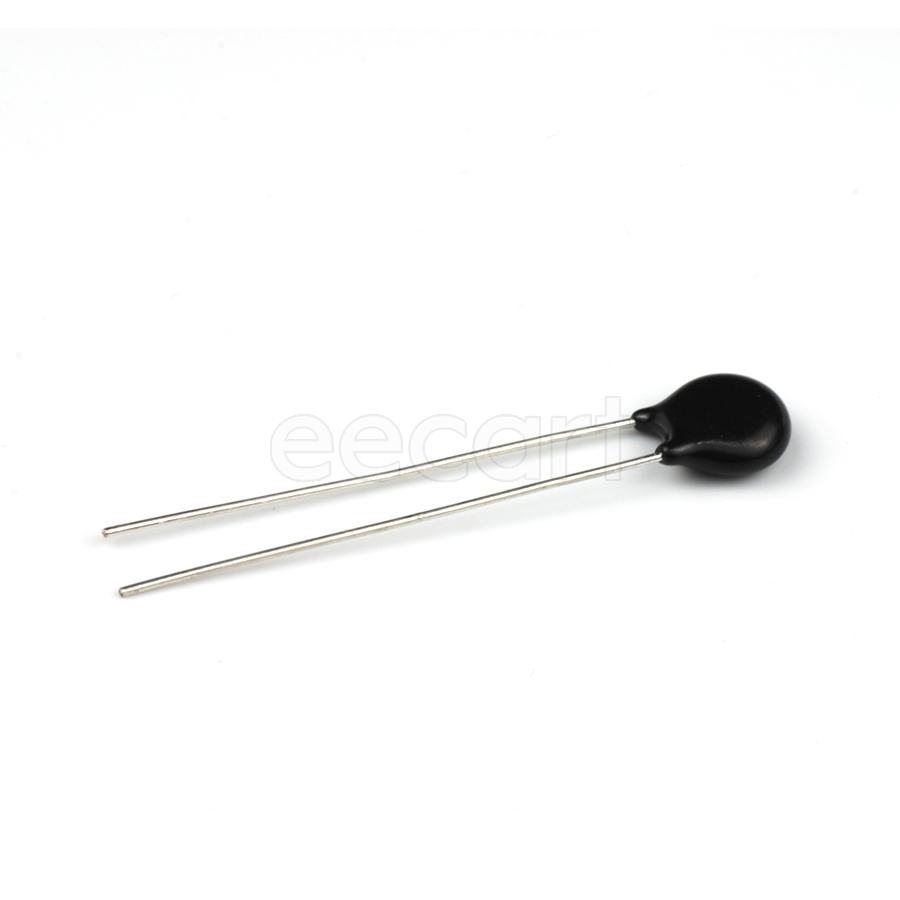

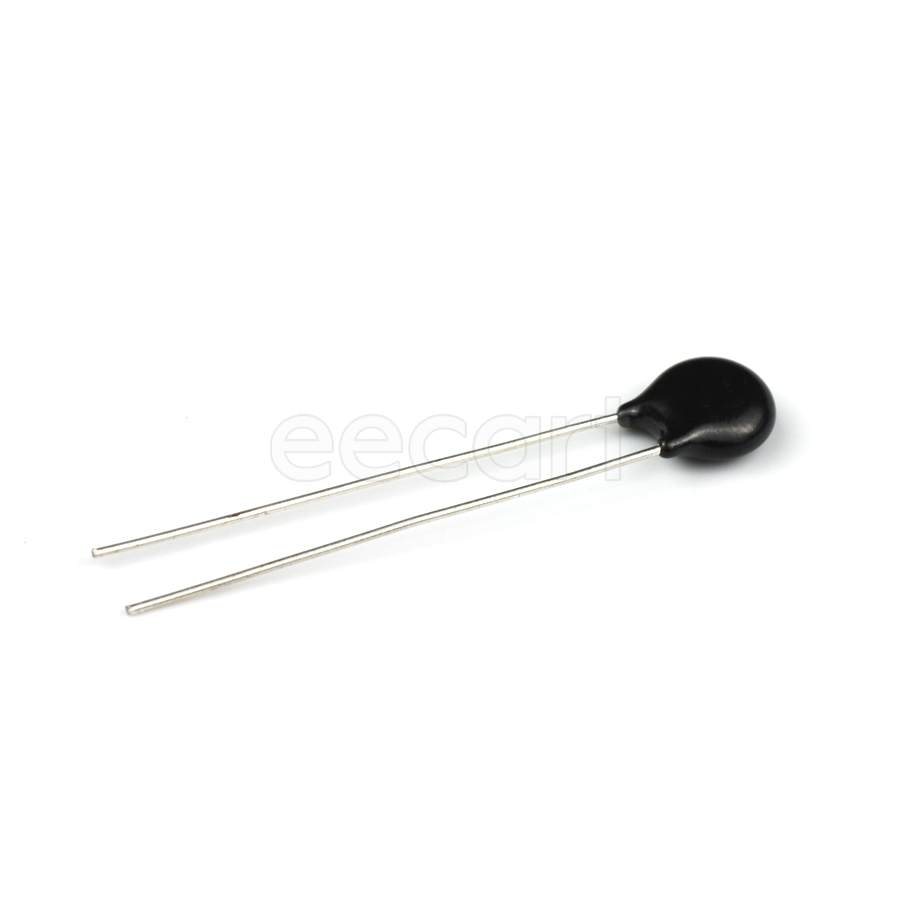

ERZ-V07D390
Manufacturer:
Panasonic
Mfr.Part #:
ERZ-V07D390
Datasheet:
Description:
Varistors 8.50mmL×4.80mmW×11.50mmH Through Hole 1.6 nF 2.4 J Voltage Rating (AC):25 V Voltage Rating (DC):31 V
| Parameter | Value |
|---|---|
| Capacitance | 1.6 nF |
| Voltage Rating (DC) | 31 V |
| Termination | Radial |
| Diameter | 7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 25 V |
| Power Rating | 20 mW |
| Material | Zinc |
| Packaging | Bulk |
| Voltage Rating | 39 V |
| Depth | 4.8 mm |
| Thickness | 4.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 31 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 25 V |
| Max Output Current | 500 A |
| Clamping Voltage | 77 V |
| Varistor Voltage | 39 V |
| Max Voltage Rating (AC) | 25 V |
| Max Surge Current | 500 A |
| Energy | 2.4 J |
| Clamping Current | 2.5 A |
| Voltage Tolerance | 10 % |
| Max Varistor Voltage | 43 V |
| Min Varistor Voltage | 35 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 2.4 J |
| Peak Surge Current | 500 A |
Stock: 10942
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.08977 | $0.89770 |
| 50 | $0.08348 | $4.17400 |
| 100 | $0.07763 | $7.76300 |
| 500 | $0.06763 | $33.81500 |
| 1000 | $0.06386 | $63.86000 |
| 3000 | $0.06097 | $182.91000 |
| 5000 | $0.05822 | $291.10000 |
