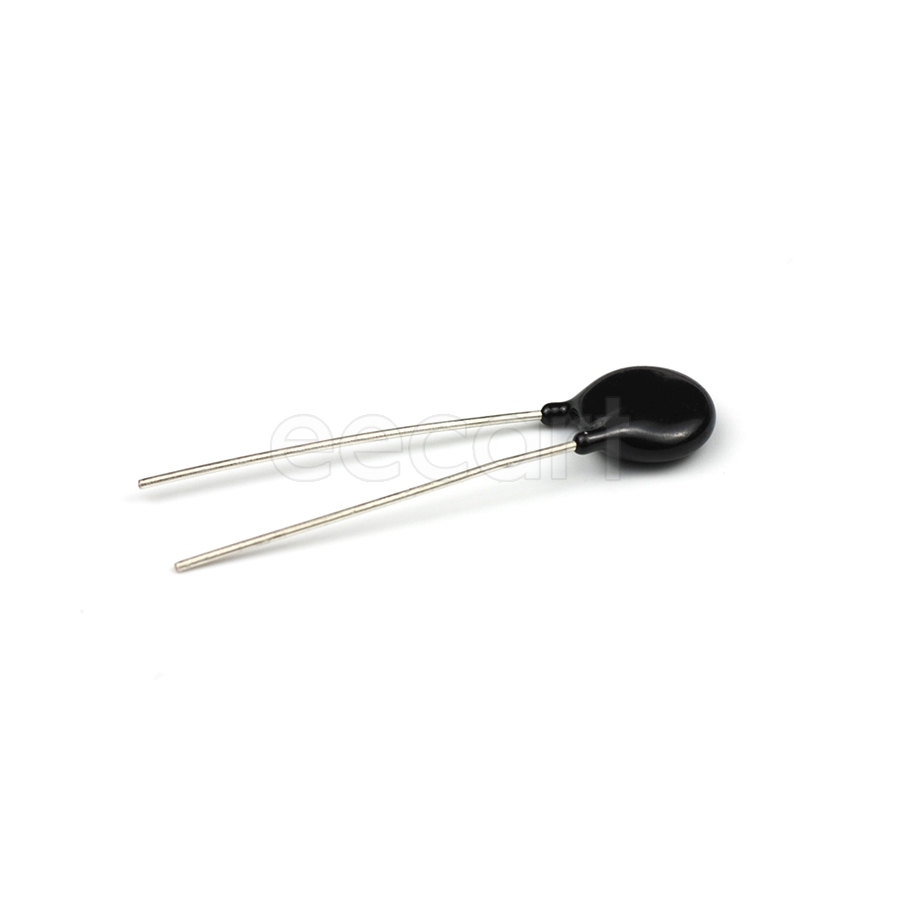

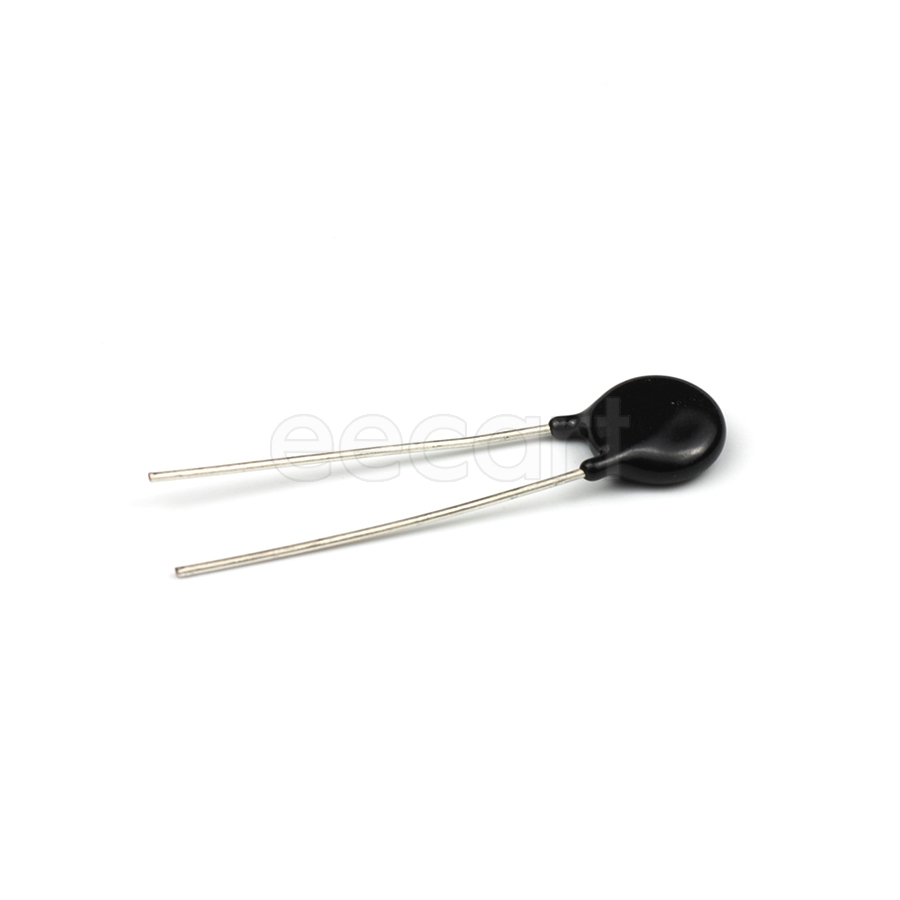

ERZ-V10D680
Manufacturer:
Panasonic
Mfr.Part #:
ERZ-V10D680
Datasheet:
Description:
Varistors 11.50mmL×5.30mmW×14.50mmH Through Hole 2.8 nF 9.8 J Voltage Rating (AC):40 V Voltage Rating (DC):56 V
| Parameter | Value |
|---|---|
| Capacitance | 2.8 nF |
| Voltage Rating (DC) | 56 V |
| Length | 14.5 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 40 V |
| Power Rating | 50 mW |
| Material | Zinc |
| Packaging | Bulk |
| Depth | 5.3 mm |
| Thickness | 5.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | No SVHC |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 56 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Clamping Voltage | 135 V |
| Varistor Voltage | 68 V |
| Max Voltage Rating (AC) | 40 V |
| Max Surge Current | 1 kA |
| Energy | 9.8 J |
| Clamping Current | 5 A |
| Max Varistor Voltage | 75 V |
| Min Varistor Voltage | 61 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 9.8 J |
| Peak Surge Current | 1 kA |
Stock: 11
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.13423 | $1.34230 |
| 50 | $0.12446 | $6.22300 |
| 100 | $0.11541 | $11.54100 |
| 500 | $0.10174 | $50.87000 |
| 1000 | $0.09660 | $96.60000 |
| 3000 | $0.09312 | $279.36000 |
| 5000 | $0.08977 | $448.85000 |
