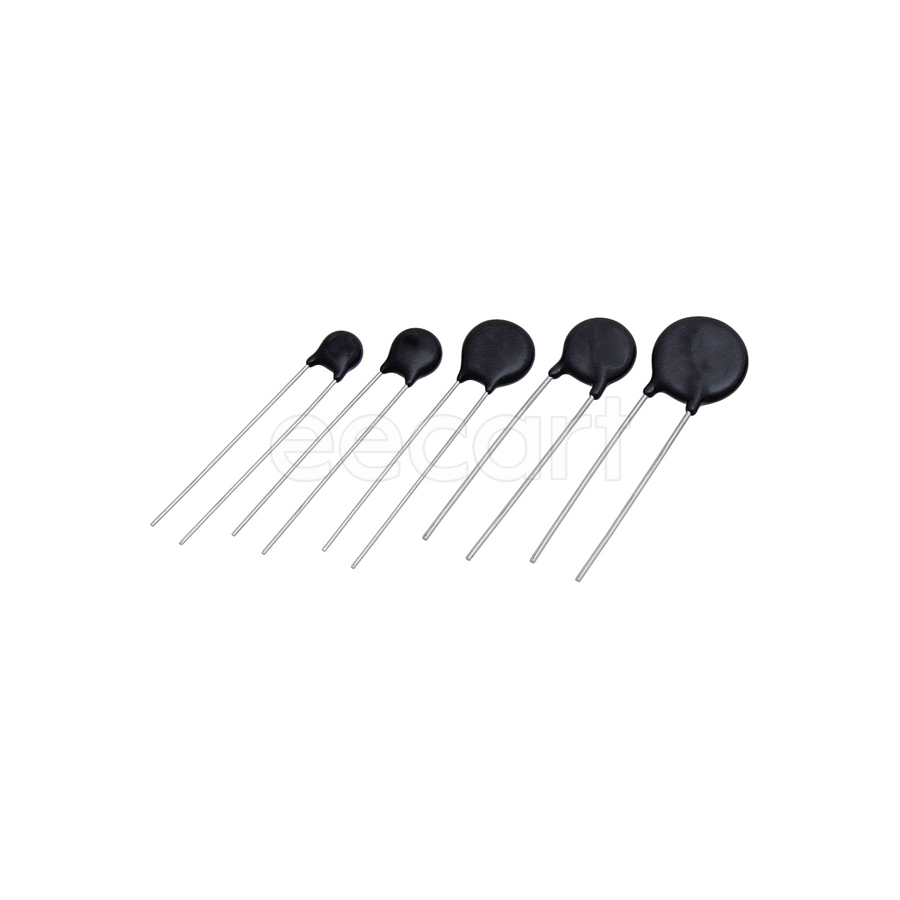

ERZV10D431
Manufacturer:
Panasonic
Mfr.Part #:
ERZV10D431
Datasheet:
Description:
Varistors Disc 11.5mm PCB 270 pF 80 J Voltage Rating (AC):275 V Voltage Rating (DC):350 V
| Parameter | Value |
|---|---|
| Capacitance | 270 pF |
| Voltage Rating (DC) | 350 V |
| Length | 14.5 mm |
| Width | 6 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 275 V |
| Power Rating | 400 mW |
| Height | 14.5 mm |
| Case/Package | Metal |
| Material | Zinc |
| Mount | Radial, Through Hole |
| Packaging | Bulk |
| Voltage Rating | 350 V |
| Depth | 6 mm |
| Thickness | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 350 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 275 V |
| Max Output Current | 3.5 kA |
| Clamping Voltage | 710 V |
| Varistor Voltage | 430 V |
| Max Voltage Rating (AC) | 275 V |
| Max Surge Current | 3.5 kA |
| Energy | 80 J |
| ESD Protection | No |
| Clamping Current | 25 A |
| Voltage Tolerance | 10 % |
| Max Varistor Voltage | 473 V |
| Min Varistor Voltage | 387 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 80 J |
| Peak Surge Current | 3.5 kA |
Stock: 50
Distributors
pcbx
pcbxUnit Price$0.36701
Ext.Price$0.36701
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36701 | $0.36701 |
| 10 | $0.28531 | $2.85310 |
| 50 | $0.24960 | $12.48000 |
| 100 | $0.20719 | $20.71900 |
| 500 | $0.18770 | $93.85000 |
| 1000 | $0.17567 | $175.67000 |
