ESD1P0RFWH6327XTSA1
Manufacturer:
Infineon
Mfr.Part #:
ESD1P0RFWH6327XTSA1
Datasheet:
Description:

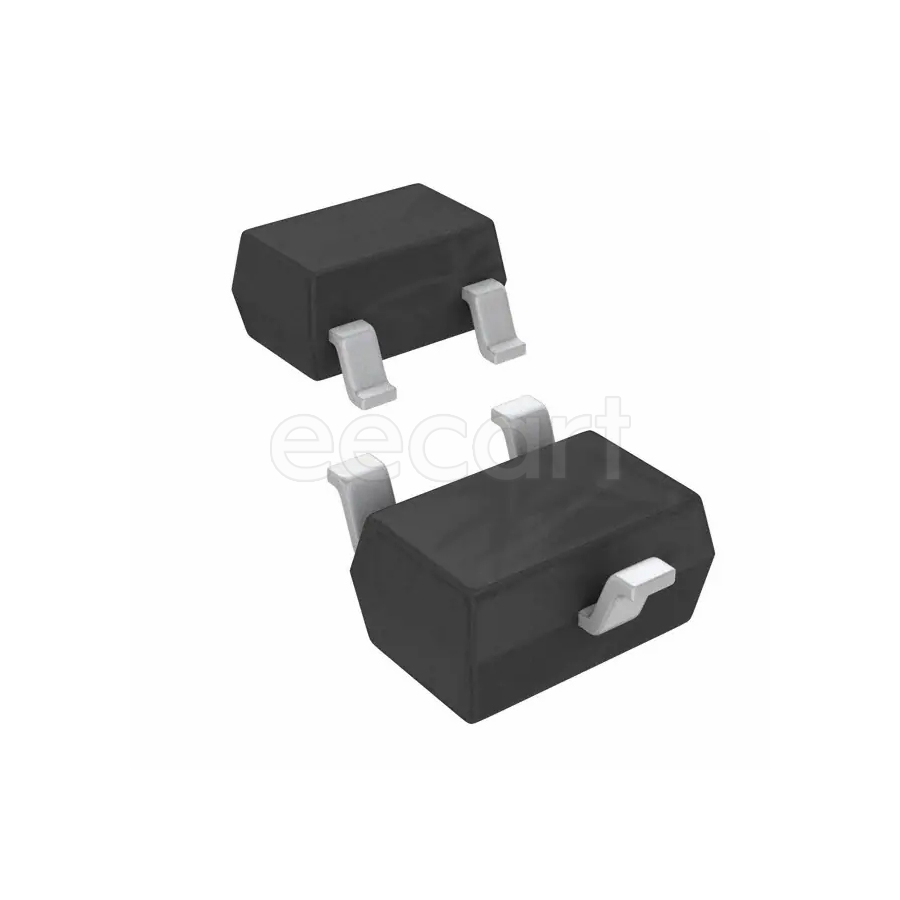

TVS Diodes PG-SOT323-3 SMD/SMT Working Voltage:70 V Clamping Voltage:12 V
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Length | 2 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Leakage Current | 100 nA |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Working Voltage | 70 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Peak Pulse Current | 10 A |
| Number of Channels | 1 |
| Number of Lines | 1 |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Reverse Standoff Voltage | 70 V |
| Clamping Voltage | 12 V |
| Power Line Protection | No |
| Max Surge Current | 10 A |
| Number of Bidirectional Channels | 1 |
| Reverse Current | 100 µA |
| Package Quantity | 3000 |
| Diode Capacitance | 1 pF |
