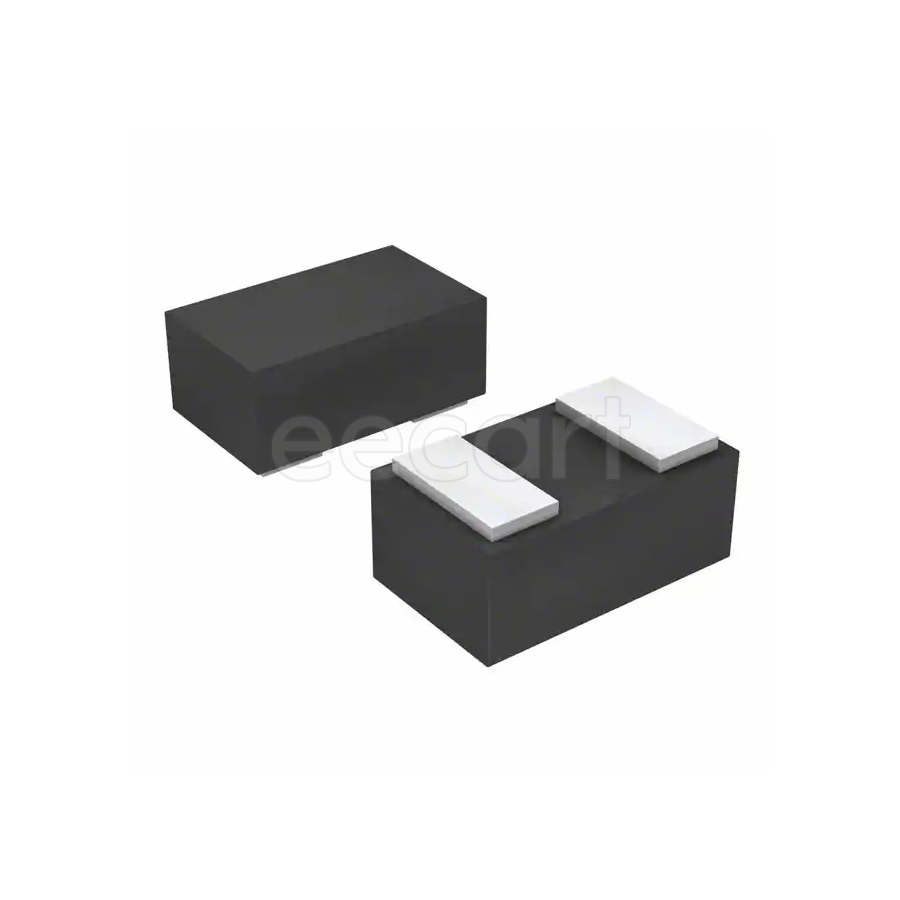

ESD203B102ELE6327XTMA1
Manufacturer:
Infineon
Mfr.Part #:
ESD203B102ELE6327XTMA1
Datasheet:
Description:
TVS Diodes TSLP-2-20 SMD/SMT Working Voltage:12 V Breakdown Voltage:16 V Clamping Voltage:17 V Peak Pulse Power:115 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 9 pF |
| Length | 1 mm |
| Width | 600 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 50 nA |
| Composition(Kit Type) | Zener |
| Height | 260 µm |
| Packaging | Reel |
| Depth | 600 µm |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| Manufacturer Package Identifier | PG-TSLP-2-20 |
| Working Voltage | 12 V |
| Lifecycle Status | NRND (Last Updated: 10 months ago) |
| Max Power Dissipation | 115 W |
| Peak Pulse Current | 5 A |
| Number of Lines | 1 |
| Breakdown Voltage | 16 V |
| Max Reverse Leakage Current | 50 nA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 13.7 V |
| Reverse Standoff Voltage | 13.2 V |
| Clamping Voltage | 17 V |
| Power Line Protection | No |
| Max Surge Current | 5 A |
| Number of Bidirectional Channels | 1 |
| ESD Protection | Yes |
| Reverse Current | 50 µA |
| Package Quantity | 15000 |
| Peak Pulse Power | 115 W |
| Number of Channels | 1 |
| Diode Capacitance | 9 pF |
Stock: 9177
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.13764 | $1.37640 |
| 50 | $0.09044 | $4.52200 |
| 100 | $0.05942 | $5.94200 |
| 500 | $0.05634 | $28.17000 |
| 1000 | $0.05258 | $52.58000 |
| 3000 | $0.05228 | $156.84000 |
| 5000 | $0.05198 | $259.90000 |
| 10000 | $0.04634 | $463.40000 |
