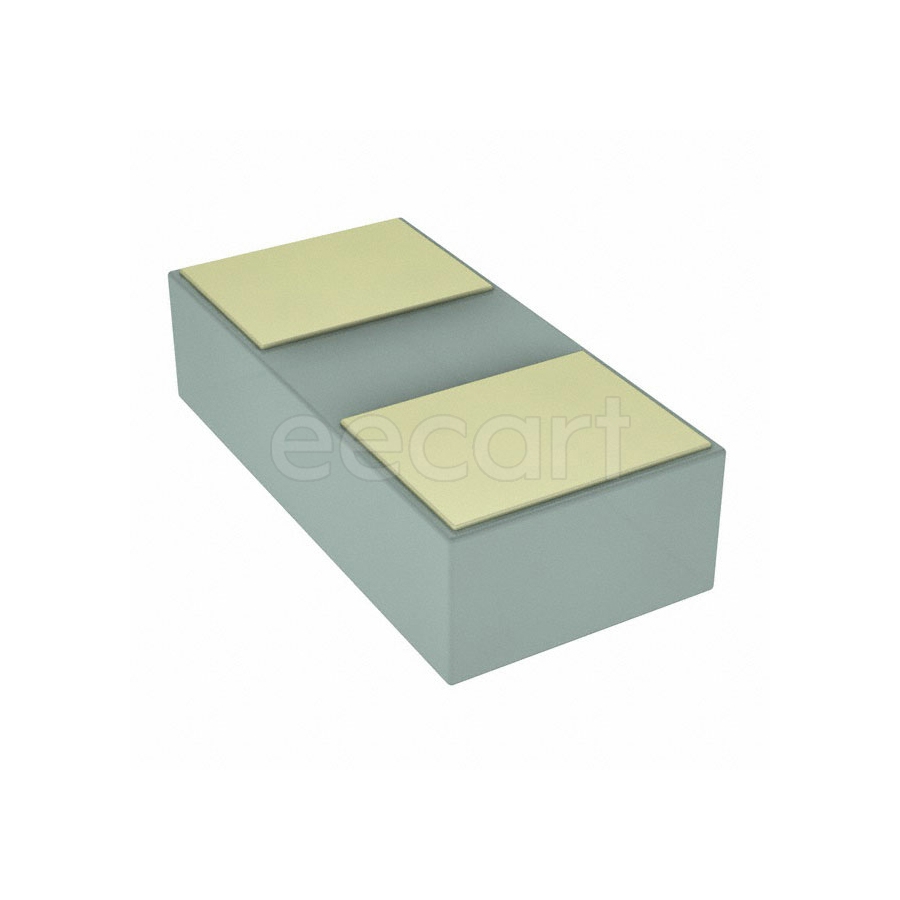

ESD231B1W0201E6327XTSA1
Manufacturer:
Infineon
Mfr.Part #:
ESD231B1W0201E6327XTSA1
Datasheet:
Description:
TVS Diodes WLL-2-1 SMD/SMT Working Voltage:5.5 V Clamping Voltage:10 V Peak Pulse Power:132 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 3.5 pF |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 160 µm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Peak Pulse Current | 12 A |
| Number of Channels | 1 |
| Number of Lines | 1 |
| Direction(Counting Sequence) | Bidirectional |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 10 V |
| Max Surge Current | 12 A |
| Reverse Current | 20 nA |
| Package Quantity | 15000 |
| Peak Pulse Power | 132 W |
| Working Voltage | 5.5 V |
| Polarity | Bidirectional |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 4.1 pF |
Stock: 9
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.03822 | $0.38220 |
| 50 | $0.02853 | $1.42650 |
| 100 | $0.02129 | $2.12900 |
| 500 | $0.02001 | $10.00500 |
| 1000 | $0.01813 | $18.13000 |
| 3000 | $0.01782 | $53.46000 |
| 5000 | $0.01752 | $87.60000 |
| 10000 | $0.01693 | $169.30000 |
