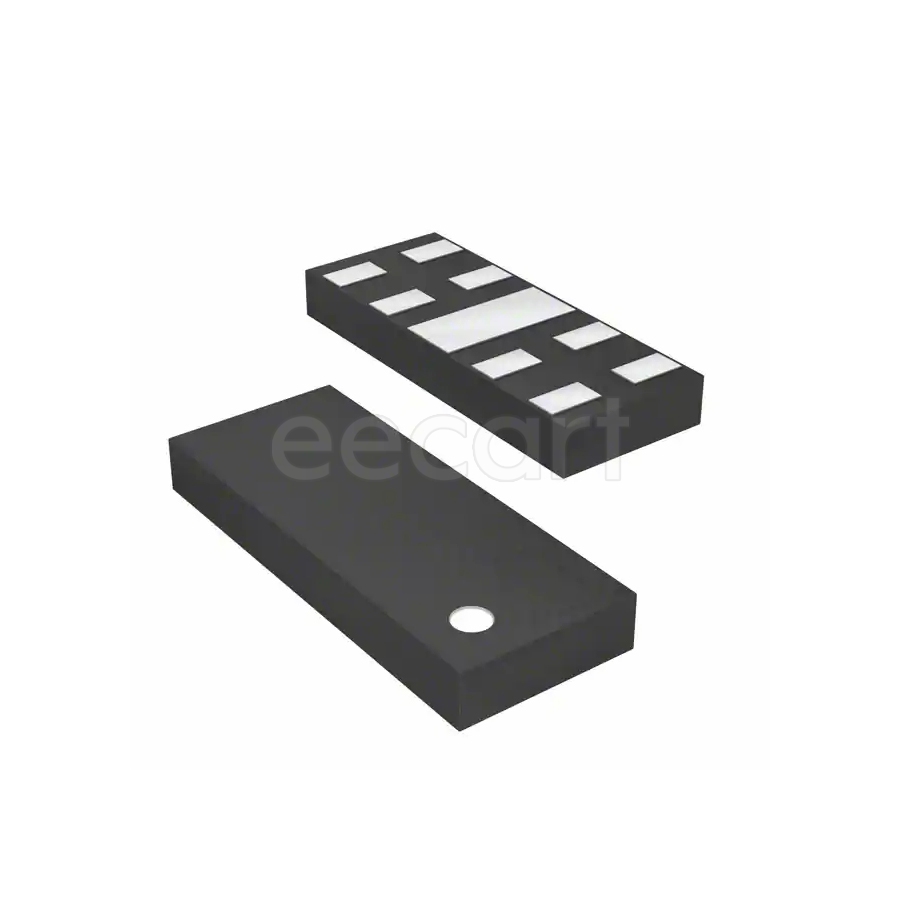

ESD3V3U4ULCE6327XTSA1
Manufacturer:
Infineon
Mfr.Part #:
ESD3V3U4ULCE6327XTSA1
Datasheet:
Description:
TVS Diodes TSLP-9-1 SMD/SMT Working Voltage:3.3 V Clamping Voltage:8 V Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 650 fF |
| Length | 2.3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 9 |
| Leakage Current | 50 nA |
| Composition(Kit Type) | Zener |
| Packaging | Reel |
| Depth | 1 mm |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Working Voltage | 3.3 V |
| Lifecycle Status | Obsolete (Last Updated: 10 months ago) |
| Peak Pulse Current | 3 A |
| Number of Lines | 4 |
| Direction(Counting Sequence) | Unidirectional |
| Reverse Standoff Voltage | 3.3 V |
| Clamping Voltage | 8 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 4 |
| Max Surge Current | 3 A |
| Reverse Current | 50 µA |
| Package Quantity | 7500 |
| Number of Channels | 4 |
| Polarity | Unidirectional |
| Diode Capacitance | 0.4 pF |
