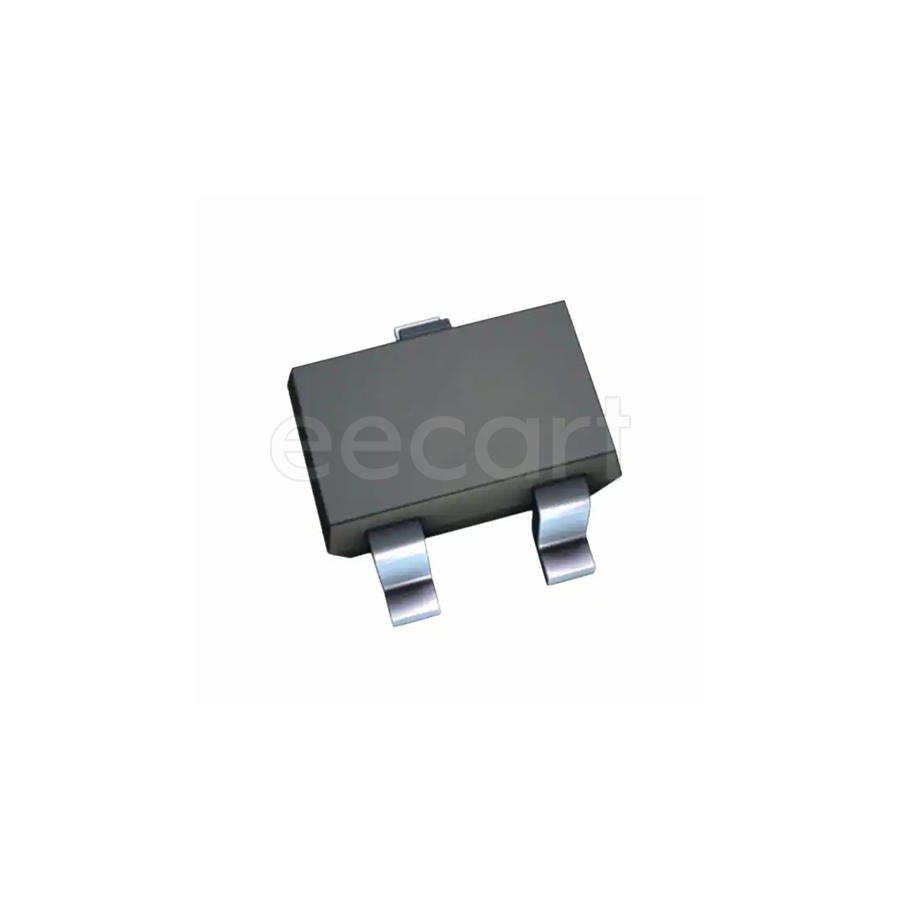

ESDA25W
Manufacturer:
STMicroelectronics
Mfr.Part #:
ESDA25W
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-323-3 SMD/SMT Working Voltage:24 V Breakdown Voltage:25 V 400 W 65 pF
| Parameter | Value |
|---|---|
| Capacitance | 65 pF |
| Voltage Rating (DC) | 25 V |
| Length | 2 mm |
| Width | 1.25 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Leakage Current | 1 µA |
| Power Rating | 150 W |
| Composition(Kit Type) | Zener |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 2 |
| Working Voltage | 24 V |
| Operating Supply Voltage | 1.2 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 400 W |
| Number of Channels | 2 |
| Breakdown Voltage | 25 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 25 V |
| Reverse Standoff Voltage | 24 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 2 |
| Reverse Breakdown Voltage | 25 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Breakdown Voltage | 30 V |
| Peak Pulse Power | 400 W |
| Diode Capacitance | 65 pF |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Peak Pulse Current | 15 A |
Stock: 6779
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.15987 | $1.59870 |
| 50 | $0.12646 | $6.32300 |
| 100 | $0.10003 | $10.00300 |
| 500 | $0.07575 | $37.87500 |
| 1000 | $0.06635 | $66.35000 |
| 3000 | $0.04753 | $142.59000 |
| 5000 | $0.04156 | $207.80000 |
| 10000 | $0.03634 | $363.40000 |
