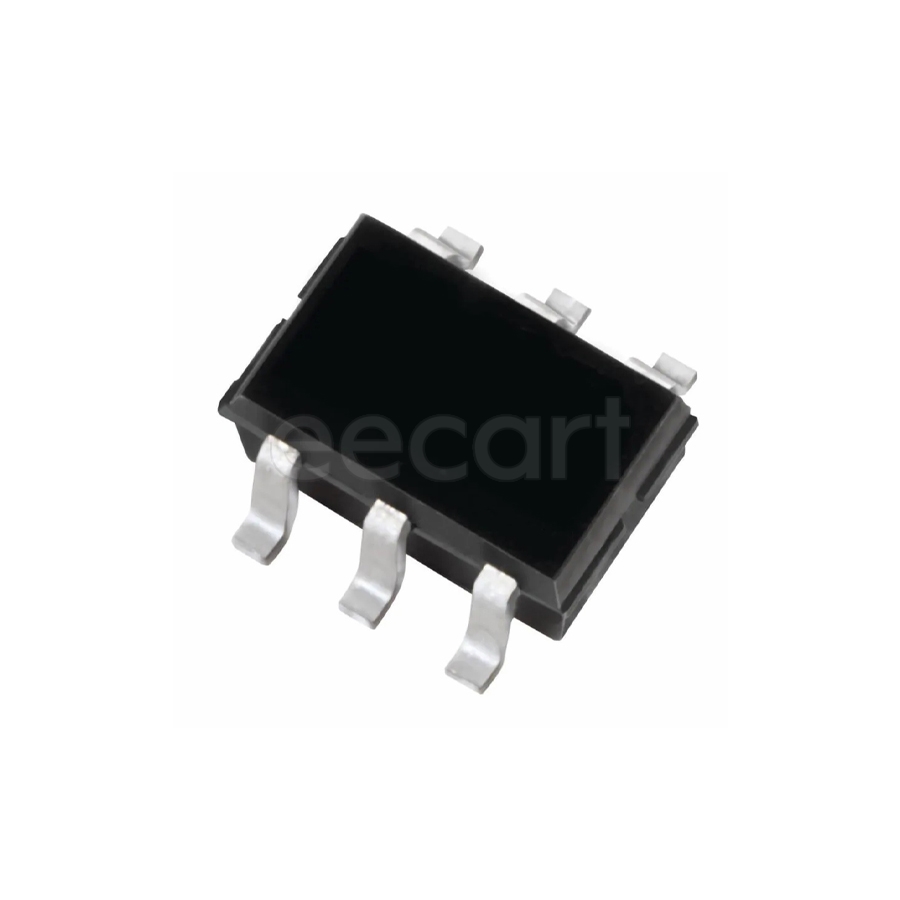

ESDA6V1-5W6
Manufacturer:
STMicroelectronics
Mfr.Part #:
ESDA6V1-5W6
Datasheet:
Description:
TVS Diodes SOT323-6 SMD/SMT Working Voltage:3 V Breakdown Voltage:6.1 V Peak Pulse Power:100 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 50 pF |
| Voltage Rating (DC) | 6.1 V |
| Length | 2.2 mm |
| Width | 2.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Leakage Current | 1 µA |
| Power Rating | 100 W |
| Composition(Kit Type) | Zener |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 5 |
| Working Voltage | 3 V |
| Operating Supply Voltage | 1.25 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 100 W |
| Peak Pulse Current | 15 A |
| Number of Channels | 5 |
| Breakdown Voltage | 6.1 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 6.1 V |
| Reverse Standoff Voltage | 3 V |
| Peak Pulse Power | 100 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 5 |
| Reverse Breakdown Voltage | 6.1 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Junction Temperature (Tj) | 125 °C |
| Max Breakdown Voltage | 7.2 V |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 50 pF |
Stock: 837
Distributors
pcbx
pcbxUnit Price$0.16579
Ext.Price$0.16579
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16579 | $0.16579 |
| 10 | $0.14750 | $1.47500 |
| 50 | $0.13123 | $6.56150 |
| 100 | $0.11395 | $11.39500 |
| 500 | $0.09894 | $49.47000 |
| 1000 | $0.09522 | $95.22000 |
| 3000 | $0.09163 | $274.89000 |
| 5000 | $0.08653 | $432.65000 |
