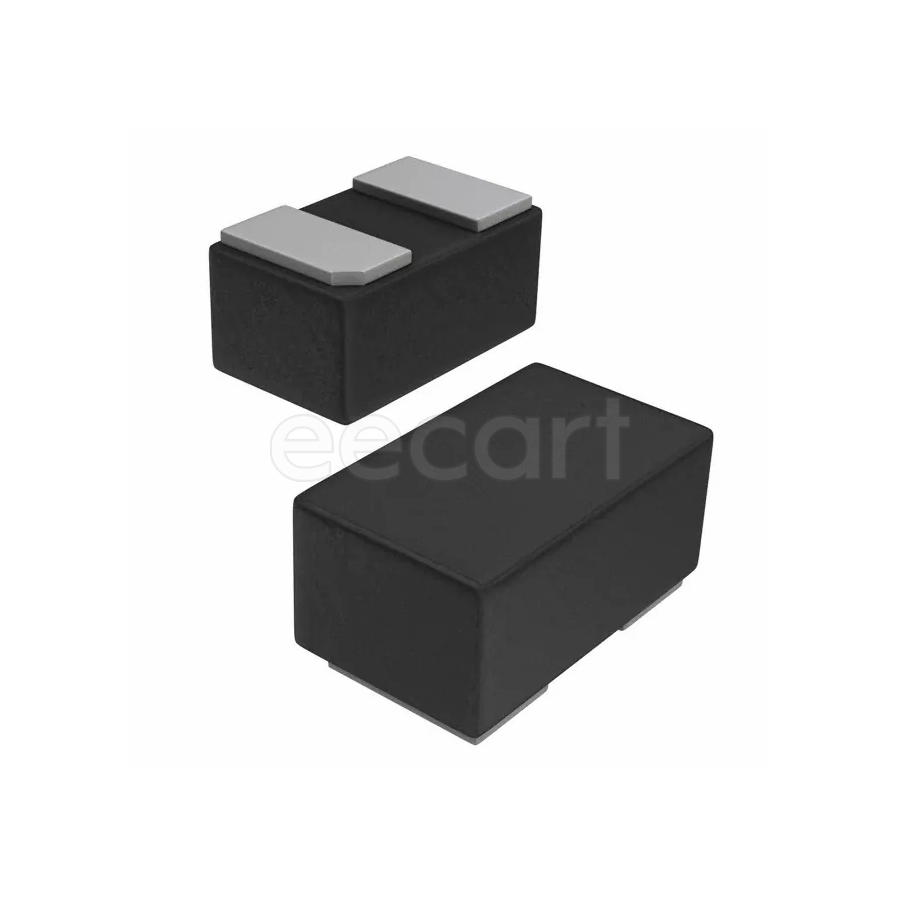

ESDALC12-1T2
Manufacturer:
STMicroelectronics
Mfr.Part #:
ESDALC12-1T2
Datasheet:
Description:
TVS Diodes SOD-882-2 SMD/SMT Working Voltage:12 V Breakdown Voltage:12 V Clamping Voltage:20 V Peak Pulse Power:50 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 18 pF |
| Length | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 200 nA |
| Composition(Kit Type) | Zener |
| Packaging | Reel |
| Depth | 600 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Contact Plating | Gold |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Peak Pulse Current | 1 A |
| Number of Channels | 1 |
| Breakdown Voltage | 12 V |
| Max Repetitive Reverse Voltage (Vrrm) | 10 V |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 12 V |
| Reverse Standoff Voltage | 10 V |
| Clamping Voltage | 20 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Breakdown Voltage | 14 V |
| Peak Pulse Power | 50 W |
| Working Voltage | 12 V |
| Diode Capacitance | 18 pF |
| Voltage ESD Air Gap | 25 kV |
| Voltage ESD Contact | 20 kV |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.07738
Ext.Price$0.07738
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07738 | $0.07738 |
| 10 | $0.07641 | $0.76410 |
| 50 | $0.07546 | $3.77300 |
| 100 | $0.07459 | $7.45900 |
| 500 | $0.07372 | $36.86000 |
