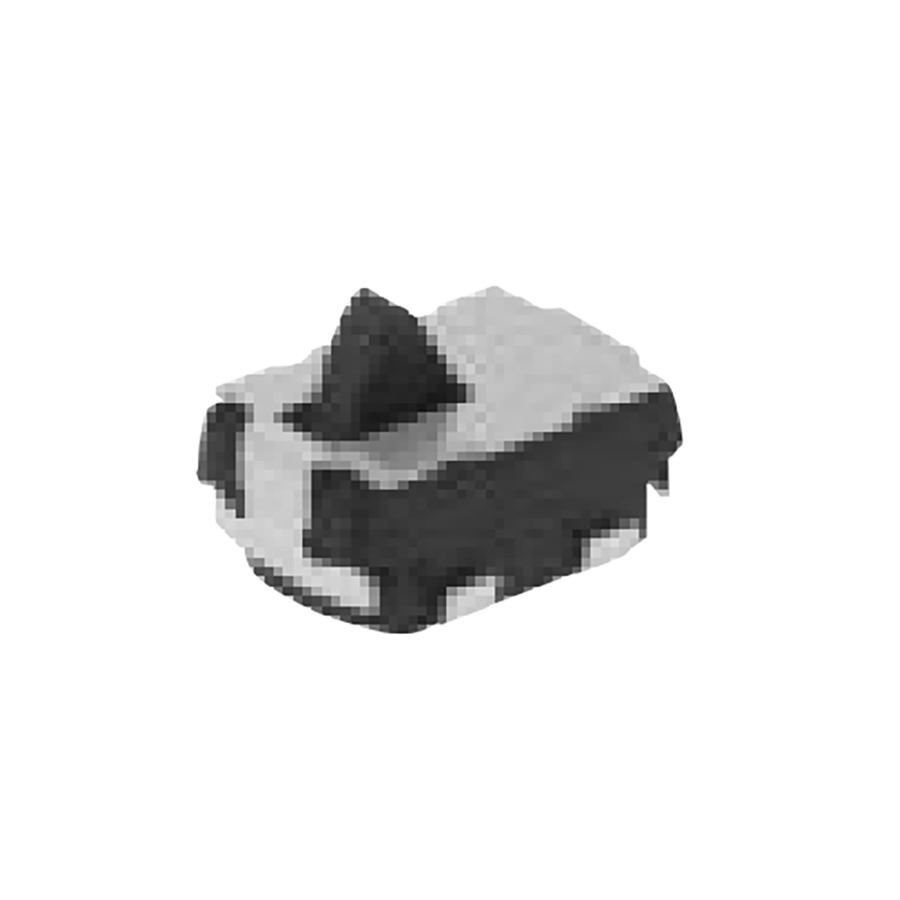

ESE16J001
Manufacturer:
Panasonic
Mfr.Part #:
ESE16J001
Datasheet:
Description:
Snap Action / Limit Switches SMD/SMT SPST-NO Off-Mom Current Rating:10 mA Operating Force:250 mN Angled Toggle (Detector)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Width | 2.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Number of Pins | 4 |
| Height | 1.5 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | ESE-16J001 |
| REACH SVHC | Unknown |
| Current Rating | 10 mA |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Switch Function | Off-Mom |
| Electrical Life | 50 kcycles |
| Operating Force | 250 mN |
| Mechanical Life | 50 kcycles |
| Operating Position | 2.2098 mm |
| Contact Current Rating | 10 mA |
| Actuator Type | Angled Toggle (Detector) |
| Termination Style | SMD/SMT |
| Life (Cycles) | 50 kCycles |
