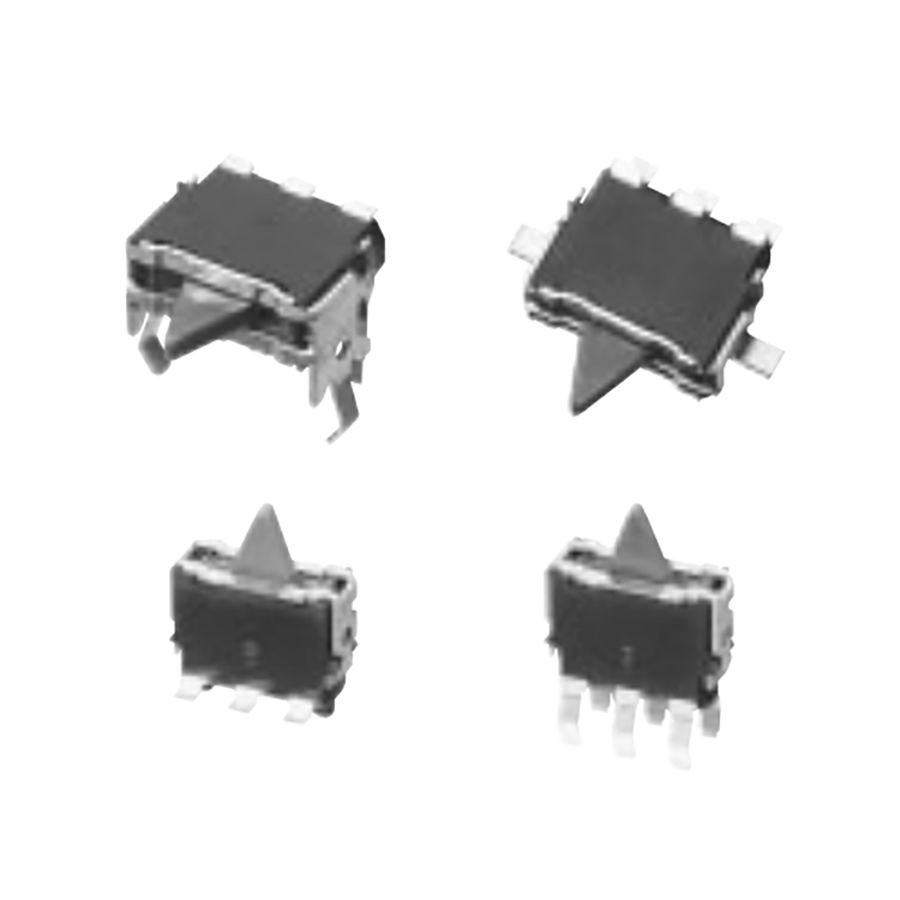

ESE24MH1T
Manufacturer:
Panasonic
Mfr.Part #:
ESE24MH1T
Datasheet:
Description:
Switches PCB Mount SPDT Voltage Rating (DC):5 V Mom-Off-Mom Current Rating:10 mA Angled Toggle (Detector) 350 mN 50 kCycles
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Width | 5.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Height | 3 mm |
| Circuit Type | SPDT |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Tin |
| Number of Terminals | 3 |
| Current Rating | 10 mA |
| Max Voltage Rating (DC) | 5 V |
| Orientation | Right Angle |
| Actuator Length | 2.95 mm |
| Throw Configuration | SPDT |
| Number of Positions | 3 |
| Contact Resistance | 500 mΩ |
| Switch Function | Mom-Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 350 mN |
| Mechanical Life | 50 kcycles |
| Operating Position | 3.3528 mm |
| Contact Current Rating | 10 mA |
| Actuator Type | Angled Toggle (Detector) |
| Termination Style | SMD (SMT) Tab |
| Life (Cycles) | 50 kCycles |
| Schedule B | 8536509065 |
