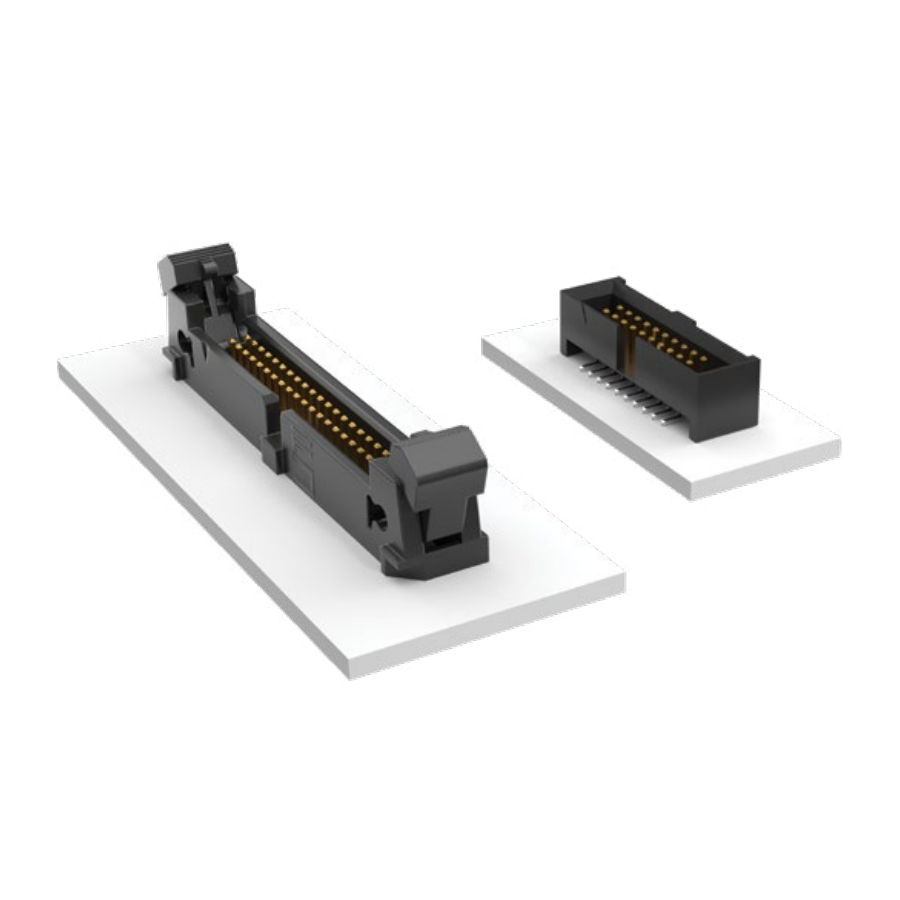

ESHF-105-01-L-D-SM
Manufacturer:
Samtec
Mfr.Part #:
ESHF-105-01-L-D-SM
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 16.51 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.59 mm |
| Packaging | Bulk |
| Depth | 5.59 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
Stock: 612
Distributors
pcbx
pcbxUnit Price$2.19033
Ext.Price$2.19033
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.19033 | $2.19033 |
| 10 | $1.95616 | $19.56160 |
| 25 | $1.74702 | $43.67550 |
| 50 | $1.56024 | $78.01200 |
| 100 | $1.39343 | $139.34300 |
| 300 | $1.24446 | $373.33800 |
| 500 | $1.11141 | $555.70500 |
| 1000 | $0.99259 | $992.59000 |
| 3000 | $0.88647 | $2659.41000 |
| 5000 | $0.79170 | $3958.50000 |
| 10000 | $0.70703 | $7070.30000 |
