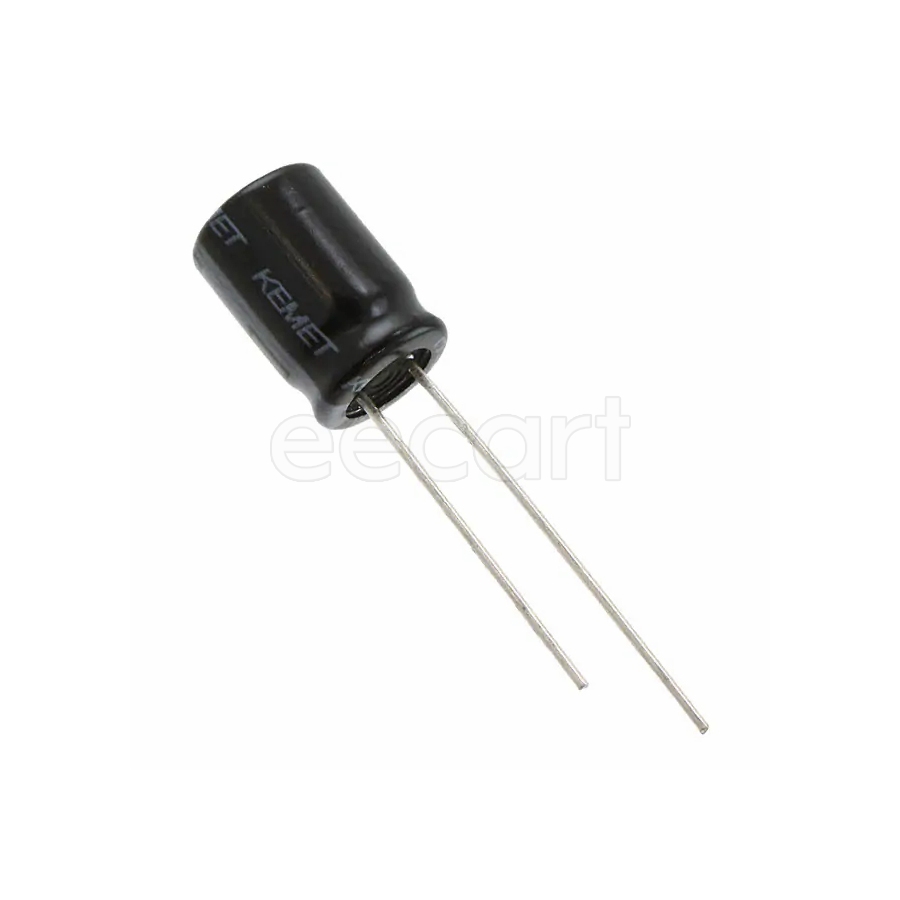

ESK228M025AL4AA
Manufacturer:
KEMET
Mfr.Part #:
ESK228M025AL4AA
Datasheet:
Description:
Aluminum Electrolytic Capacitors 13.00mmD×27.00mmH Through Hole 2.2 mF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 mF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.3 A |
| Height - Seated (Max) | 27 mm |
| Length | 25 mm |
| Termination | Radial |
| Diameter | 13 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 550 µA |
| Dissipation Factor | 0.14 % |
| Height | 25 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 600 µm |
| Lead Pitch | 5 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Lead Length | 20 mm |
| Lead/Base Style | Straight |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 1.495 A @ 10 kHz |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
Stock: 3145
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.27357 | $2.73570 |
| 25 | $0.27300 | $6.82500 |
| 50 | $0.27243 | $13.62150 |
| 100 | $0.27187 | $27.18700 |
| 300 | $0.24912 | $74.73600 |
| 500 | $0.22827 | $114.13500 |
| 1000 | $0.21315 | $213.15000 |
| 3000 | $0.19903 | $597.09000 |
| 5000 | $0.18585 | $929.25000 |
| 10000 | $0.17355 | $1735.50000 |
