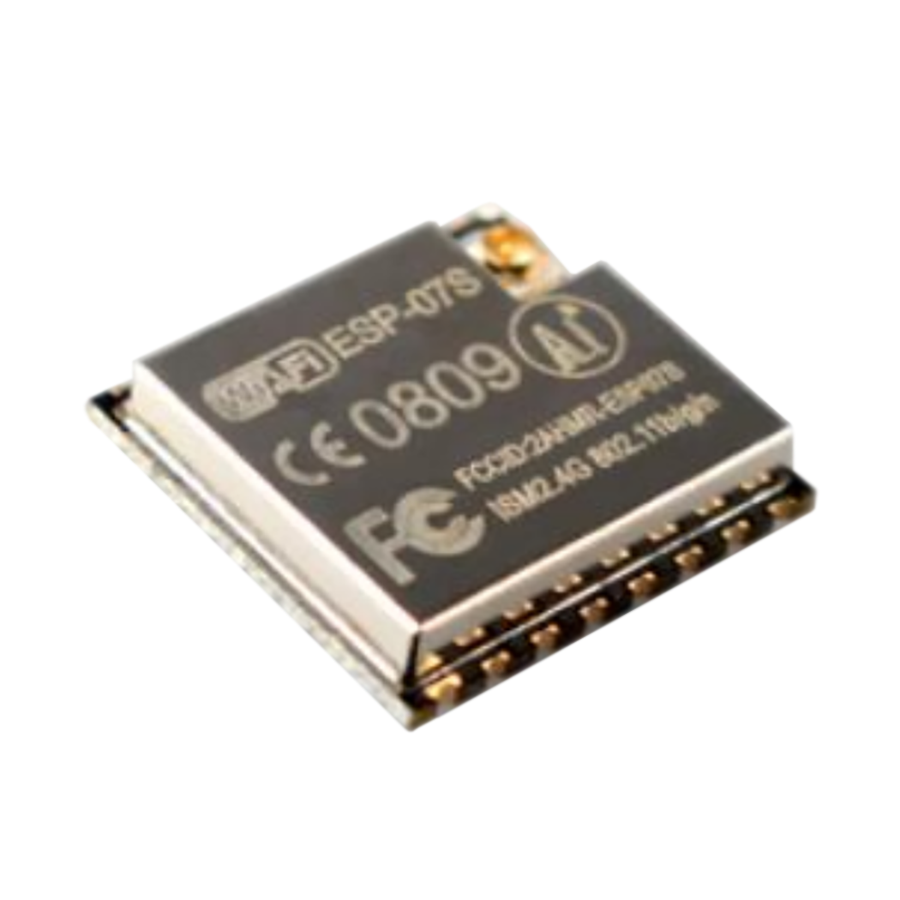

ESP-07S
Manufacturer:
Ai-Thinker
Mfr.Part #:
ESP-07S
Datasheet:
Description:
RF - Transceiver Modules and Modems Module SMD/SMT WiFi 802.11 b/g/n 2.4 GHz to 2.5 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Packaging | Bulk |
| RoHS | Compliant |
| Frequency | 2.4 GHz to 2.5 GHz |
| Interface | GPIO, HSPI, I²C, I²S, Ir Remote Contorl, PWM, UART |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 3 V |
| Data Rate | 72.2 Mbps |
| Serial Rate | 4 Mbps |
| Current - Receiving | 50 mA to 56 mA |
| Current - Transmitting | 120 mA to 170 mA |
| Chip | ESP8266 |
| SPI Flash | 8 MB |
| Output Power | 20.5 dBm |
| Supply Voltage | 3 V to 3.6 V |
| Sensitivity (dBm) | -98 dBm |
| Standard | WiFi |
| Protocol | 802.11 b/g/n |
Stock: 1688
Distributors
pcbx
pcbxUnit Price$3.15149
Ext.Price$3.15149
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.15149 | $3.15149 |
| 10 | $2.77594 | $27.75940 |
| 25 | $2.31271 | $57.81775 |
| 50 | $1.92678 | $96.33900 |
| 100 | $1.60525 | $160.52500 |
| 300 | $1.54974 | $464.92200 |
| 500 | $1.49613 | $748.06500 |
