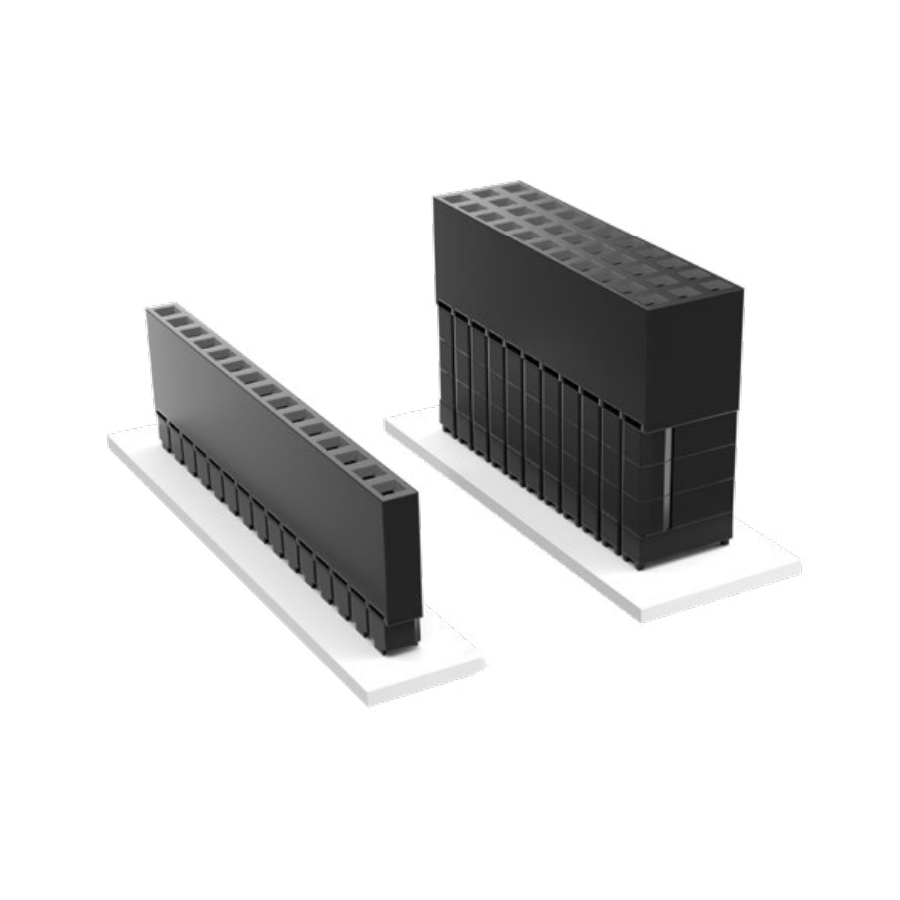

ESQ-104-12-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESQ-104-12-G-D
Datasheet:
Description:
Backplane Connectors Through Hole Number of Positions:8 Number of Rows:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.67 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Connector Type | Elevated Socket |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
Stock: 75
Distributors
pcbx
pcbxUnit Price$1.92103
Ext.Price$1.92103
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.92103 | $1.92103 |
| 10 | $1.70158 | $17.01580 |
| 25 | $1.50720 | $37.68000 |
| 50 | $1.33502 | $66.75100 |
| 100 | $1.18251 | $118.25100 |
| 300 | $1.04742 | $314.22600 |
| 500 | $0.92777 | $463.88500 |
| 1000 | $0.82178 | $821.78000 |
| 3000 | $0.72790 | $2183.70000 |
| 5000 | $0.64475 | $3223.75000 |
| 10000 | $0.57110 | $5711.00000 |
