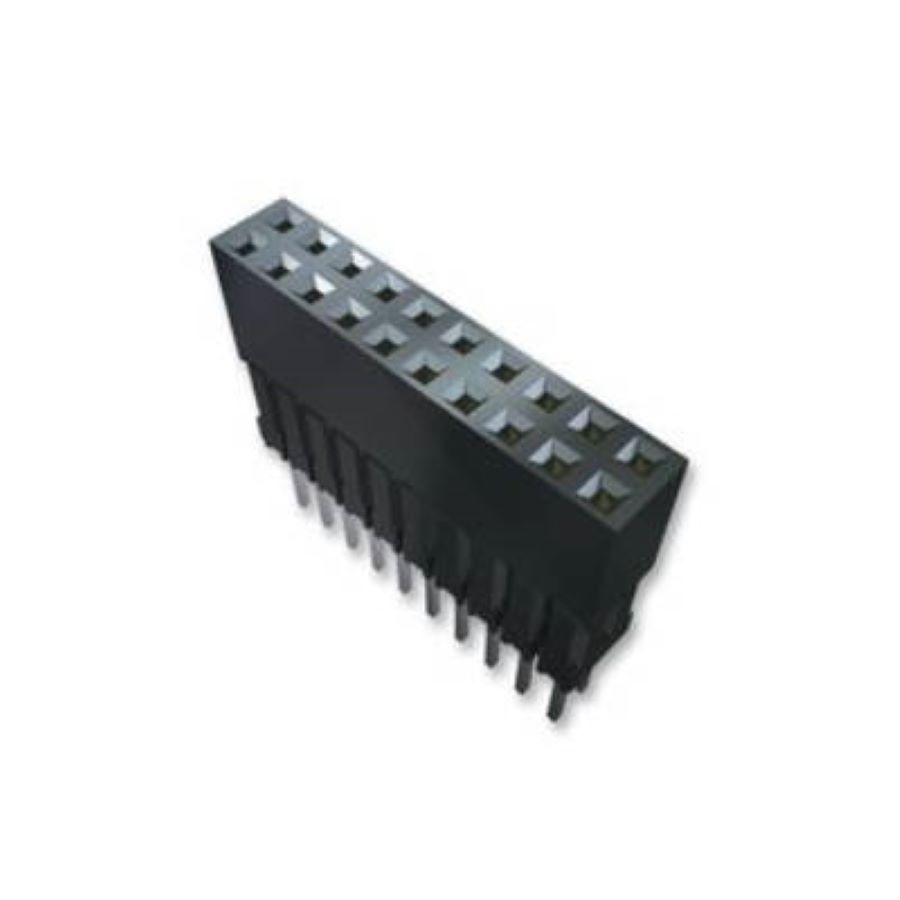

ESQ-105-12-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESQ-105-12-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Elevated Socket Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 13.21 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Elevated Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.29 mm |
Stock: 506
Distributors
pcbx
pcbxUnit Price$1.97745
Ext.Price$1.97745
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.97745 | $1.97745 |
| 10 | $1.75062 | $17.50620 |
| 25 | $1.54981 | $38.74525 |
| 50 | $1.37204 | $68.60200 |
| 100 | $1.21466 | $121.46600 |
| 300 | $1.07533 | $322.59900 |
| 500 | $0.95198 | $475.99000 |
| 1000 | $0.84278 | $842.78000 |
| 3000 | $0.74611 | $2238.33000 |
| 5000 | $0.66053 | $3302.65000 |
| 10000 | $0.58477 | $5847.70000 |
