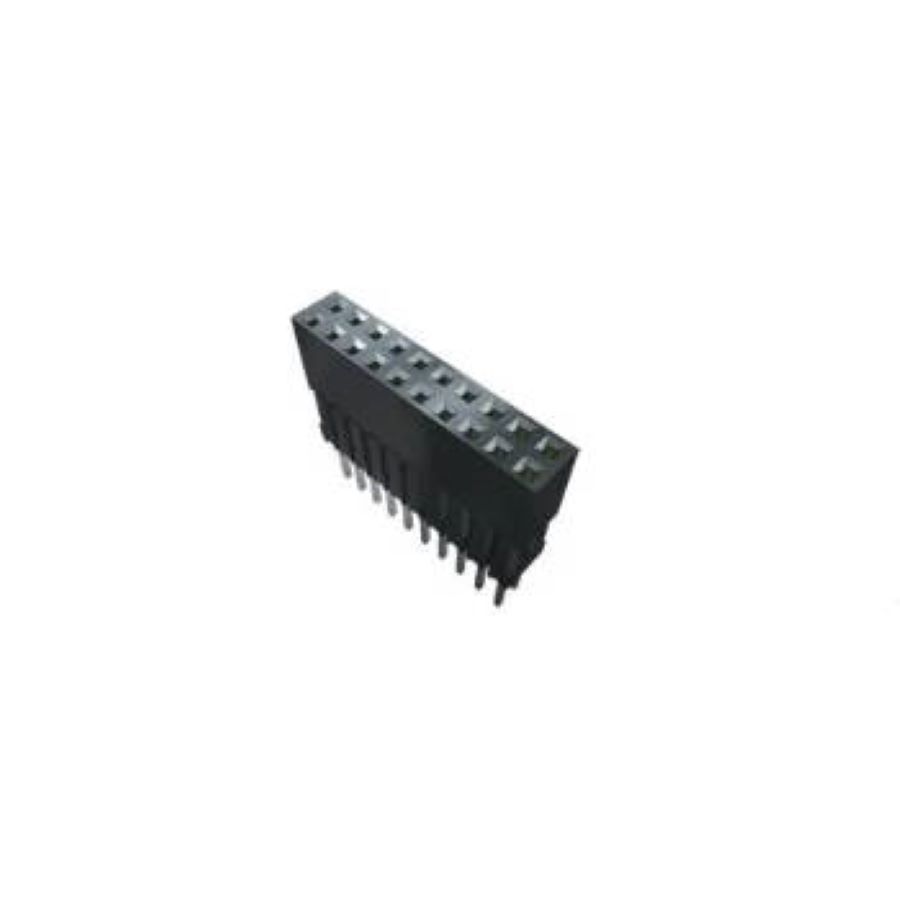

ESQ-106-12-G-S
Manufacturer:
Samtec
Mfr.Part #:
ESQ-106-12-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Elevated Socket Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.75 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 6 |
| Connector Type | Elevated Socket |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.29 mm |
Stock: 400
Distributors
pcbx
pcbxUnit Price$1.20801
Ext.Price$1.20801
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20801 | $1.20801 |
| 10 | $1.06974 | $10.69740 |
| 25 | $0.94729 | $23.68225 |
| 50 | $0.83886 | $41.94300 |
| 100 | $0.74284 | $74.28400 |
| 300 | $0.65781 | $197.34300 |
| 500 | $0.58251 | $291.25500 |
| 1000 | $0.51583 | $515.83000 |
| 3000 | $0.45679 | $1370.37000 |
| 5000 | $0.40450 | $2022.50000 |
| 10000 | $0.35821 | $3582.10000 |
