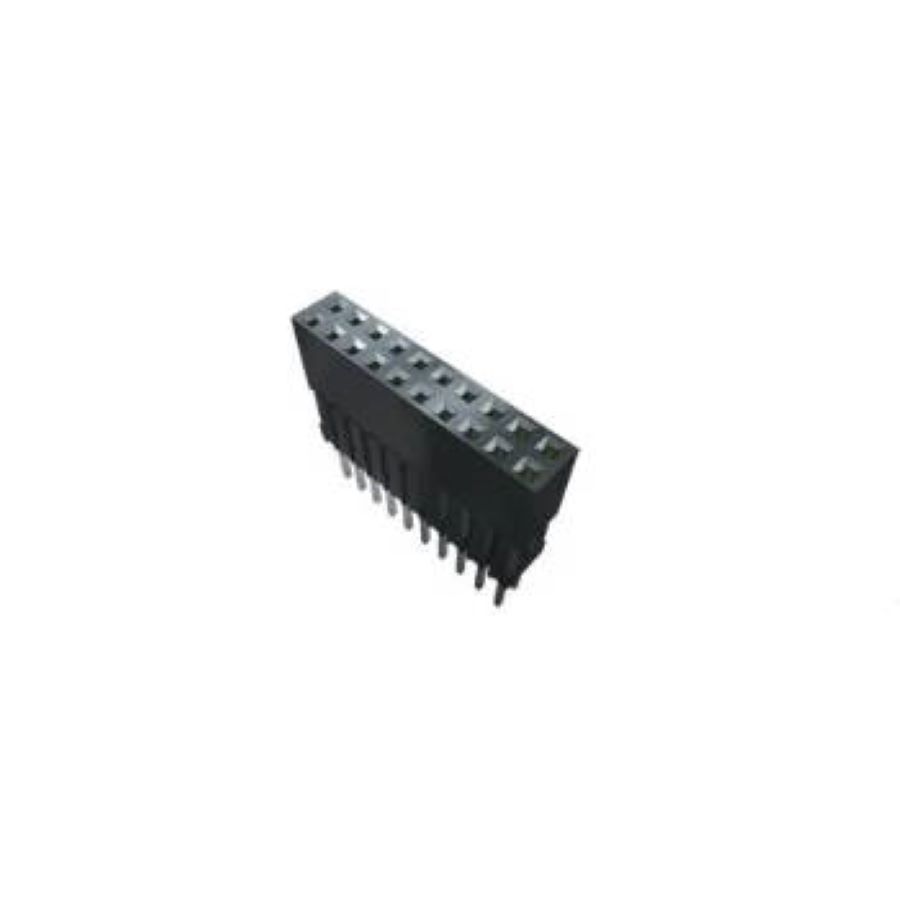

ESQ-110-12-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESQ-110-12-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Elevated Socket Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.91 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Elevated Socket |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.29 mm |
Stock: 75
Distributors
pcbx
pcbxUnit Price$2.64087
Ext.Price$2.64087
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.64087 | $2.64087 |
| 10 | $2.37439 | $23.74390 |
| 25 | $2.13480 | $53.37000 |
| 50 | $1.91939 | $95.96950 |
| 100 | $1.72571 | $172.57100 |
| 300 | $1.55158 | $465.47400 |
| 500 | $1.39502 | $697.51000 |
| 1000 | $1.25425 | $1254.25000 |
| 3000 | $1.12769 | $3383.07000 |
| 5000 | $1.01394 | $5069.70000 |
