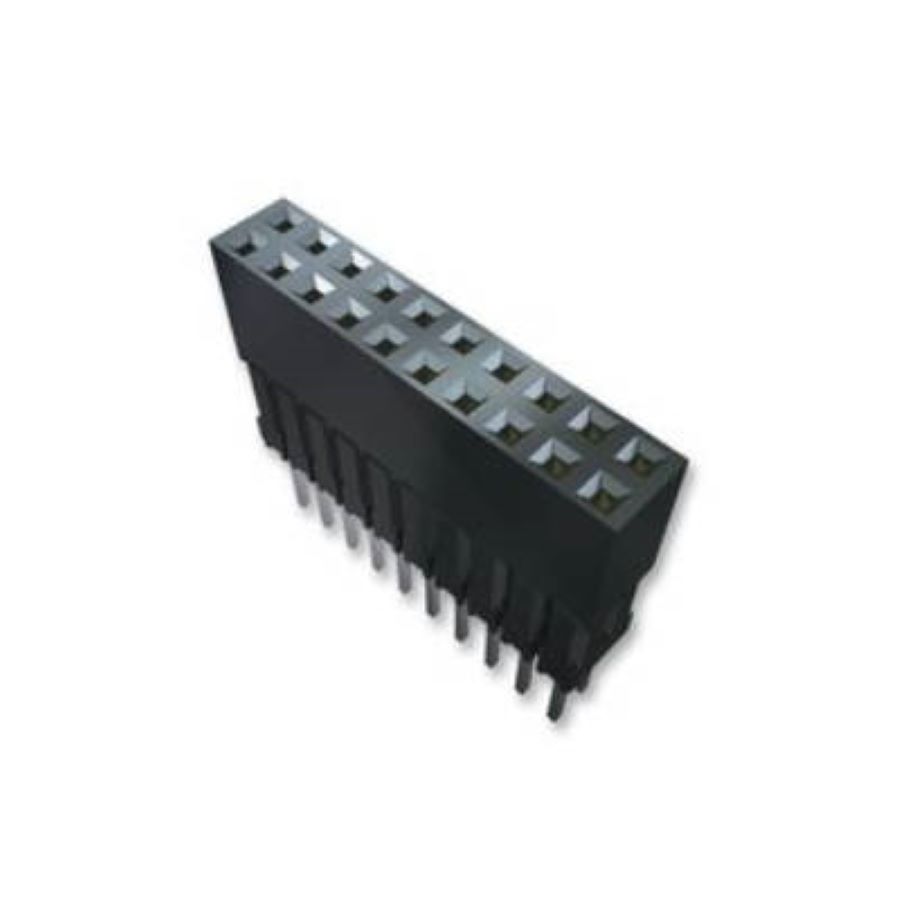

ESQ-120-23-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESQ-120-23-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.31 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 40 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 4.83 mm |
Stock: 219
Distributors
pcbx
pcbxUnit Price$5.61347
Ext.Price$5.61347
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.61347 | $5.61347 |
| 10 | $4.93102 | $49.31020 |
| 25 | $4.33154 | $108.28850 |
| 50 | $3.80494 | $190.24700 |
| 100 | $3.34236 | $334.23600 |
| 300 | $2.93602 | $880.80600 |
| 500 | $2.57908 | $1289.54000 |
| 1000 | $2.26556 | $2265.56000 |
