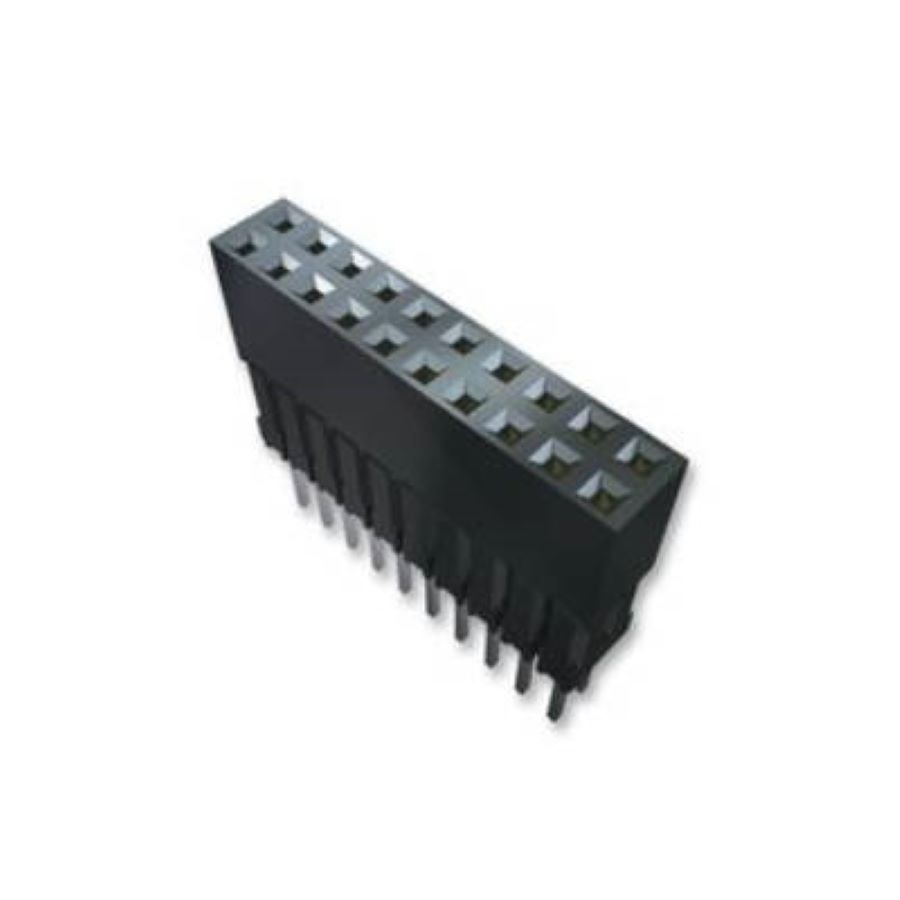

ESQ-120-23-T-D
Manufacturer:
Samtec
Mfr.Part #:
ESQ-120-23-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Elevated Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.31 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 40 |
| Connector Type | Elevated Socket |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 4.83 mm |
Stock: 494
Distributors
pcbx
pcbxUnit Price$3.19829
Ext.Price$3.19829
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.19829 | $3.19829 |
| 10 | $2.84631 | $28.46310 |
| 25 | $2.53307 | $63.32675 |
| 50 | $2.25430 | $112.71500 |
| 100 | $2.00621 | $200.62100 |
| 300 | $1.78542 | $535.62600 |
| 500 | $1.58893 | $794.46500 |
| 1000 | $1.41407 | $1414.07000 |
| 3000 | $1.25845 | $3775.35000 |
| 5000 | $1.11996 | $5599.80000 |
