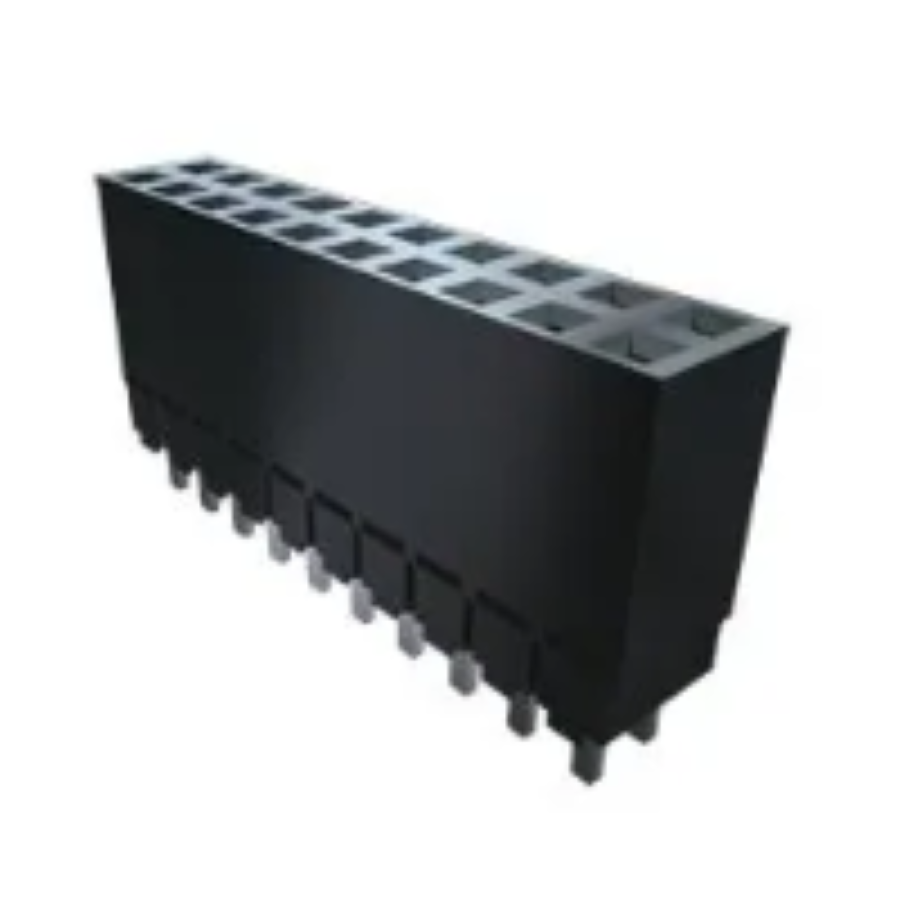

ESW-105-12-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESW-105-12-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 13.21 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 10 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
Stock: 36
Distributors
pcbx
pcbxUnit Price$1.80817
Ext.Price$1.80817
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.80817 | $1.80817 |
| 10 | $1.58203 | $15.82030 |
| 25 | $1.38418 | $34.60450 |
| 50 | $1.21107 | $60.55350 |
| 100 | $1.05961 | $105.96100 |
| 300 | $0.92709 | $278.12700 |
| 500 | $0.81114 | $405.57000 |
| 1000 | $0.70970 | $709.70000 |
| 3000 | $0.62094 | $1862.82000 |
| 5000 | $0.54328 | $2716.40000 |
| 10000 | $0.47534 | $4753.40000 |
