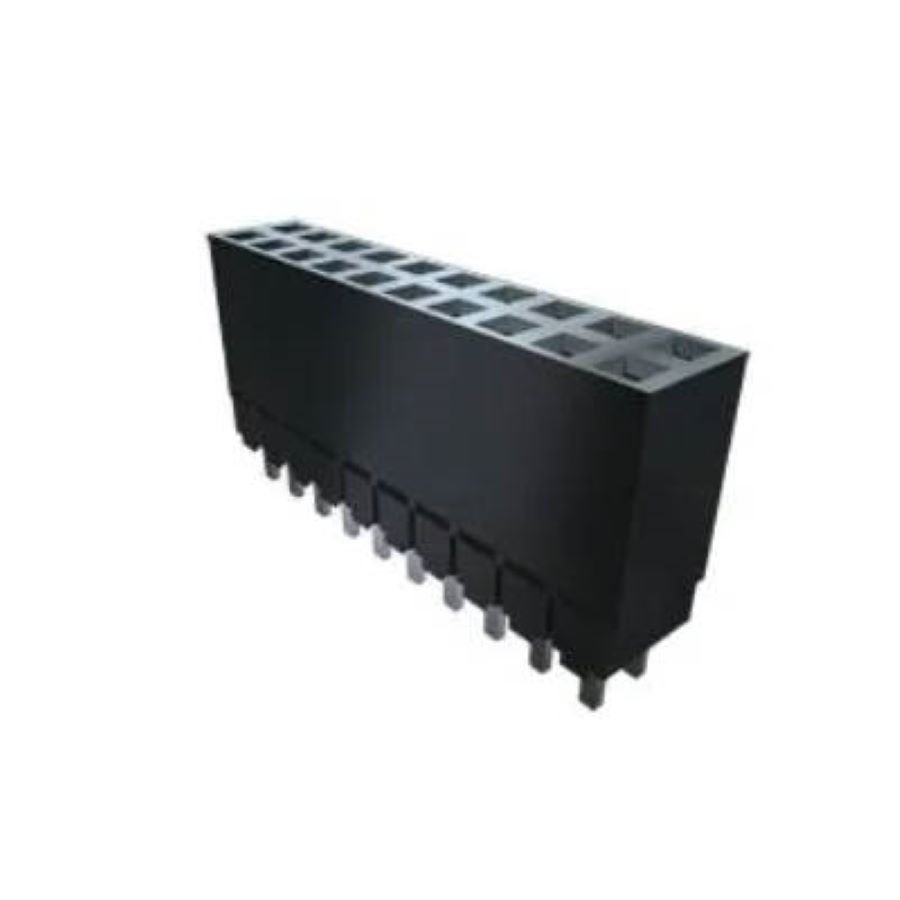

ESW-120-23-G-D
Manufacturer:
Samtec
Mfr.Part #:
ESW-120-23-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 51.31 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 6.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 40 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
Stock: 143
Distributors
pcbx
pcbxUnit Price$5.13813
Ext.Price$5.13813
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.13813 | $5.13813 |
| 10 | $4.44340 | $44.43400 |
| 25 | $3.84261 | $96.06525 |
| 50 | $3.32305 | $166.15250 |
| 100 | $2.87374 | $287.37400 |
| 300 | $2.48518 | $745.55400 |
| 500 | $2.14916 | $1074.58000 |
| 1000 | $1.85862 | $1858.62000 |
